Network module7Status LEDs3
USB mini-Type B (console) port4

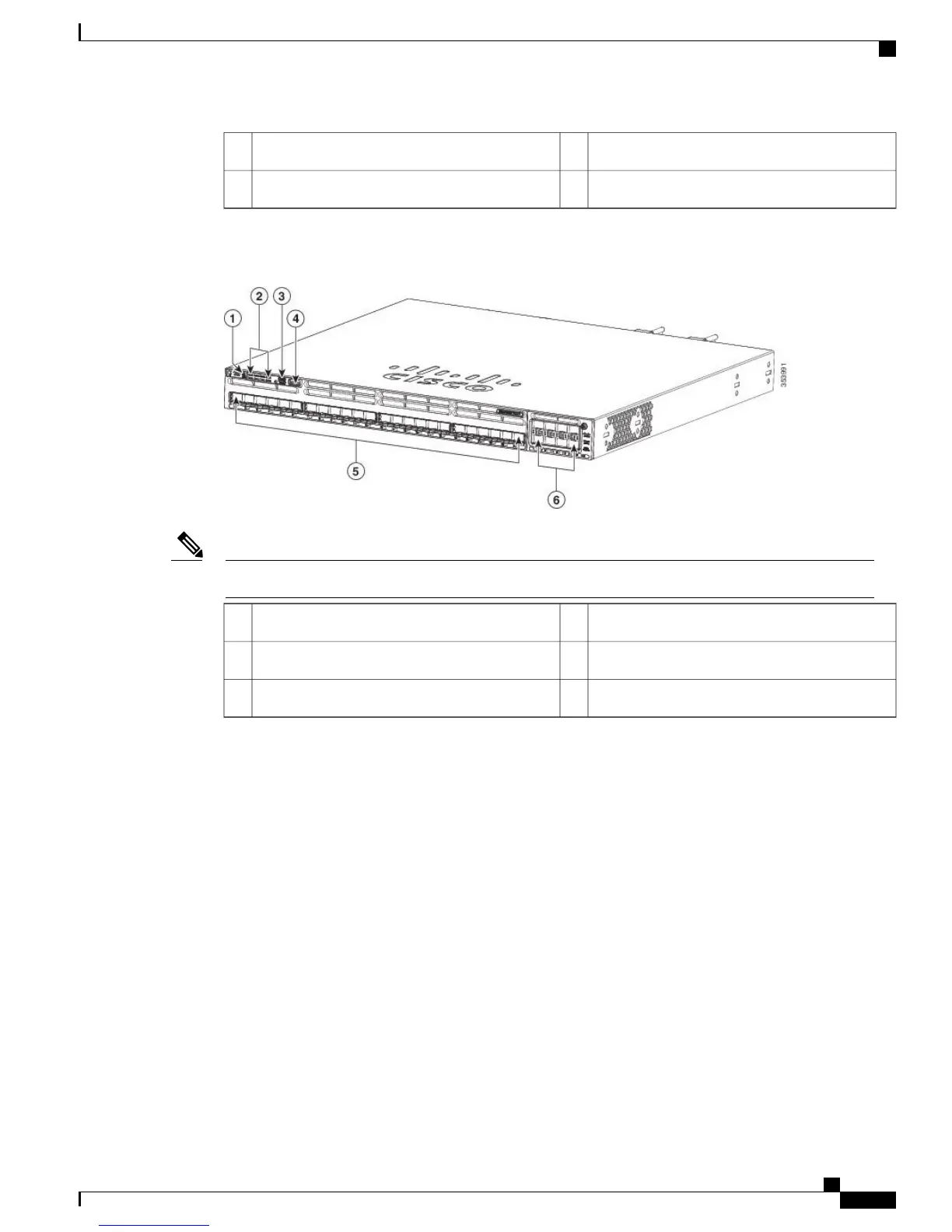

Figure 3: WS-C3850-24XS-E Switch Front Panel
The WS-C3850-24XS-E switches have the following components.Note
USB mini-Type B (console) port4Mode button1
10 G SFP+ ports5Status LEDs2
Network module6USB Type A storage port3
10/100/1000 Ports
The 10/100/1000 ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet
(100 meters). The 10BASE-T, 100BASE-TX, 1000BASE-T traffic requires Category 5 or Category 5e twisted
pair (UTP) cable. The 10BASE-T traffic can use Category 3 or Category 4 UTP cable.
PoE, PoE+, and Cisco UPoE Ports
The PoE+ and Cisco Universal Power Over Ethernet (Cisco UPoE) ports use the same connectors as described
in 10/100/1000 Port Connections. They provide:
•
PoE+ ports: Support for IEEE 802.3af-compliant powered devices (up to 15.4 W PoE per port) and
support for IEEE 802.3at-compliant powered devices (up to 30 W PoE+ per port). The maximum total
PoE power in a 1RU switch is 1800 W.
•
Support for Cisco-enhanced PoE.
Catalyst 3850 Switch Hardware Installation Guide
OL-26779-05 7
Product Overview
10/100/1000 Ports
