Appendix E 16 x D1 and 8 x D1 Video Capture Cards
Part Numbers
Step 4 Attach coaxial cables from the video cameras to the appropriate port on the BNC breakout panel.

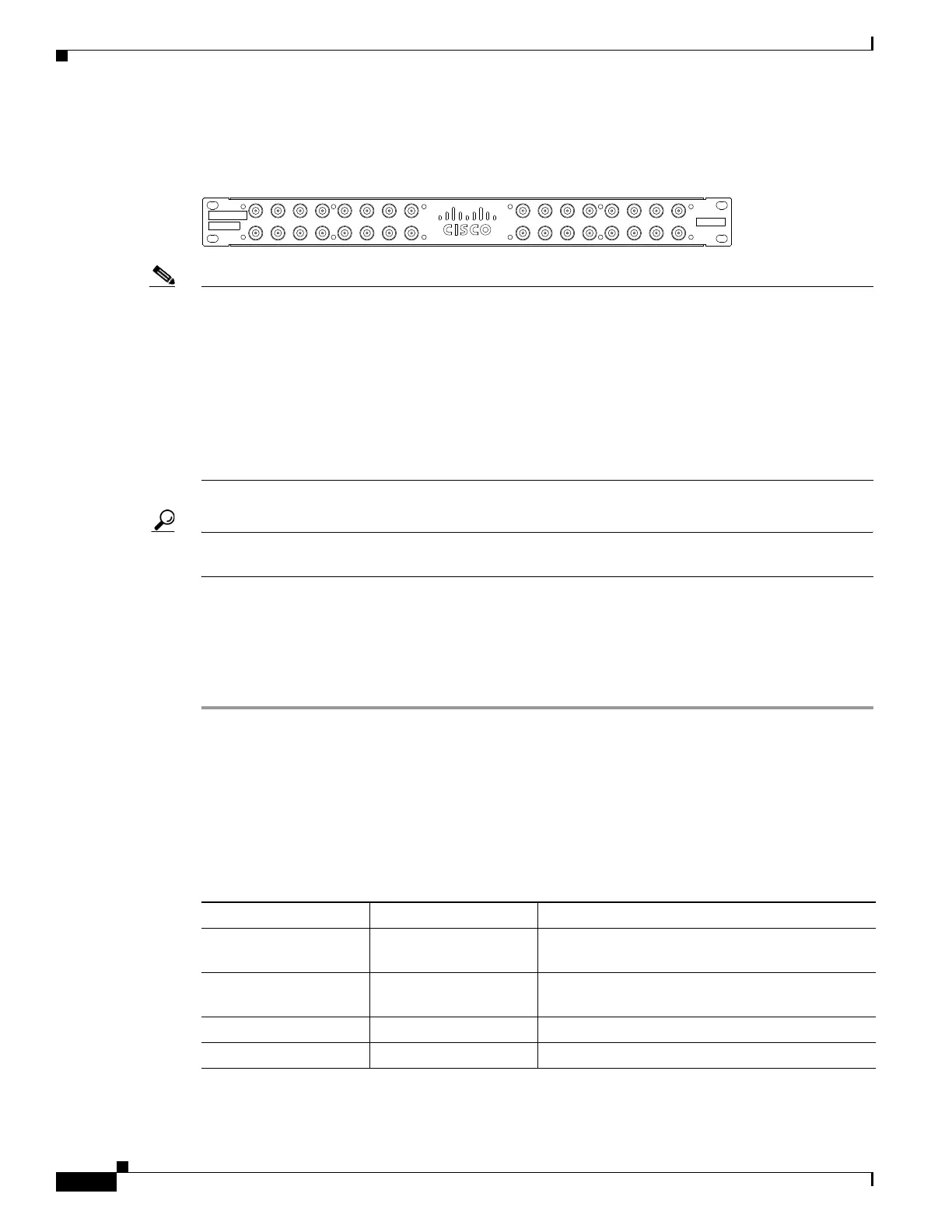

Figure E-10 Front of BNC Breakout Panel: BNC Connectors
Note • The video encoder channels are determined by the installed location of the card, not by the numbers
on the BNC panel. See the
“Understanding Video Channel Numbers” section on page E-6 for more
information. For example, if three video capture cards are installed in a 2-RU server, the bottom card
can be attached to the top connector of a second BNC panel. The channel numbers for this bottom
video are 33 to 48, even though the BNC panel shows ports 1 to 16.
• If the camera or coaxial cable is installed on the building exterior, the coaxial cable shield must be
connected to earth (grounded) at the entrance to the building. The shield connection should be done
in accordance with applicable national electrical installation codes. In the United States, this shield
connection is required by Section 820.93 of the National Electrical Code, ANSI/NFPA 70.
Tip Keep a record of the channel used for each camera. Use this record when configuring the cameras in
the Cisco VSM software.
Step 5 If the analog camera also includes PTZ controls, connect the camera serial cable to the Multiservices
Platform Series serial port, as described in the
“Connecting and Configuring Analog PTZ Cameras”
section on page E-14.
Step 6 Configure the cameras, channels and features as described in the “Managing Analog Cameras” and
“Managing Camera Feeds” sections in
Cisco Video Surveillance Manager User Guide.
Part Numbers
Table E-3 lists the part numbers for 16 x D1 and 8 x D1 video capture cards, the Multiservices Platform
Seriess that support the cards, and accessories that are used to connect video cameras to the card.
278119
12345678
17 18 19 20 21 22 23 24
910111213141516
25 26 27 28 29 30 31 32
Ta b l e E-3 Part Numbers
PID Item Description
CPS-MSP-1RU-K9 1-RU Multiservices
Platform Series
Supports a single 8 or 16 channel video capture
card.
CPS-MSP-2RU-K9 2-RU Multiservices
Platform Series
Supports up to three 8 or 16 channel video capture
cards.
CIVS-ENC-8P 8 channel encoder 8 x D1 video capture card.
CIVS-ENC-16P 16 channel encoder 16 x D1 video capture card.
