Cisco EPC3925 User Manual

16 4021192 Rev B
Back Panel Description
Back Panel Description

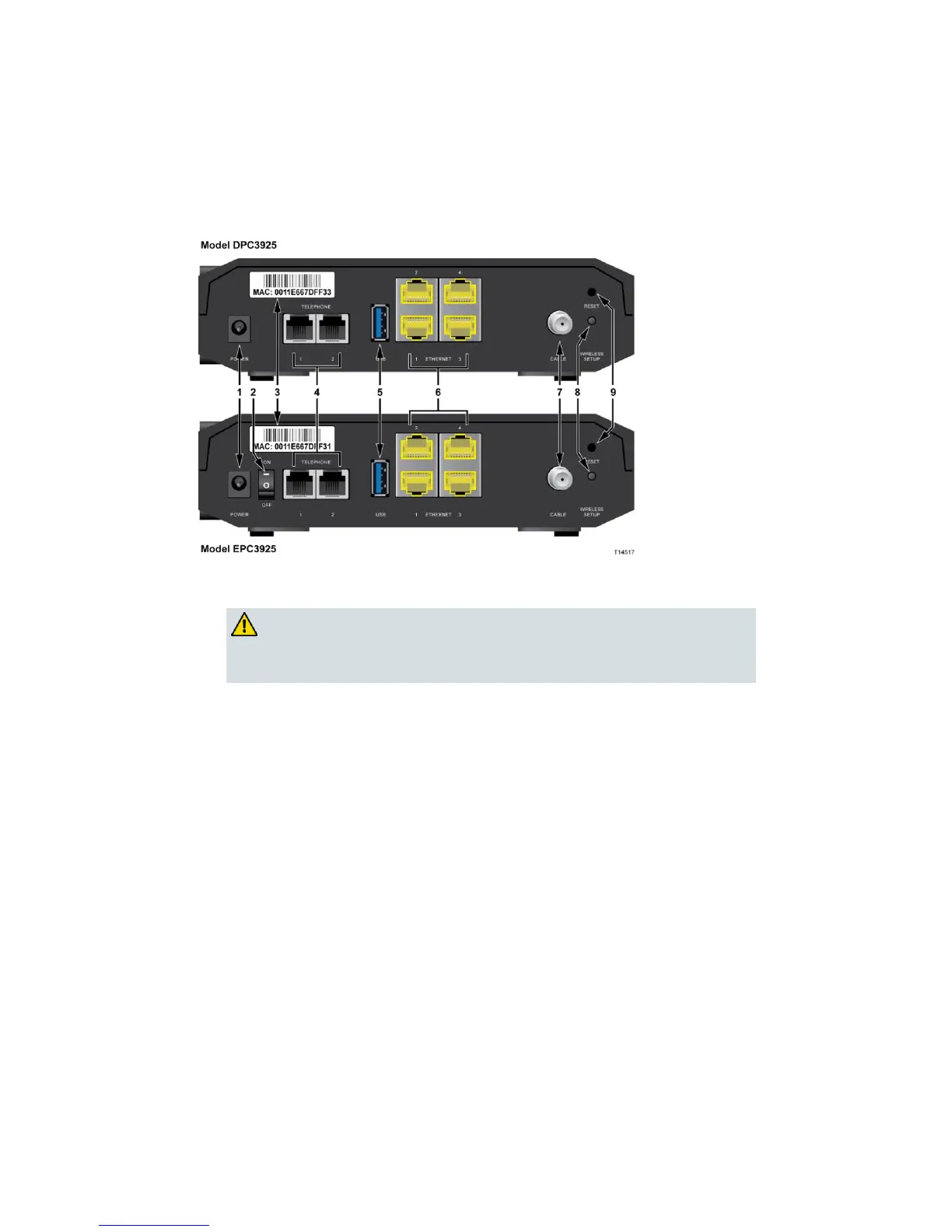

The following illustrations show the description and function of the back panel
components on the Cisco DPC3925 residential gateway.
1 POWER—Connects the residential gateway to the AC power adapter that is
provided with your residential gateway
CAUTION:
Avoid damage to your equipment. Only use the power supply
that is provided with your residential gateway.
2 ON/OFF SWITCH (European models only)—Allows you to power of the
residential gateway without removing the power cord
3 MAC ADDRESS LABEL—Displays the MAC address of the residential gateway
4 TELEPHONE 1 and 2—RJ-11 telephone ports connect to home telephone wiring
to conventional telephones or fax machines
5 USB—Connects to selected client devices
6 ETHERNET—Four RJ-45 Ethernet ports connect to the Ethernet port on your PC
or your home network
7 CABLE—F-connector connects to an active cable signal from your service
provider

Cisco EPC3925 Specifications

General

Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi	Yes
Modulation	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Frequency band	2.4 GHz
Networking standards	IEEE 802.11n
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Input current	1.5 A
Input voltage	15 V
Input frequency	50/60 Hz
Power requirements	230 VAC
Power consumption (typical)	17 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Voice codecs	G.711, G.723, G.726, G.728, G.729, G.729A

Weight and Dimensions

Weight	430 g
Dimensions (WxDxH)	176 x 145 x 45 mm
