Cisco EPC3925 User Manual

4021192 Rev B 83
Manage the Gateway

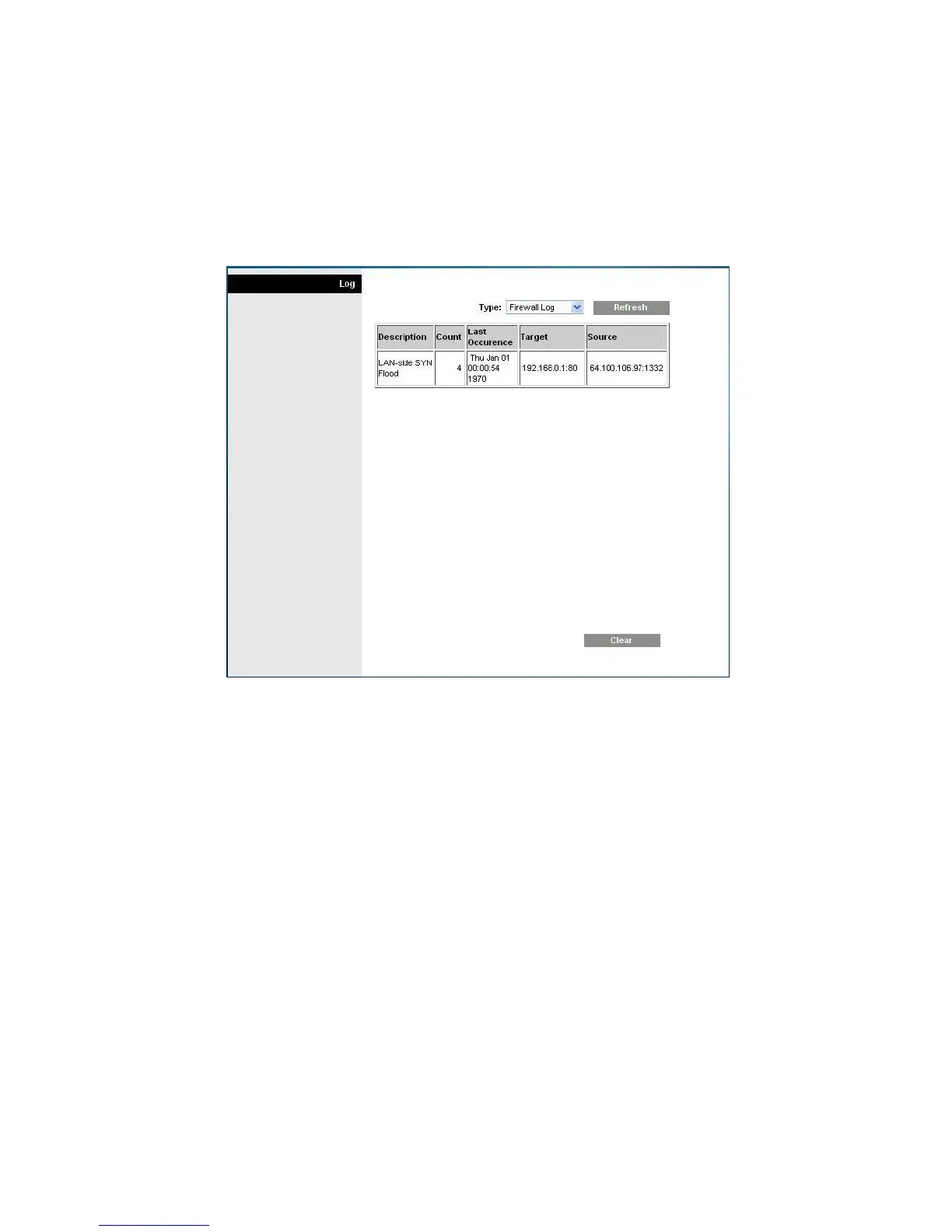

View Log
To view the logs, complete the following steps.
1 Click View Log. A new window opens with the log data page.
2 To view a particular log, select one of the following options from the Type drop-
down menu:
 All
 Access Log
 Firewall Log
 VPN Log
3 After the log data is displayed, use one of the following options:
 Click the Page Refresh button to update the log.
 Click the Clear button to clear all the information in the current log.
 Click the Previous Page button to go back to the information previously
displayed.
 Click the Next Page button to see the next section of the log, if available.

Cisco EPC3925 Specifications

General

Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi	Yes
Modulation	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Frequency band	2.4 GHz
Networking standards	IEEE 802.11n
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Input current	1.5 A
Input voltage	15 V
Input frequency	50/60 Hz
Power requirements	230 VAC
Power consumption (typical)	17 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Voice codecs	G.711, G.723, G.726, G.728, G.729, G.729A

Weight and Dimensions

Weight	430 g
Dimensions (WxDxH)	176 x 145 x 45 mm
