Cisco Firepower 1140 Getting Started

Cabling for the Firepower 1100

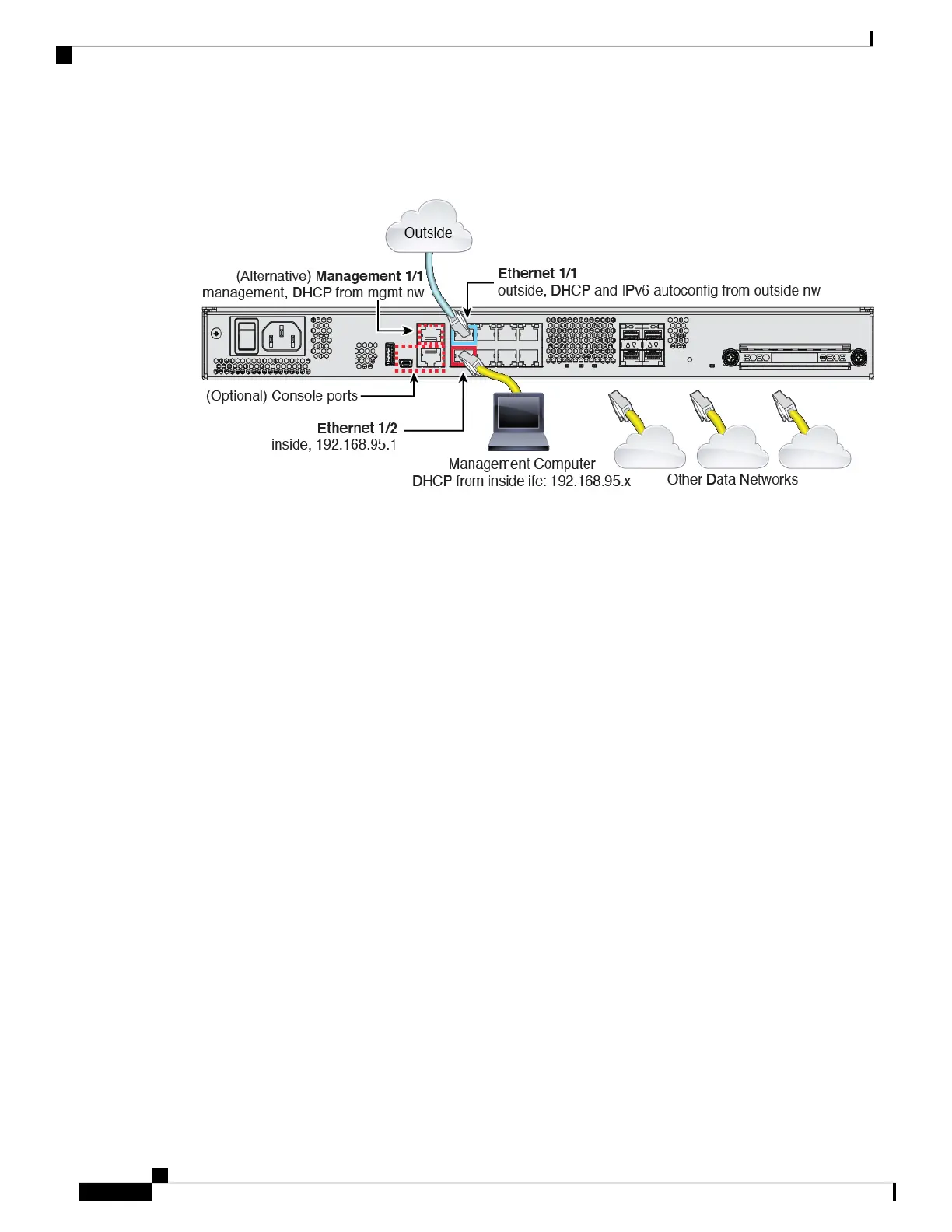

Figure 2: Cabling the Firepower 1100
• Connect your management computer to either of the following interfaces:
• Ethernet 1/2—Connect your management computer directly to Ethernet 1/2 for initial configuration,
or connect Ethernet 1/2 to your inside network. Ethernet 1/2 has a default IP address (192.168.95.1)
and also runs a DHCP server to provide IP addresses to clients (including the management computer),
so make sure these settings do not conflict with any existing inside network settings.
• Management 1/1 (labeled MGMT)—Connect your management computer to the management
network. The Management 1/1 interface obtains an IP address from DHCP, so make sure your
network includes a DHCP server.
If you need to change the Management 1/1 IP address from the default to configure a static IP
address, you must also cable your management computer to the console port. See (Optional) Change
Management Network Settings at the CLI, on page 21.
You can later configure management access from other interfaces.
• Connect the outside network to the Ethernet1/1 interface (labeled WAN).
By default, the IP address is obtained using IPv4 DHCP and IPv6 autoconfiguration, but you can set a
static address during initial configuration.
• Connect other networks to the remaining interfaces.
Getting Started
14
Getting Started
Cabling for the Firepower 1100

Cisco Firepower 1140 Specifications

General

Processor cores	16
Processor family	Intel
Built-in processor	Yes
Firewall throughput	2200 Mbit/s
IPSec VPN throughput	1.2 Gbit/s
Maximum firewall connections	400000
Maximum firewall connections per second	100000
Wi-Fi	No
Supported network protocols	SMTP
Console port	RJ-45
Connectivity technology	Wired
SFP module slots quantity	4
Ethernet LAN (RJ-45) ports	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
SSD capacity	200 GB
Storage media type	SSD
Form factor	1U
Input current	2 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	100 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Country of origin	Mexico
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	1409.7 mm
Package width	990.6 mm
Package height	457.2 mm
Package weight	5782.31 g

Weight and Dimensions

Depth	436.9 mm
Width	268.7 mm
Height	43.7 mm
