Step 2
Connect
the
PoE
IN
cable
to
the
PoE
IN
port,
or
the
PoE
OUT
cable
to
the
PoE
OUT
port
by
turning
the
cable
clockwise,
as
shown
in
the
following
figure.

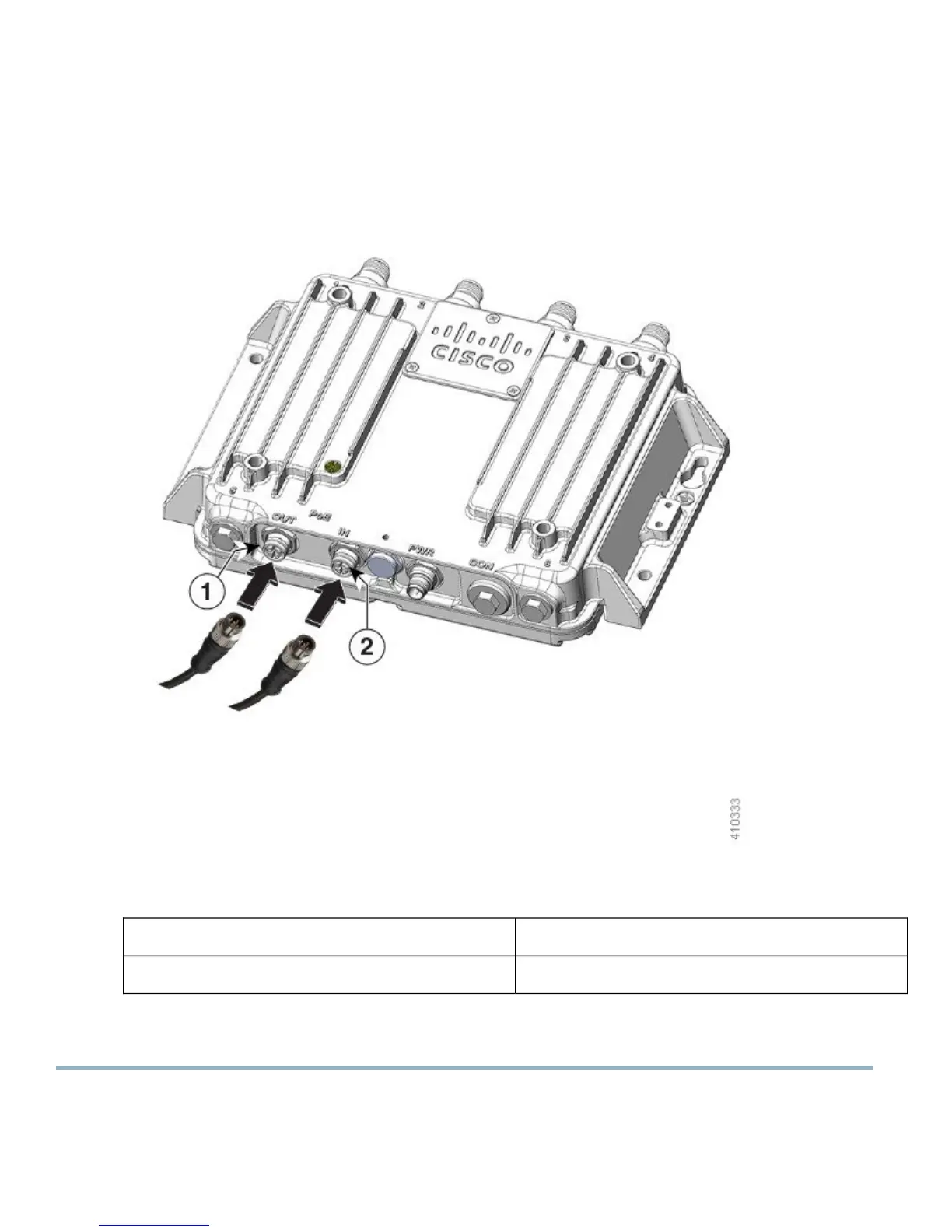

Figure 8: Connecting to the PoE IN or PoE OUT Ports
PoE
OUT
cable
1
PoE
IN
cable
2
When
powered
over
the
PoE
IN
port,
PoE
OUT
functionality
is
not
supported.
Note
24
23
25
