Cisco NCS 5501 User Manual

SignalRJ-45 Pin
Ground (GND)4
GND5
Rx6
—
7
—
8
Connect to the Management Ethernet Port
The management Ethernet port provides out-of-band management, which enables you to use the command-line
interface (CLI) to manage the router by its IP address. This port uses a 10/100/1000 Ethernet connection with
an RJ-45 interface.
To prevent an IP address conflict, do not connect the management Ethernet port until the initial configuration
is complete.
Note
To connect cables to the system management port, attach Category 5 cables directly to the RJ-45 receptacle
on the management Ethernet port.

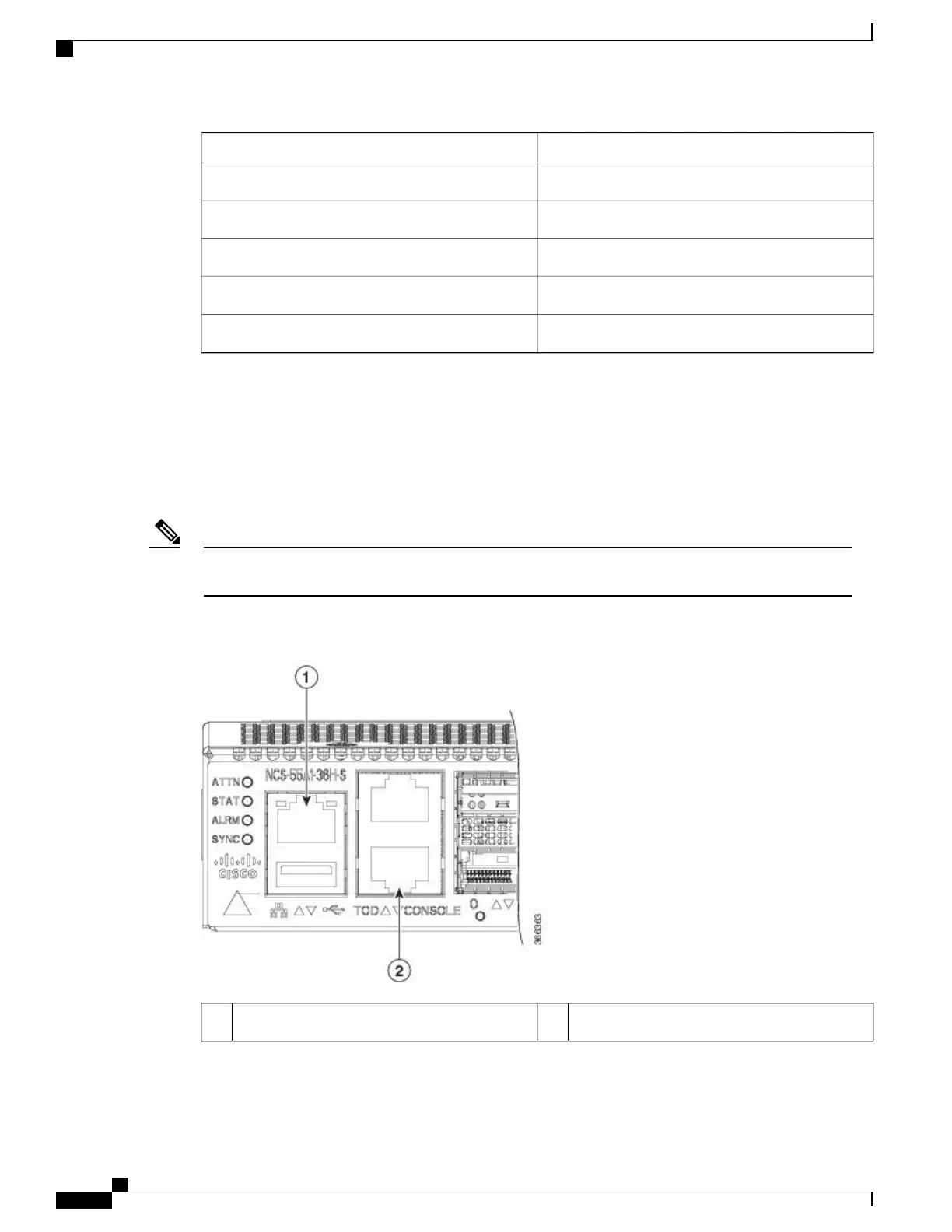

Console port2Management Ethernet port1
Hardware Installation Guide for Cisco NCS 5500 Series Fixed-Port Routers
36
Connect Router to the Network
Connect to the Management Ethernet Port

Cisco NCS 5501 Specifications
