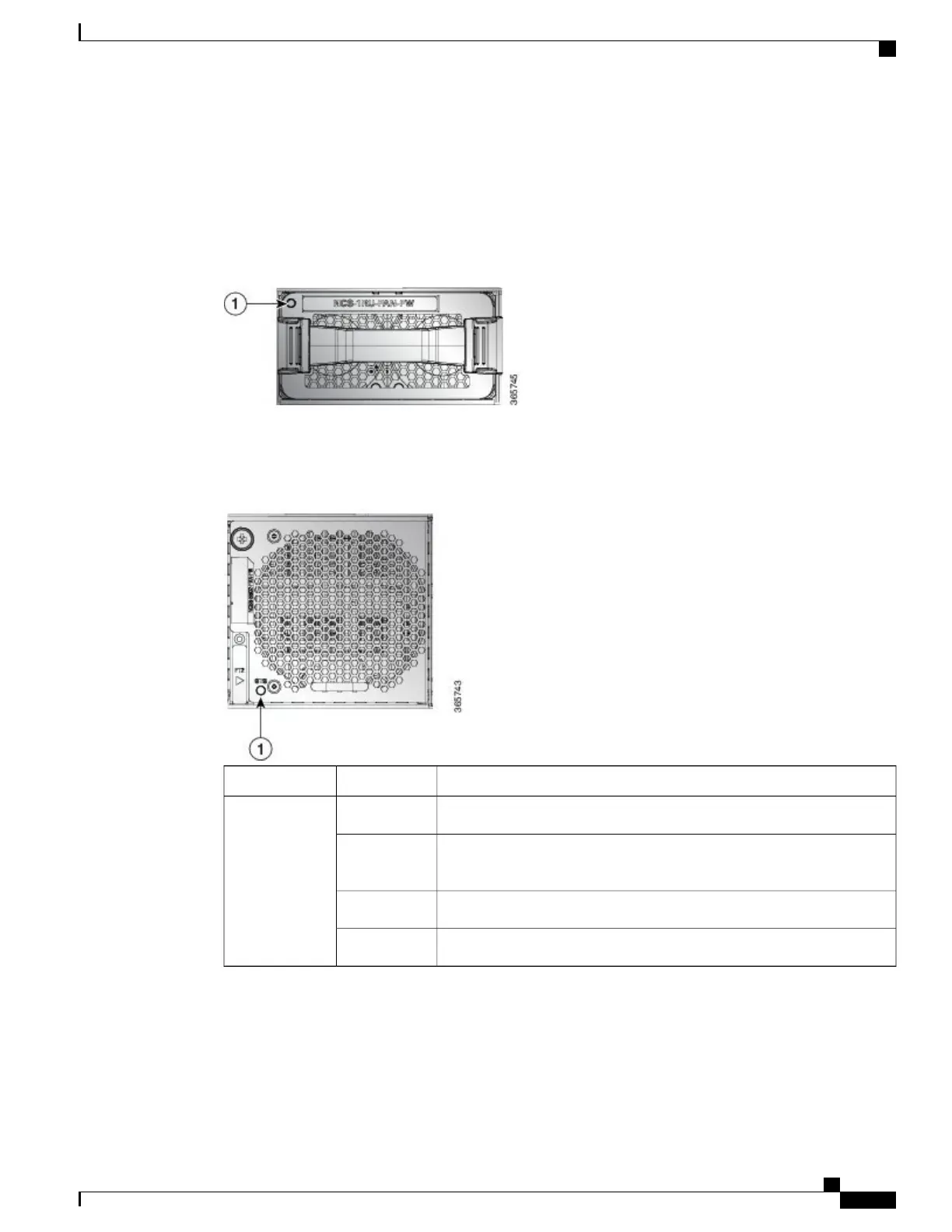

Fan Tray LED
NCS-55A1-24H, NCS 55A1-36H-S, NCS 5501 and NCS 5501 SE Fan Tray LED
Fan tray modules are located on the back side of the chassis. Each NCS-55A1-24H, NCS 55A1-36H-S, NCS
5501, and NCS 5501 SE fan tray module has a Status LED.
NCS 5502 Fan Tray LED
Fan tray modules are located on the back side of the chassis. Each NCS 5502 fan tray module has a Status
LED.
StatusColorLED
Fans are operating normally.GreenSTATUS
One or more fans are failed.Flashing
Amber
Fan tray is inserted and pending to come online.Amber
Fan tray is not receiving power.Off
Hardware Installation Guide for Cisco NCS 5500 Series Fixed-Port Routers
71
LEDs
Fan Tray LED
