Installing a Bale Clasp SFP or SFP+ Module
To install this type of SFP or SFP+ module, follow these steps:
Step 1
Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2
Close the bale clasp before inserting the SFP module.
Step 3
Line up the SFP module with the port and slide it into the port (see the figure below).

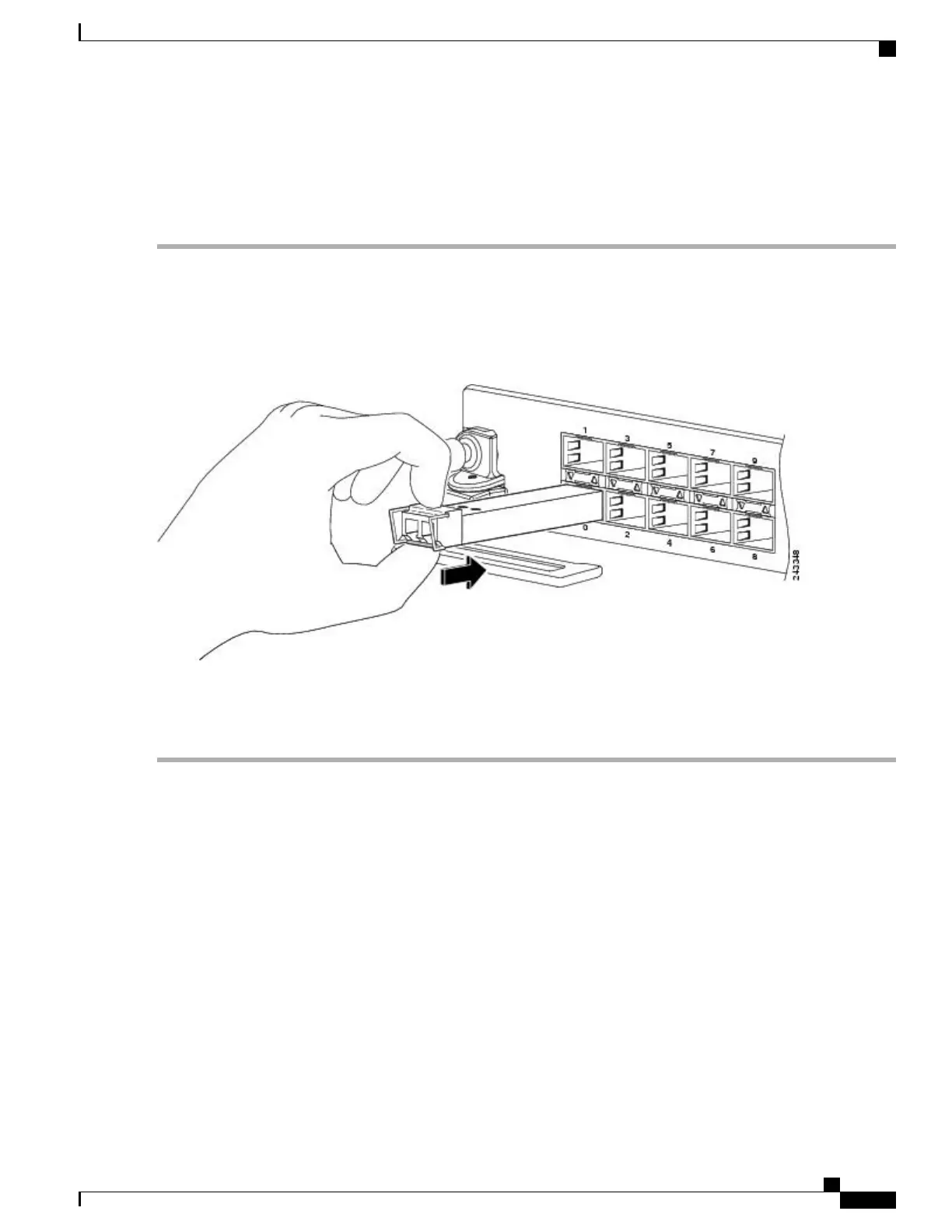

Figure 21: Installing a Bale Clasp SFP Module into a Port
When installing an SFP or SFP+ module, you should hear a click as the triangular pin on the bottom of the SFP
module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the
receptacle. Verify that the SFP modules are completely seated and secured in their assigned receptacles on the
line card by firmly pushing on each SFP module.
Note
Hardware Installation Guide for Cisco NCS 5500 Series Fixed-Port Routers
41
Connect Router to the Network
Installing and Removing SFP Modules
