B-7

Cisco UCS C22 Server Installation and Service Guide

OL-26646-01

Appendix B Power Cord Specifications

Supported Power Cords and Plugs

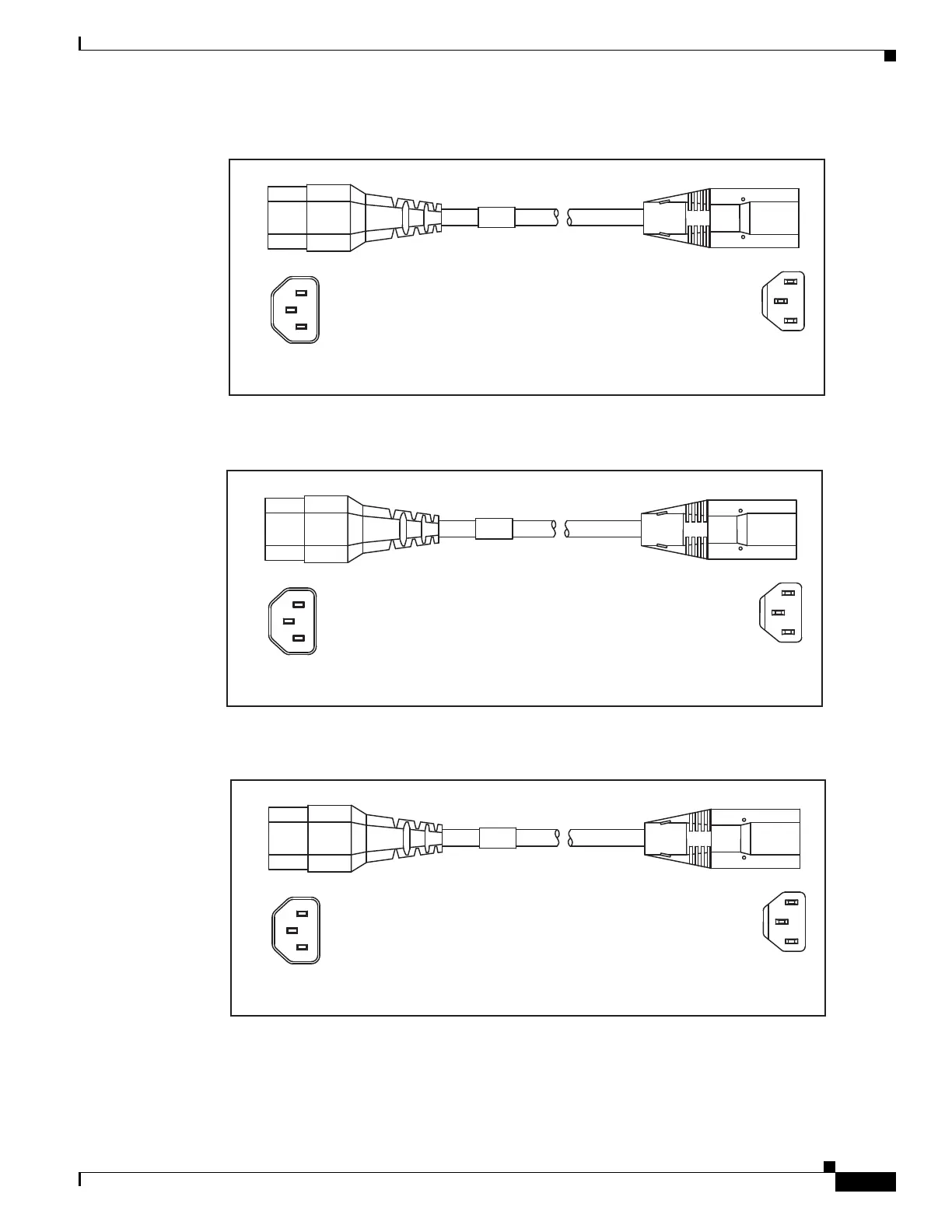

Figure B-13 CAB-C13-CBN, Jumper Power Cord (0.68 m)

Figure B-14 CAB-C13-C14-2M, Jumper Power Cord (2 m)

Figure B-15 CAB-C13-C14-AC, Jumper Power Cord (3 m)

Cordset rating 10A, 250V

(686mm)

Plug:

SS10A

186569

Connector:

HS10S

Cordset rating 10A, 250V

(2.0 m)

Plug:

SS10A

336014

Connector:

HS10S

Cordset rating 10A, 250V

(3.0 m)

Plug:

SS10A

336013

Connector:

HS10S
