Cisco UCS C240 User Manual

3-40
Cisco UCS C240 Server Installation and Service Guide
OL-25761-01
Chapter 3 Maintaining the Server
Installing or Replacing Server Components
Replacing a PCIe Card
Caution Cisco supports all PCIe cards qualified and sold by Cisco. PCIe cards not qualified or sold by Cisco are
the responsibility of the customer. Although Cisco will always stand behind and support the C-Series
rack-mount servers, customers using standard, off-the-shelf, third-party cards must go to the third-party
card vendor for support if any issue with that particular third-party card occurs.
This section includes the following topics:
• PCIe Slots, page 3-40
• Replacing a PCIe Card, page 3-41
• Special Considerations for Cisco UCS Virtual Interface Cards, page 3-43
• Special Considerations for Cisco UCS Fusion ioDrive2 Storage Accelerator Cards, page 3-43
• RAID Controller Card Cable Routing, page 3-45
• Installing Multiple PCIe Cards and Resolving Limited Resources, page 3-46
PCIe Slots
The server contains two toolless PCIe risers for horizontal installation of PCIe cards. See Figure 3-23
and Table 3-7.

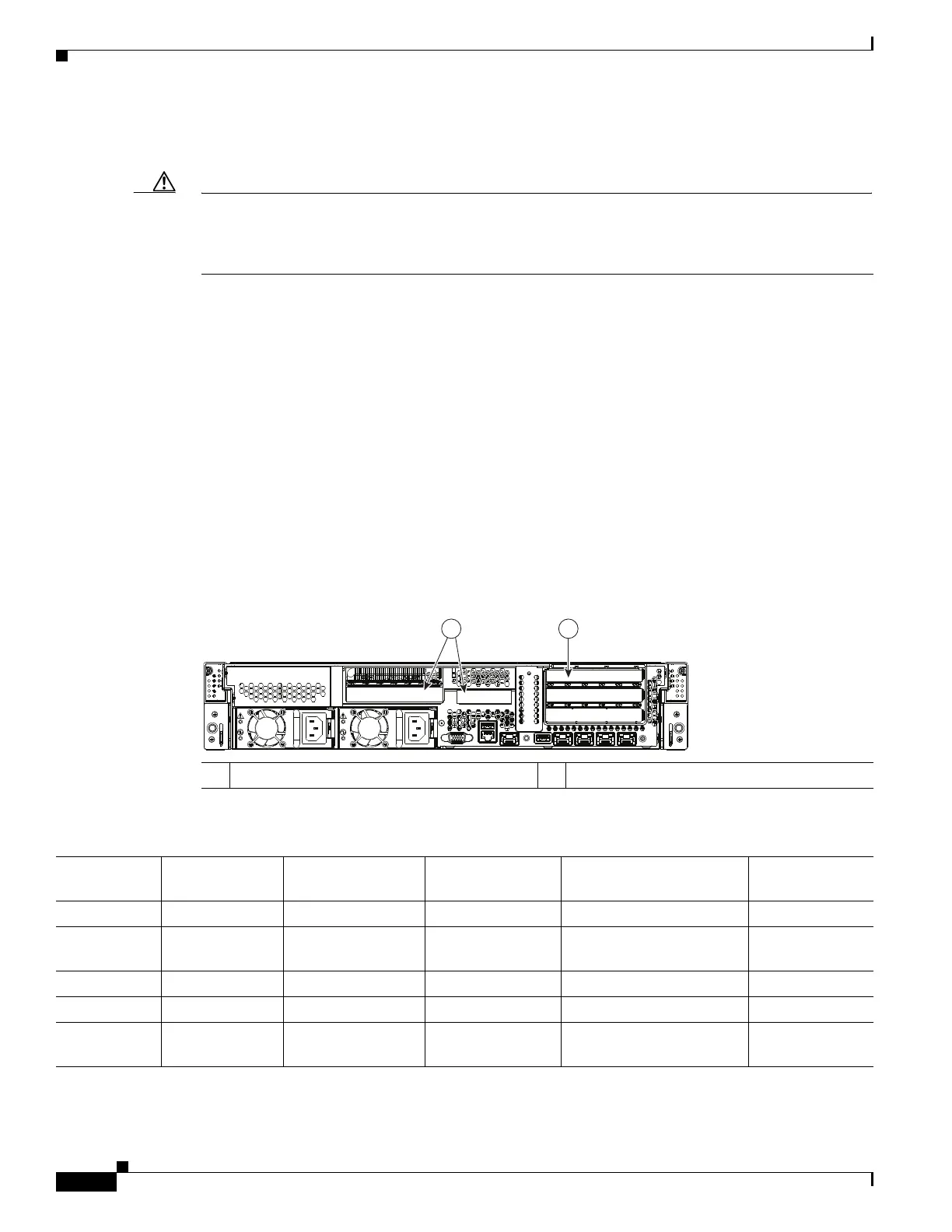

Figure 3-23 Rear Panel PCIe Slots
1 PCIe riser 1 (slots 1, 2, and 3) 2 PCIe riser 2 (slots 4 and 5)
Table 3-7 PCIe Expansion Slots
Slot Number
Electrical
Lane Width Connector Length Card Length
1
1. This is the supported length because of internal clearance.
Card Height
2
2. This is the size of the rear panel opening.
NCSI
3
Support
1
Gen-3 x8 x16 connector 3/4 length Full-height No
2 Gen-3 x16 x24 extended 3/4 length
(10.5 in./26.67 cm)
Full-height Yes
4
3 Gen-3 x8 x16 connector 1/2 length Full-height No
4
5
Gen-3 x8 x16 connector 1/2 length Half-height No
5
6
Gen-3 x16 x24 extended 3/4 length
10.5 in./26.67 cm)
Full-height, also
supports double-width cards
Yes
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
1
2
331841
