Installing a DIMM or DIMM Blank
33
Installing a DIMM or DIMM Blank
To install a DIMM or a DIMM blank into a slot on the blade server, follow these steps.
Procedure
Step 1 Open both DIMM connector latches.
Step 2 Press evenly on both ends of the DIMM until it clicks into place in its slot
Note: Ensure that the notch in the DIMM aligns with the slot. If the notch is misalignment is
possible damage the DIMM, the slot, or both.
Step 3 Press the DIMM connector latches inward slightly to seat them fully.
Step 4 Populate all slots with a DIMM or DIMM blank. A slot cannot be empty.

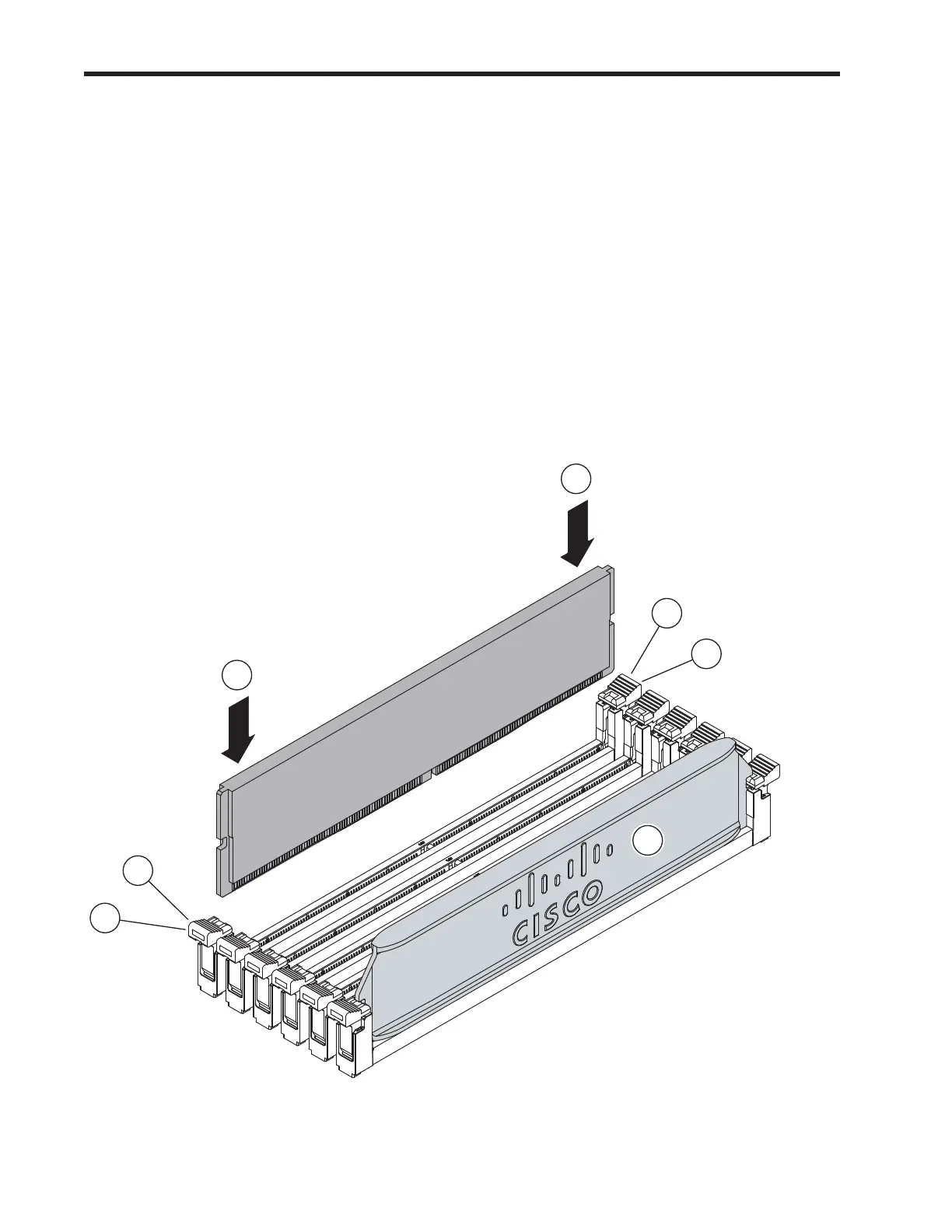

Figure 4 Installing Memory
306040
3
5
5
3
4
4
4
