Attaching the Brackets for Wall-Mounting
Procedure
Step 1
Attach a 19-inch bracket to one side of the switch.
Step 2
Follow the same steps to attach the second bracket to the opposite side.

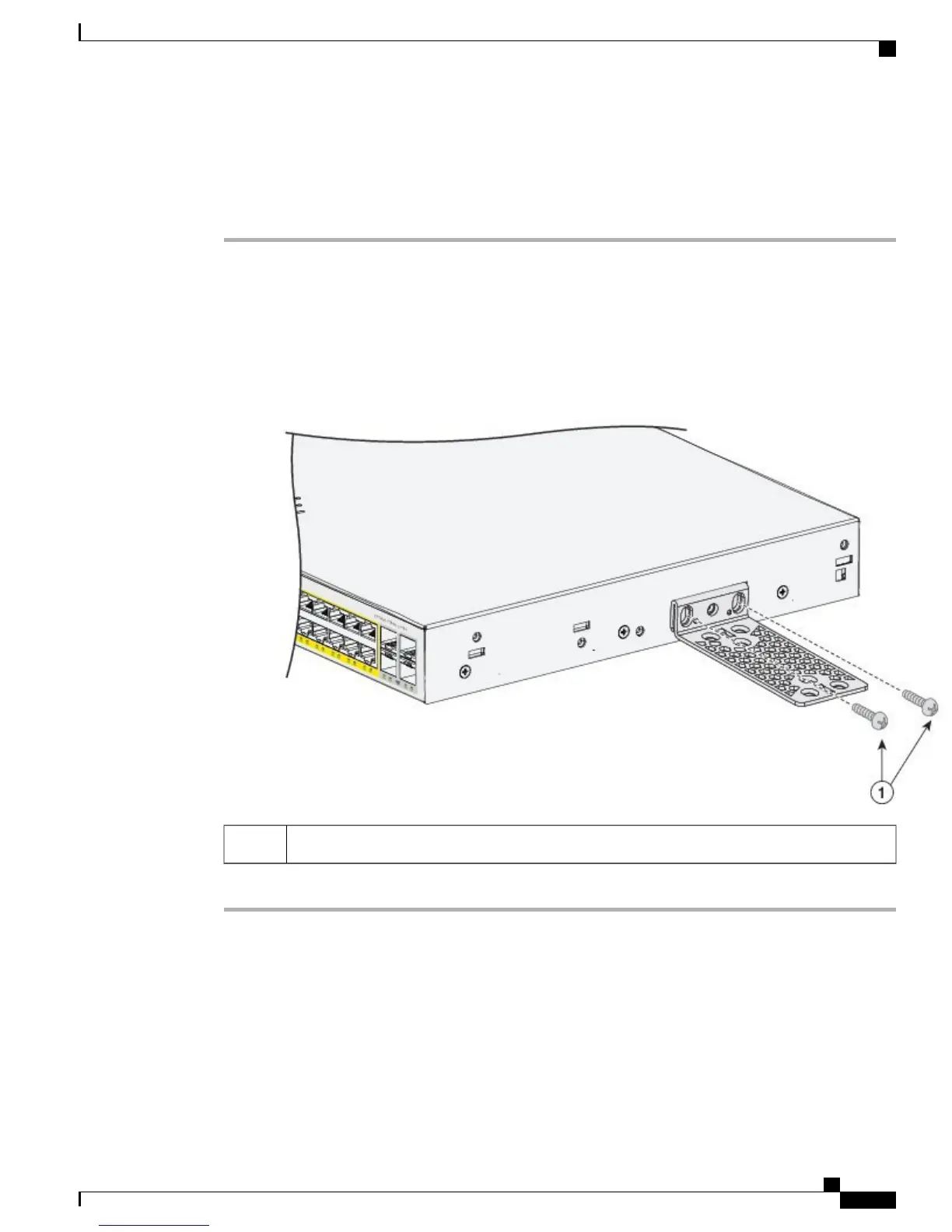

Figure 12: Attaching the 19-inch Brackets for Wall-Mounting
Number-8 phillips flat-head screws (48-2927-01)1
Mounting on a Wall
For the best support of the switch and cables, make sure that the switch is attached securely to wall studs or
to a firmly attached plywood-mounting backboard. Mount the switch with the front panel facing down.
Cisco Catalyst 2960-L Series 24-Port and 48-Port Switch Hardware Installation Guide
23
Switch Installation
Wall-Mounting
