Cable Pinouts

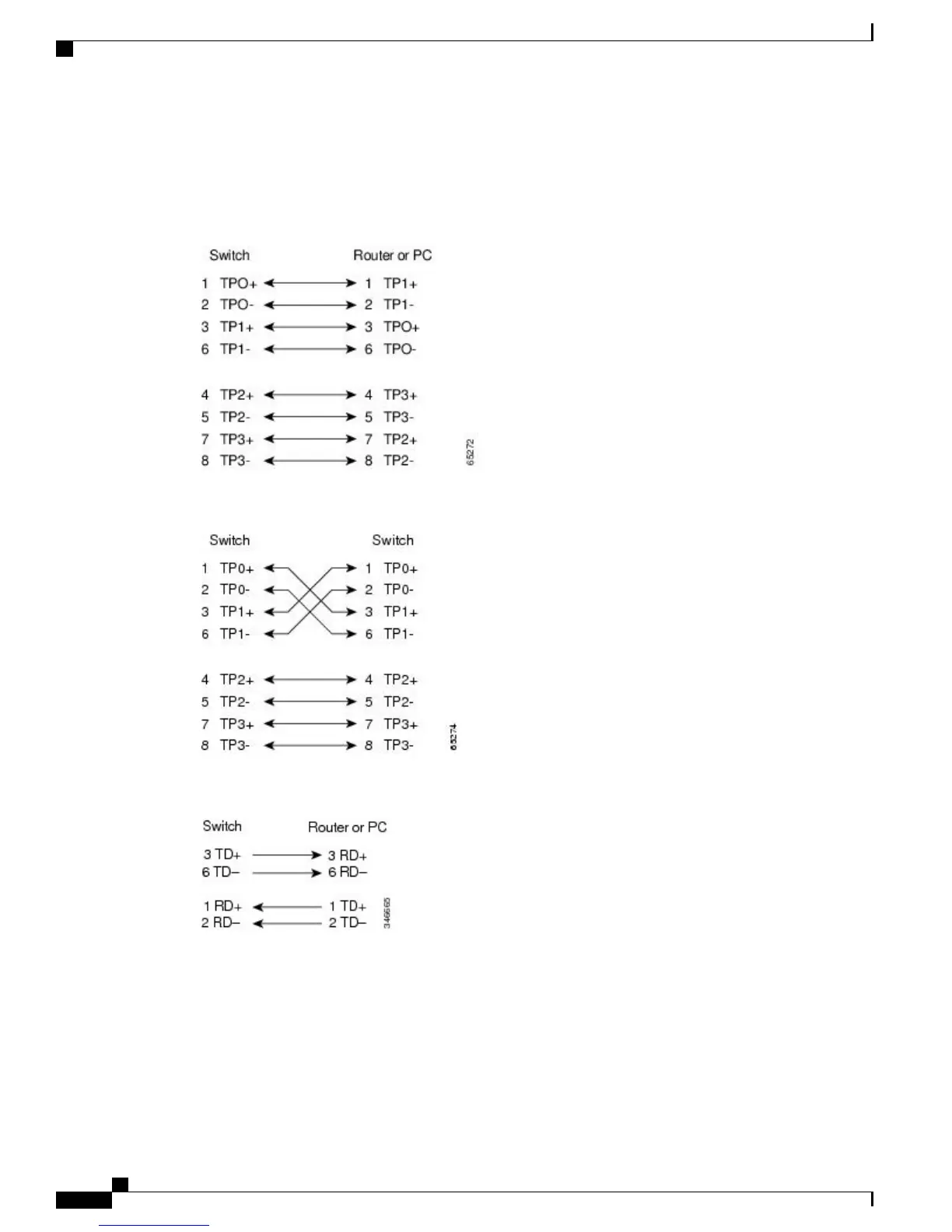

Figure 27: Four Twisted-Pair Straight-Through Cable Schematic
Figure 28: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 29: Two Twisted-Pair Straight-Through Cable Schematic
Figure 30: Two Twisted-Pair Crossover Cable Schematic
Cisco Catalyst 2960-L Series 24-Port and 48-Port Switch Hardware Installation Guide
48
Connector and Cable Specifications
Cable Pinouts
