Clarion APA5241 User Manual

OPERATION/INSTALLATION MANUAL
3-Channel Satellite Stereo System
FRONT PANEL SETTINGS

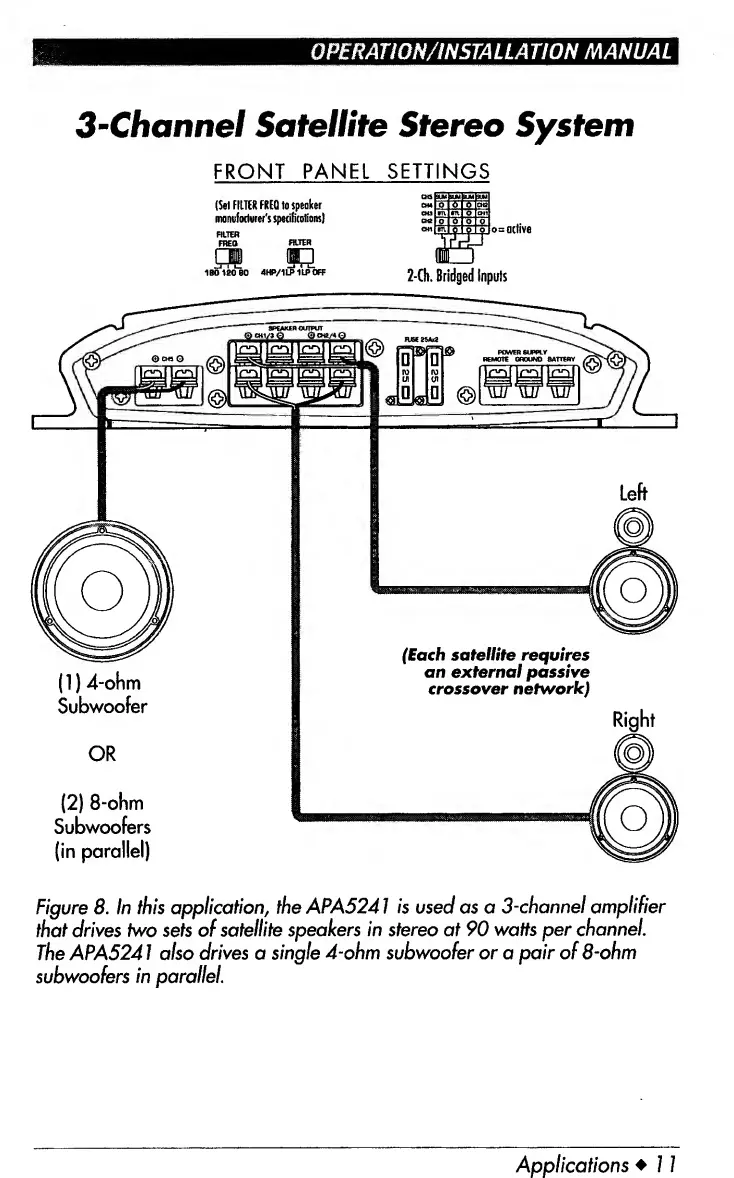

Figure 8. In this application, the APA5241 is used as a 3-channel amplifier
that drives two sets of satellite speakers in stereo at 90 watts per channel.
The APA5241 also drives a single 4-ohm subwoofer or a pair of 8-ohm
subwoofers in parallel.
Applications ♦ 11

Clarion APA5241 Specifications

Power Specifications

maximum power output	550 watts
continuous average power output (channels 1-4)	35 watts x 4 into 4 ohms
continuous average power output (bridged)	90 watts x 2 into 4 ohms
continuous average power output (channel 5)	100 watts x 1 into 4 ohms

Performance Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Electrical Specifications

current use	< 45 amps
speaker load capacity (channels 1-4)	2 ohms stereo
speaker load capacity (channel 5)	4 ohms mono

Weight and Dimensions

dimensions	230 mm x 47.5 mm x 400 mm
