OPERATION/INSTALLATION MANUAL
Connections for Speakers/Power

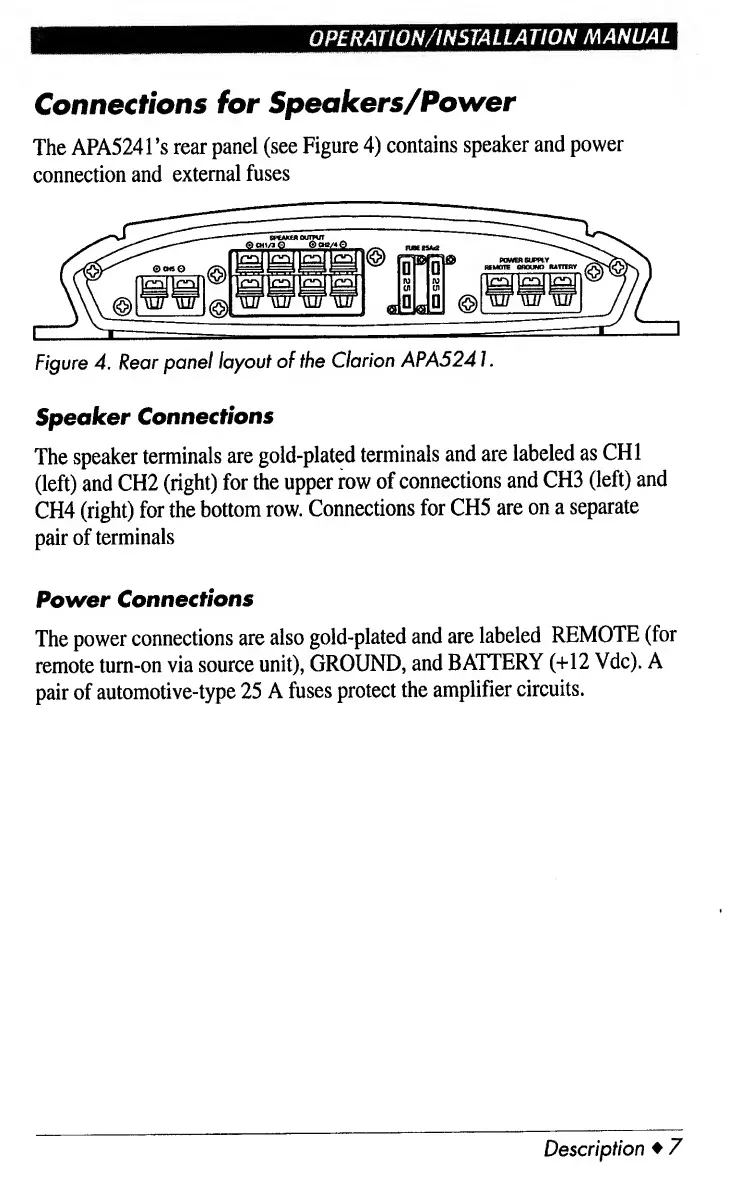

The APA5241’s rear panel (see Figure 4) contains speaker and power
connection and external fuses
Speaker Connections
The speaker terminals are gold-plated terminals and are labeled as CHI
(left) and CH2 (right) for the upper row of connections and CH3 (left) and
CH4 (right) for the bottom row. Connections for CH5 are on a separate
pair of terminals
Power Connections
The power connections are also gold-plated and are labeled REMOTE (for
remote turn-on via source unit), GROUND, and BATTERY (+12 Vdc). A
pair of automotive-type 25 A fuses protect the amplifier circuits.
Description ♦ 7

Clarion APA5241 Specifications

Power Specifications

maximum power output	550 watts
continuous average power output (channels 1-4)	35 watts x 4 into 4 ohms
continuous average power output (bridged)	90 watts x 2 into 4 ohms
continuous average power output (channel 5)	100 watts x 1 into 4 ohms

Performance Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Electrical Specifications

current use	< 45 amps
speaker load capacity (channels 1-4)	2 ohms stereo
speaker load capacity (channel 5)	4 ohms mono

Weight and Dimensions

dimensions	230 mm x 47.5 mm x 400 mm
