OPERATION/INSTALLATION MANUAL

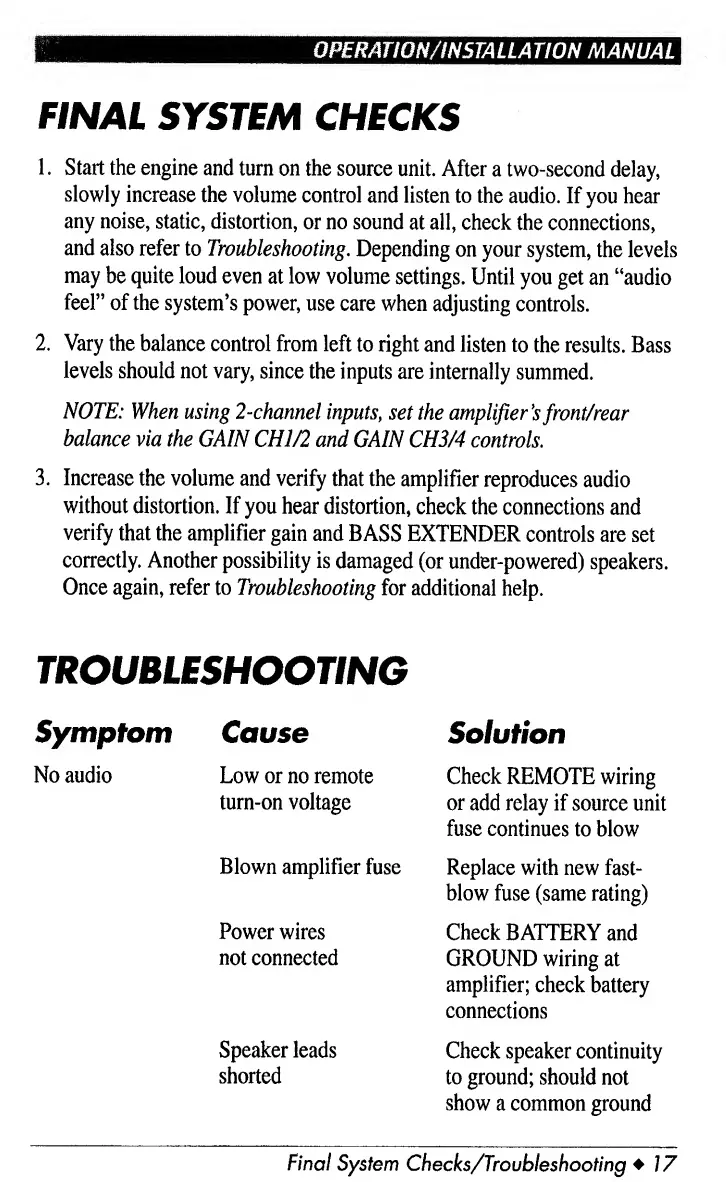

FINAL SYSTEM CHECKS
1. Start the engine and turn on the source unit. After a two-second delay,
slowly increase the volume control and listen to the audio. If you hear
any noise, static, distortion, or no sound at all, check the connections,
and also refer to Troubleshooting. Depending on your system, the levels
may be quite loud even at low volume settings. Until you get an “audio
feel” of the system’s power, use care when adjusting controls.
2. Vary the balance control from left to right and listen to the results. Bass
levels should not vary, since the inputs are internally summed.
NOTE: When using 2-channel inputs, set the amplifier’s front/rear
balance via the GAIN CHI/2 and GAIN CH3/4 controls.
3. Increase the volume and verify that the amplifier reproduces audio
without distortion. If you hear distortion, check the connections and
verify that the amplifier gain and BASS EXTENDER controls are set
correctly. Another possibility is damaged (or under-powered) speakers.
Once again, refer to Troubleshooting for additional help.
TROUBLESHOOTING
Symptom
Cause
Solution
No audio
Low or no remote
turn-on voltage
Check REMOTE wiring
or add relay if source unit
fuse continues to blow
Blown amplifier fuse
Replace with new fast-
blow fuse (same rating)
Power wires
not connected
Check BATTERY and
GROUND wiring at
amplifier; check battery
connections
Speaker leads
shorted
Check speaker continuity
to ground; should not
show a common ground
Final System Checks/Troubleshooting ♦ 17

Clarion APA5241 Specifications

Power Specifications

maximum power output	550 watts
continuous average power output (channels 1-4)	35 watts x 4 into 4 ohms
continuous average power output (bridged)	90 watts x 2 into 4 ohms
continuous average power output (channel 5)	100 watts x 1 into 4 ohms

Performance Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Electrical Specifications

current use	< 45 amps
speaker load capacity (channels 1-4)	2 ohms stereo
speaker load capacity (channel 5)	4 ohms mono

Weight and Dimensions

dimensions	230 mm x 47.5 mm x 400 mm
