Clarion APA5241 User Manual

2 -, 3-, 4-Channel Input Configurations
FRONT PANEL SETTINGS FRONT PANEL SETTINGS
5-Ch. Output Configurations (too pages 8 and 9) 3-Ch. Output Configurations (see pages 8 and 9)
FRONT PANEL SETTINGS
FRONT PANEL SETTINGS
CHS SUM SUM SUM SUM
CH4 O 0 O CH2
CH3 BH BTl Q CHI
CH2 Q O O 0
chi btl o o o o=active
CHS SUM SUM SUM SUM
cm o 0 Q CH2
CH3 BTL BTL Q CHI
CH2 Q Q Q Q
chi btl o o o o=active
3-th. inputs (Bridged Rear}
2-Ch. Bridged Inputs
External X-over Unit
HP/LP crossed over
approx . 600-800 Hz
(creates Bridged
Mid Bass application)
APA5241
Front Panel
2-Ch. Source Unit
Works with
speaker or
RCA inputs
APA5241
Front Panel
4-Channel Output Configuration
3-Ch. Output Configurations (see pages lOandll)

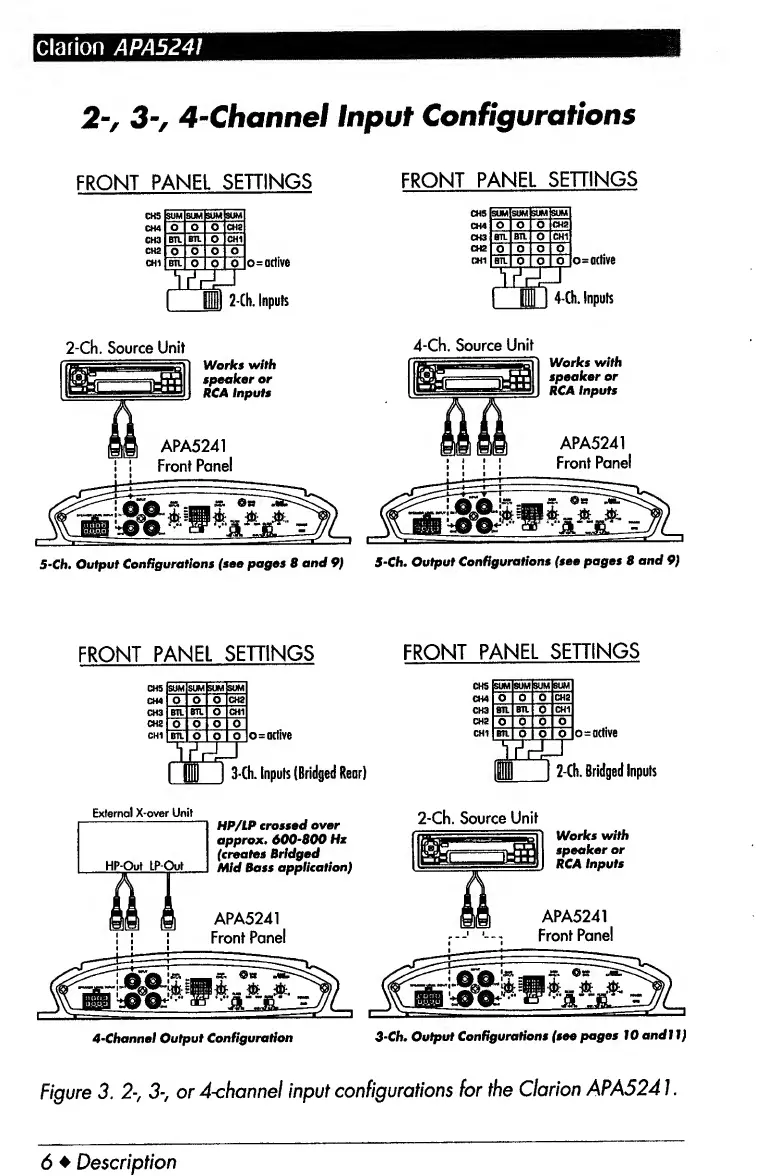

Figure 3. 2-, 3-, or 4<hannel input configurations for the Clarion APA5241.
6 ♦ Description

Clarion APA5241 Specifications

Power Specifications

maximum power output	550 watts
continuous average power output (channels 1-4)	35 watts x 4 into 4 ohms
continuous average power output (bridged)	90 watts x 2 into 4 ohms
continuous average power output (channel 5)	100 watts x 1 into 4 ohms

Performance Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Electrical Specifications

current use	< 45 amps
speaker load capacity (channels 1-4)	2 ohms stereo
speaker load capacity (channel 5)	4 ohms mono

Weight and Dimensions

dimensions	230 mm x 47.5 mm x 400 mm
