OPERATION/INSTALLATION MANUAL

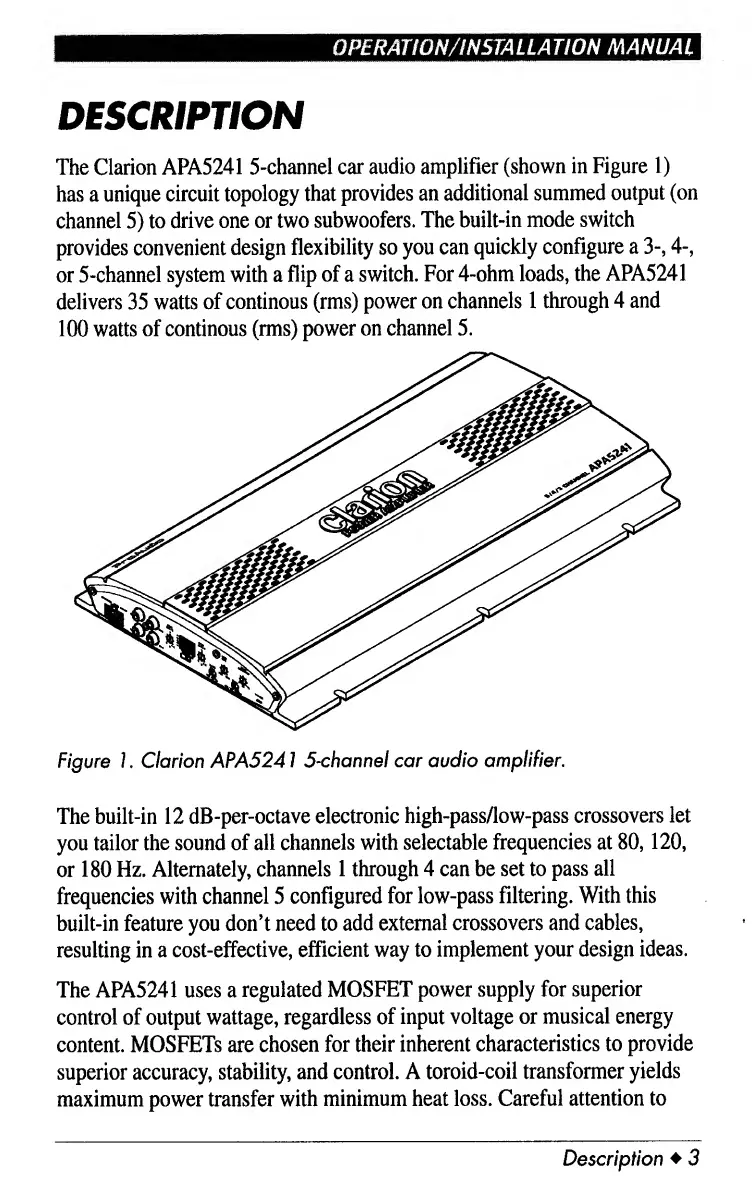

DESCRIPTION
The Clarion APA5241 5-channel car audio amplifier (shown in Figure 1)
has a unique circuit topology that provides an additional summed output (on
channel 5) to drive one or two subwoofers. The built-in mode switch
provides convenient design flexibility so you can quickly configure a 3-, 4-,
or 5-channel system with a flip of a switch. For 4-ohm loads, the APA5241
delivers 35 watts of continous (rms) power on channels 1 through 4 and
100 watts of continous (rms) power on channel 5.
Figure 1. Clarion APA5241 5-channel car audio amplifier.
The built-in 12 dB-per-octave electronic high-pass/low-pass crossovers let
you tailor the sound of all channels with selectable frequencies at 80,120,
or 180 Hz. Alternately, channels 1 through 4 can be set to pass all
frequencies with channel 5 configured for low-pass filtering. With this
built-in feature you don’t need to add external crossovers and cables,
resulting in a cost-effective, efficient way to implement your design ideas.
The APA5241 uses a regulated MOSFET power supply for superior
control of output wattage, regardless of input voltage or musical energy
content. MOSFETs are chosen for their inherent characteristics to provide
superior accuracy, stability, and control. A toroid-coil transformer yields
maximum power transfer with minimum heat loss. Careful attention to
Description ♦ 3

Clarion APA5241 Specifications

Power Specifications

maximum power output	550 watts
continuous average power output (channels 1-4)	35 watts x 4 into 4 ohms
continuous average power output (bridged)	90 watts x 2 into 4 ohms
continuous average power output (channel 5)	100 watts x 1 into 4 ohms

Performance Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V
input sensitivity (speaker-level)	400 mV to 10 V

Electrical Specifications

current use	< 45 amps
speaker load capacity (channels 1-4)	2 ohms stereo
speaker load capacity (channel 5)	4 ohms mono

Weight and Dimensions

dimensions	230 mm x 47.5 mm x 400 mm
