Clarion CX501 Service Manual

-13-
CX501/CX501B/CX501A
BT PWB (B3) section
CD PWB (B4) section
REF No
.
PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No
.
PART No. DESCRIPTION
R936 119-1221-15 1/10W 1.2k ohm R954 119-1221-15 1/10W 1.2k ohm S902 013-6312-50 SWTICH
R937 119-1521-15 1/10W 1.5k ohm R955 119-1521-15 1/10W 1.5k ohm S903 013-6312-50 SWTICH
R938 119-1221-15 1/10W 1.2k ohm R956 119-1221-15 1/10W 1.2k ohm S920 013-6312-50 SWTICH
R939 119-1021-15 1/10W 1k ohm R957 119-1521-15 1/10W 1.5k ohm S922 013-6312-50 SWTICH
R940 119-1821-15 1/10W 1.8k ohm R958 119-1221-15 1/10W 1.2k ohm S923 013-6312-50 SWTICH
R941 119-1521-15 1/10W 1.5k ohm R959 119-1021-15 1/10W 1k ohm S924 013-6312-50 SWTICH
R942 119-1221-15 1/10W 1.2k ohm R960 119-1821-15 1/10W 1.8k ohm S926 013-6312-50 SWTICH
R943 119-1521-15 1/10W 1.5k ohm R961 119-1521-15 1/10W 1.5k ohm S927 013-6312-50 SWTICH
R944 119-1221-15 1/10W 1.2k ohm R962 119-1221-15 1/10W 1.2k ohm S928 013-6312-50 SWTICH
R945 119-1021-15 1/10W 1k ohm R963 119-1021-15 1/10W 1k ohm S930 013-6312-50 SWTICH
R946 119-1821-15 1/10W 1.8k ohm R964 119-1821-15 1/10W 1.8k ohm S931 013-6312-50 SWTICH
R947 119-1521-15 1/10W 1.5k ohm R965 119-1521-15 1/10W 1.5k ohm S932 013-6312-50 SWTICH
R948 119-1221-15 1/10W 1.2k ohm R966 119-1221-15 1/10W 1.2k ohm S936 013-6312-50 SWTICH
R949 119-1521-15 1/10W 1.5k ohm R967 119-1521-15 1/10W 1.5k ohm S938 013-6312-50 SWTICH
R950 119-1221-15 1/10W 1.2k ohm R968 119-1221-15 1/10W 1.2k ohm S939 013-6312-50 SWTICH
R951 119-1021-15 1/10W 1k ohm R969 119-1021-15 1/10W 1k ohm VR901 016-9900-94 VR W/SHAFT
R952 119-1821-15 1/10W 1.8k ohm R976 119-1821-15 1/10W 1.8k ohm PWB 039-3739-00 PWB
(
WITHOUT
R953 119-1521-15 1/10W 1.5k ohm R977 119-1521-15 1/10W 1.5k ohm COMPONENT
)
S901 013-6312-50 SWTICH
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C501 043-1608-90 0.1uF C540 043-1608-90 0.1uF R506 033-8231-15 1/10W 82k ohm
C502 165-1073-35 16V 100uF C541 043-1606-90 1000
p
F R507 033-0000-05 1/10W 0 ohm
C503 043-1608-90 0.1uF C542 043-1606-90 1000pF R508 033-1031-15 1/10W 10k ohm
C504 043-1608-90 0.1uF C543 043-0552-90 6.3V 47uF M R510 033-1031-15 1/10W 10k ohm
C505 042-0560-85 6.3V 100uF C544 043-1608-90 0.1uF R511 033-1031-15 1/10W 10k ohm
C506 043-1608-90 0.1uF C545 042-0560-85 6.3V 100uF R512 033-1031-15 1/10W 10k ohm
C507 043-1608-90 0.1uF C546 042-0560-85 6.3V 100uF R513 033-4711-15 1/10W 470 ohm
C508 043-1625-90 0.022uF C547 043-1706-90 5
p
F R514 033-6831-15 1/10W 68k ohm
C509 043-1824-90 0.22uF C548 043-1706-90 5
p
F R515 033-2231-15 1/10W 22k ohm
C510 043-1608-90 0.1uF C549 043-1608-90 0.1uF R516 033-6811-15 1/10W 680 ohm
C511 043-1806-90 1
p
F C550 043-1608-90 0.1uF R517 033-4731-15 1/10W 47k ohm
C512 043-1605-90 68pF C551 043-1608-90 0.1uF R518 033-6811-15 1/10W 680 ohm
C513 042-2273-25 10V 220uF M C552 043-1606-90 1000
p
F R519 116-3391-15 1/4W 3.3 ohm
C514 043-1606-90 1000pF C553 043-1608-90 0.1uF R520 033-4731-15 1/10W 47k ohm
C515 043-1608-90 0.1uF C554 165-4763-15 6.3V 47uF R521 033-1021-15 1/10W 1k ohm
C516 043-1608-90 0.1uF C555 043-1608-90 0.1uF R522 033-0000-05 1/10W 0 ohm
C517 042-0560-85 6.3V 100uF C556 043-1608-90 0.1uF R523 033-0000-05 1/10W 0 ohm
C518 043-1605-90 68
p
F C557 043-1608-90 0.1uF R524 033-1011-15 1/10W 100 ohm
C519 043-1607-90 0.01uF C558 042-0560-85 6.3V 100uF R525 033-2211-15 1/10W 220 ohm
C520 043-1608-90 0.1uF C560 043-1615-90 0.047uF R526 033-1011-15 1/10W 100 ohm
C521 042-0560-85 6.3V 100uF C561 043-1615-90 0.047uF R527 033-1041-15 1/10W 100k ohm
C522 043-1608-90 0.1uF C562 043-1614-90 470
p
F R530 033-1031-15 1/10W 10k ohm
C523 043-1607-90 0.01uF C563 043-1614-90 470pF R531 033-1031-15 1/10W 10k ohm
C525 043-1608-90 0.1uF D501 001-4326-50 RSB27F2T106 R532 033-6831-15 1/10W 68k ohm
C526 043-1615-90 0.047uF IC501 051-6101-90 BD8226EFV R533 033-1811-15 1/10W 180 ohm
C527 043-1607-90 0.01uF IC502 051-6934-90 MFI341S2313 R534 033-1011-15 1/10W 100 ohm
C528 043-1620-90 4700
p
F IC503 051-6754-00
LC786960E-6AXX-L
R535 033-1811-15 1/10W 180 ohm
C529 043-1608-90 0.1uF IC505 051-6926-90
BD2051AFJ-TR
R536 033-0000-05 1/10W 0 ohm
C530 043-1615-90 0.047uF J501 074-2215-60 10P R537 033-0000-05 1/10W 0 ohm
C531 043-1625-90 0.022uF J502 074-2215-65 15P R538 033-0000-05 1/10W 0 ohm
C532 042-0560-85 6.3V 100uF J503 074-2226-90 40P R539 033-1231-15 1/10W 12k ohm
C533 043-0603-90 16V 10uF L501 010-3112-90 1k ohm/100MHz R540 033-0000-05 1/10W 0 ohm
C534 042-0560-85 6.3V 100uF L502 010-3112-90 1k ohm/100MHz R541 033-3321-15 1/10W 3.3k ohm
C535 043-0603-90 16V 10uF Q501 190-2060-00 2SA2060 R542 033-0000-05 1/10W 0 ohm
C536 043-1607-90 0.01uF R501 117-1821-15 1/8W 1.8k ohm R543 033-3311-15 1/10W 330 ohm
C537 043-1713-90 12
p
F R503 033-2731-15 1/10W 27k ohm R544 116-1501-15 1/4W 15 ohm
C538 043-1713-90 12pF R504 033-8231-15 1/10W 82k ohm R545 116-1501-15 1/4W 15 ohm
C539 043-1608-90 0.1uF R505 033-1241-15 1/10W 120k ohm R546 033-4701-15 1/10W 47 ohm
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
ANT601 060-8105-50 ANT-RECEPT C623 178-1052-78 1uF L606 010-3104-54 MPZ1608S601AT
C605 043-1735-90 100
p
F C625 043-0603-90 10uF R618 119-1011-15 1/10W 100 ohm
C616 043-1804-90 0.1uF IC600 051-3577-90 S1206B33U- R619 119-1011-15 1/10W 100 ohm
C619 043-1715-90 15pF 3T1G PWB 039-3738-00 PWB(WITHOUT
C620 043-1715-90 15
p
F IC601 060-8123-90 GTBM501 COMPONENT
)
C621 178-1052-78 1uF J600 074-3014-72 22P
C622 043-1804-90 0.1uF L604 010-3104-54
MPZ1608S601AT
31
51
81
1
5
1
5
1
15
1
1
13
1
10
140
To J105 of Main PWB(B1) (page 14) Connect with FLAT WIRE 816-3063-55
Caution:
COMPONENT SIDE: Parts on the component
side seen from the component side are indicated.
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.

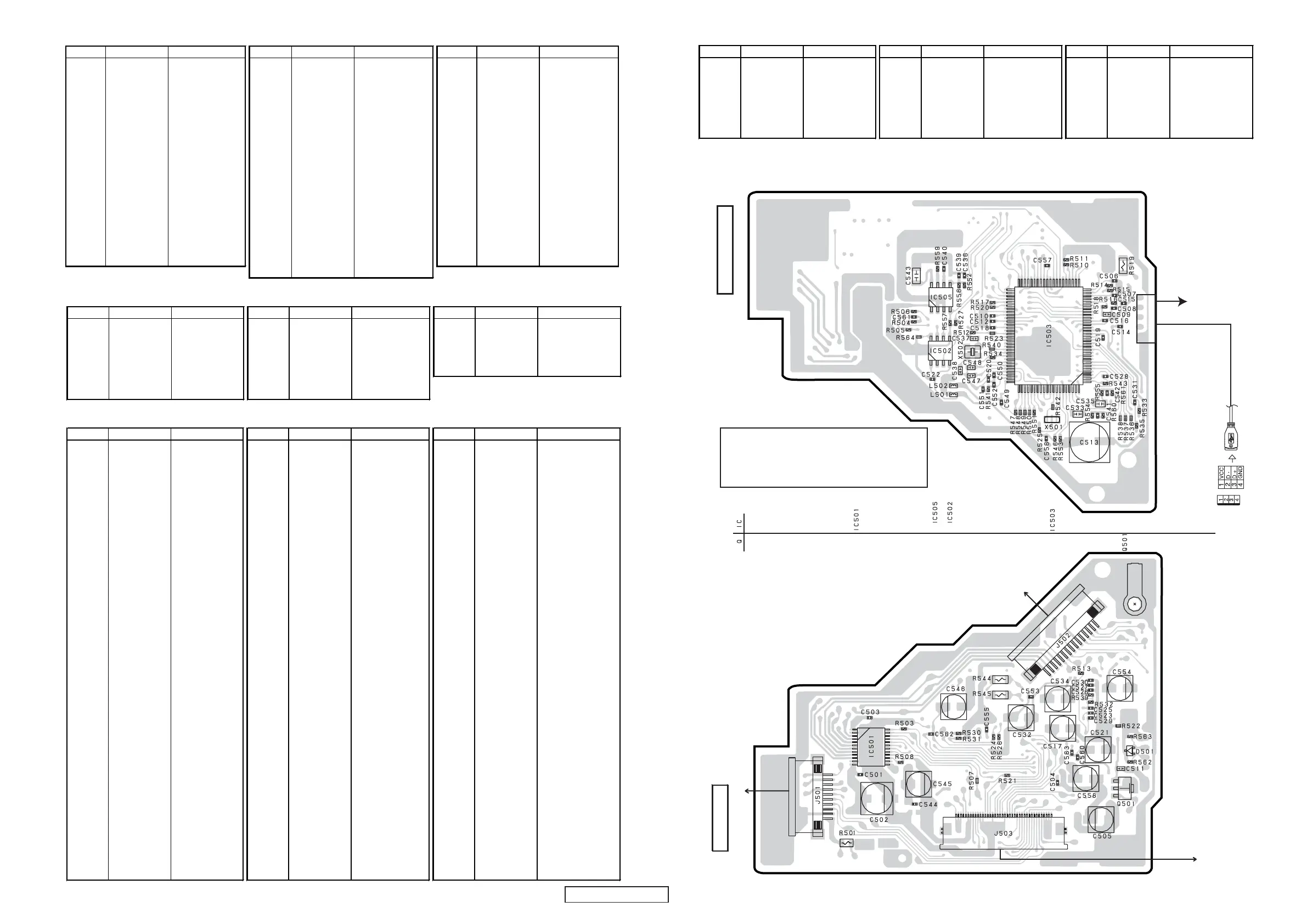

PRINTED WIRING BOARD 1/5
CD PWB(B4) section
COMPONENT SIDE
SOLDER SIDE
855-0642-50 (PE-3402B-B/K-A)
To Swith PWB(B2)(page 16) Connect with Jump Wire (PE-3402B-A/K-B)
USB CONNECTOR
F-GND
GND
D+
D-
VCC
To CD Mechanism
To PICK UP ASSY
USB CABLE
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
R547 033-4731-15
1/10W 47k ohm
R554 033-6801-15 1/16W 68 ohm R562 033-1531-15 1/10W 15k ohm
R548 033-0000-05 1/10W 0 ohm R555 033-6801-15 1/16W 68 ohm R563 033-1531-15 1/10W 15k ohm
R549 033-0000-05 1/10W 0 ohm R556 033-1041-15
1/10W 100k ohm
R564 033-0000-05 1/10W 0 ohm
R550 033-0000-05 1/10W 0 ohm R557 033-1041-15
1/10W 100k ohm
X501 060-1535-90 16.934MHz
R551 033-1031-15
1/10W 10k ohm
R559 033-1031-15 1/10W 10k ohm X502 061-3580-90 12MHz
R552 033-1031-15
1/10W 10k ohm
R560 033-1041-15
1/10W 100k ohm
PWB 039-3737-00 PWB(WITHOUT
R553 033-4791-15 1/16W 4.7 ohm R561 033-1041-15
1/10W 100k ohm
COMPONENT
)
