Clarion CX501 Service Manual

-8-
CX501/CX501B/CX501A

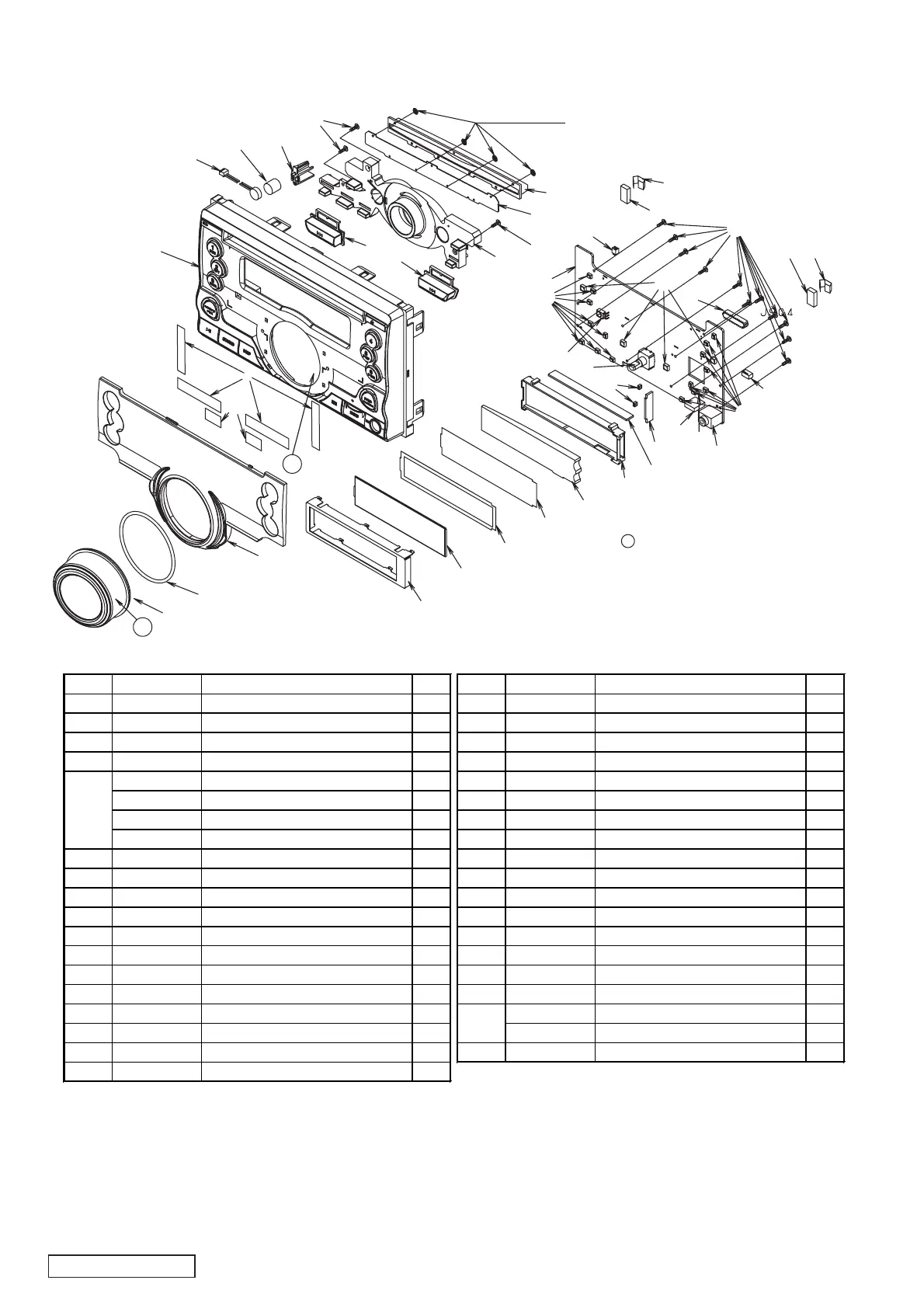

EXPLODED VIEW / PARTS LIST
Escutcheon section
: SANKOL application
Note) SANKOL uses CFD-409Z
A
Note)1. Some parts depend on each model.
The model name is specified in the description.
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 947-0785-00 KNOB ASSY 1 18 331-5080-00 LCD COVER
1
2 947-0784-00 DIAL ASSY 1 19 379-1457-51 INDICATOR(LCD)
1
3 347-8918-00 DOUBLE FACE 2 20 347-8922-00 BLACK FILM
1
4 347-8298-00 DOUBLE FACE 4 21 347-8921-00 WHITE FILM
1
5 940-8602-00 ES ASSY(PE-3402B-A) 1 22 335-9037-00 LCD ILLUMI
1
940-8602-08 ES ASSY(PE-3402B-B) 1 23 335-9038-00 LCD HOLDER
1
940-8602-02 ES ASSY(PE-3402K-A) 1 24 345-6526-00 RUBBER PART
1
940-8602-07 ES ASSY(PE-3402K-B) 1 25 074-4036-50 USB JACK(PE-3402B-A/K-B)
1
6 081-0040-00 MICRIPHONE 1 26 001-7088-92 DIODE
6
7 382-9582-00 BUTTON(RESET) 1 27 016-9900-94 VR W/SHAFT
1
8 346-0209-00 LEATHER SHEET 1 28 060-4021-00 IR-RECEIVER
1
9 371-3827-03 TRIM PLATE 1 29 075-9021-50 AUX JACK
1
10 345-5312-00 CUSHION 2 30 001-7062-90 DIODE
1
11 347-7321-00 E-SHEET 2 31 013-6312-50 TACT SWITCH
16
12 345-6422-00 SPONGE 1 32 076-0478-52 PLUG(2P)
1
13 716-0872-51 SPECIAL SCREW(M1.7x5) 14 33 074-3014-72 OUTLET SOCKET(22P)
1
14 382-9580-00 BUTTON(FW) 1 ------------ SWITCH PWB1
1
15 382-9579-00 BUTTON(FF) 1 ------------ SWITCH PWB2
1
16 335-9044-00 ILLUMI(MID) 1 35 076-0502-55 PLUG(5P)(PE-3402B-A/K-B)
1
17 347-8968-00 FILM 1
34
1
2
17
18
20
19
21
22
23
24
25
29
30
31X8
35
26
33
10
11
13X11
10
11
31X8
32
16
13
8
9
14
15
13
12
6
7
5
3
4
26
27
28
A
A
Weld by heating
34
34

Clarion CX501 Specifications

General

MP3 playback	Yes
Product color	Black
Volume control	Digital
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, HFP, HSP, OPP, PBAP
USB ports quantity	1
Amplifier output power	200 W
Key illumination color	Blue
