19.- SPECIFICATIONS (CONT.)

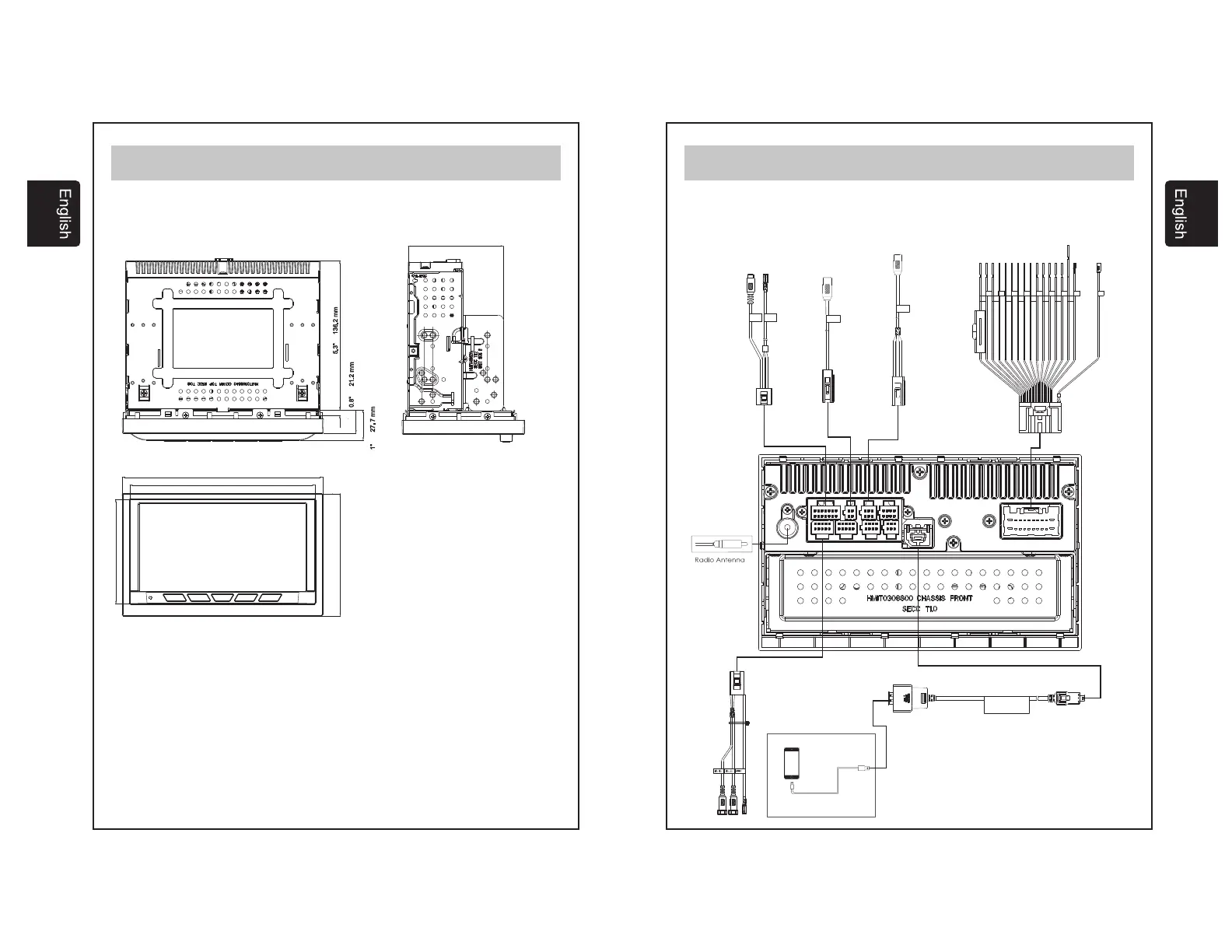

FX508 dimensions:
FX508 weight: 2 kg
5.3" 136.2 mm
1" 27 7 mm.
0.8" 21.2 mm
3.4" 87.2 mm
7.2" 184 mm
6.7" 170 mm
4.4" 112 mm
3.8" 96 mm
19.- ESPECIFICATIONS
20.- WIRE CONNECTION GUIDE
Note:
Before installing, be sure to disconnect the negative cable of the car battery.
When connect all accessories and USB cable, be sure to fix with the clamp.
14
B +
GND
ACC
SPEED
ILL +
-ILL
+SPK FL
-SPK FL
+SPK RL
-SPK RL
SPK FR +
-SPK FR
+SPK RR
-SPK RR
PARKING
ANT
VCC
WHEEL REMOTE
iPod/iPhone
Lightning cable (included with iPod/iPhone)
To Next Page
