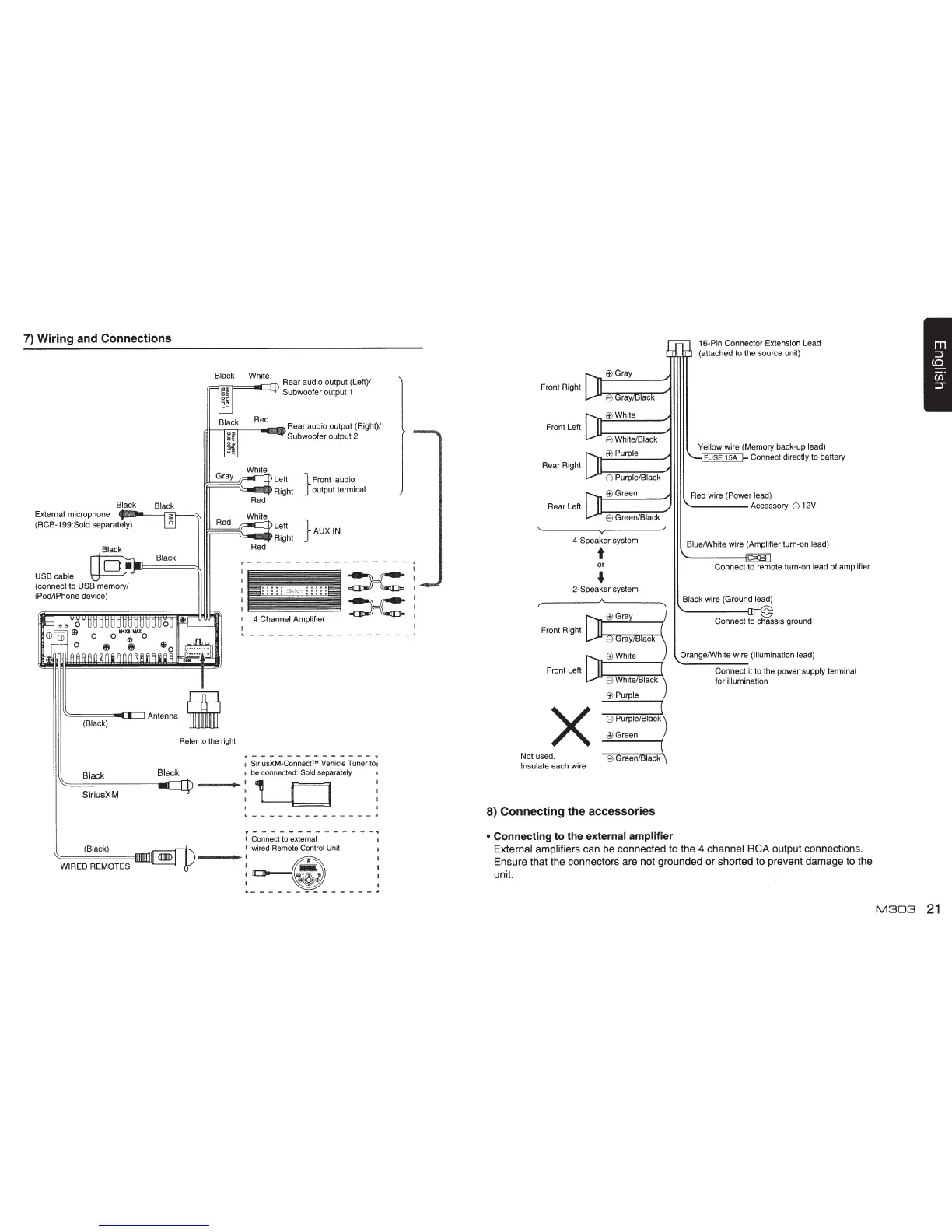

7) Wiring and Connections
Black
External
microphone
(RCB-199:Sold separately)
Black
USB cable
(connect to USB memory/
iPod/iPhone device)
Black
Black
'-':::::===~II(]E:::J Antenna F"fF1
(Black) -
Refer to the right
Black
Black
SiriusXM
Red
White
Red
}
Front audio
output
terminal
}AUXIN
; Siri~sXM--:C~n~e~tT~ vehic; Tu~e;to~
1 be connected: Sold separately
I Connect to external
I wired Remote Control Unit
I
... _------------- ~
Front Right
Front Left
Rear Right
Rear Left
(£!Gray
8 Gray/Black
(£!White
8 White/Black
(£1 Purple
8 Purple/Black
(£!Green
8 Green/Black
4-Speaker system
t
or
•
2-Speaker system
Front Right
Front Left
(£1 Purple
X
8 Purple/Black
Not used.
Insulate each wire
8) Connecting the accessories
• Connecting to the external amplifier
16-Pin Connector Extension Lead
(attached to the source unit)
Yellow wire (Memory back-up lead)
FUSE 15A Connect directly to battery
Red wire (Power lead)
.....__ _____ Accessory (£1 12V
Blue/White
wire (Amplifier turn-on lead)
Connect to remote turn-on lead of amplifier
Black
wire (Ground lead)
Connect to chassis ground
Orange/White wire
(Illumination lead)
Connect it to the power supply terminal
for illumination
External amplifiers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
M303 21
