Clarion NX503E Quick Start Guide & Installation Manual

NX503E/FX503E 5
English

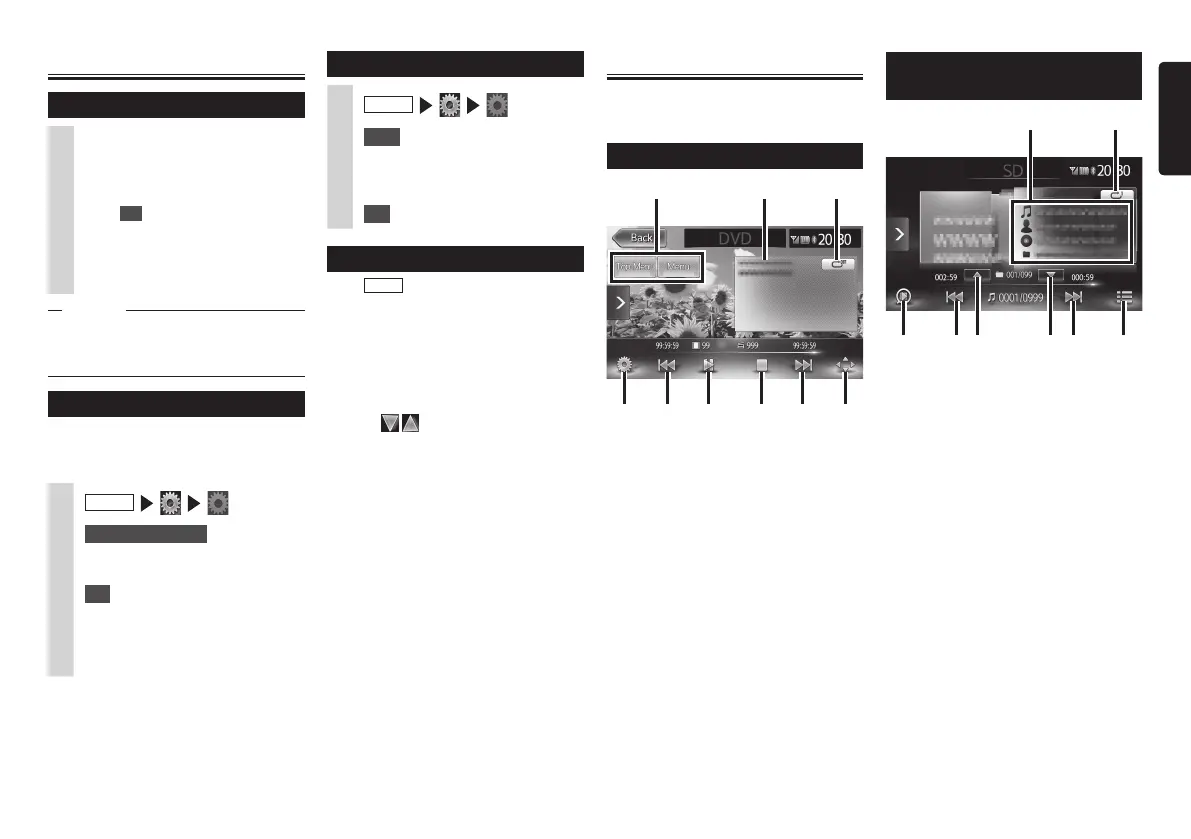

Source Media Modes
When you select the desired source mode
(for example, the DVD Video, USB or iPod
mode), the following screen will appear.
Viewing DVDs (NX503E only)
21
4
5 6 7 8 9
3
1. Display the disc menu
2. Play status/Information of the monitor
size
3. Trick Play key
4. Display the option screen
5. Play the previous chapter/Rewind (long
press)
6. Play/Pause
7. Stop play
8. Play the next chapter/Fast forward
(long press)/Slow play (long press
while pausing)
9. Display the operation key to operate
the disc menu.
Basic method of use
Turning the power on
1
Turn the engine key to the “ACC”
or “ON” position.
The unit turns on.
After the opening screen is displayed,
touch OK . The current position
map screen or the audio screen is
displayed.
When the engine key is turned to the
“OFF” position, the unit is turned off.
MEMO
• When the Antitheft Activation function
is set, the password entry screen is
displayed.
Switching the language
When the unit turns on, the default language
is set to English.
Switch to your language to use the unit.
1
MENU
2
System Language
3
Select the language you use.
4
OK
When you switch the language, the
unit is automatically restarted and the
language is switched to the selected
language.
Setting the time (FX503E only)
1
MENU
2
Time
3
Set the hour, the minute and AM/
PM.
4
Set
Selecting a Source
Press
MENU
to display the main menu
screen.
Touching the main menu screen and
quickly sliding your finger up or down then
removing it, moves you to the previous or
next page. This operation is called flicking.
The screen can be switched to the next
or previous menu screen by flicking or
touching
.
You can select the desired source in the
main menu screen.
Listening to microSD card/USB
memory files
1
2
3 4 5 7 86
✽
The above screen is for playing a microSD
card.
1. Song/Artist/Album/Folder information
2. Trick Play key
3. Scan key
4. Play the previous track/Rewind (long
press)
5. Play the previous folder
6. Play the next folder
7. Play the next track/Fast forward (long
press)
8. Display the folder list/track list
S-GPF_EUR_QSG.indb 5 2013/03/15 14:27:56

Clarion NX503E Specifications

General

MP3 playback	-
DVD Audio playback	Yes
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Display resolution	800 x 480 pixels
Output power	18 W
Product color	Black
Frequency range	20 - 20000 Hz
Disc types supported	DVD+R, DVD+RW, DVD-R, DVD-RW
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	530 - 1710 kHz
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
Bluetooth	No
Line outputs (RCA)	2

Weight and Dimensions

Dimensions (WxDxH)	178 x 157 x 100 mm
