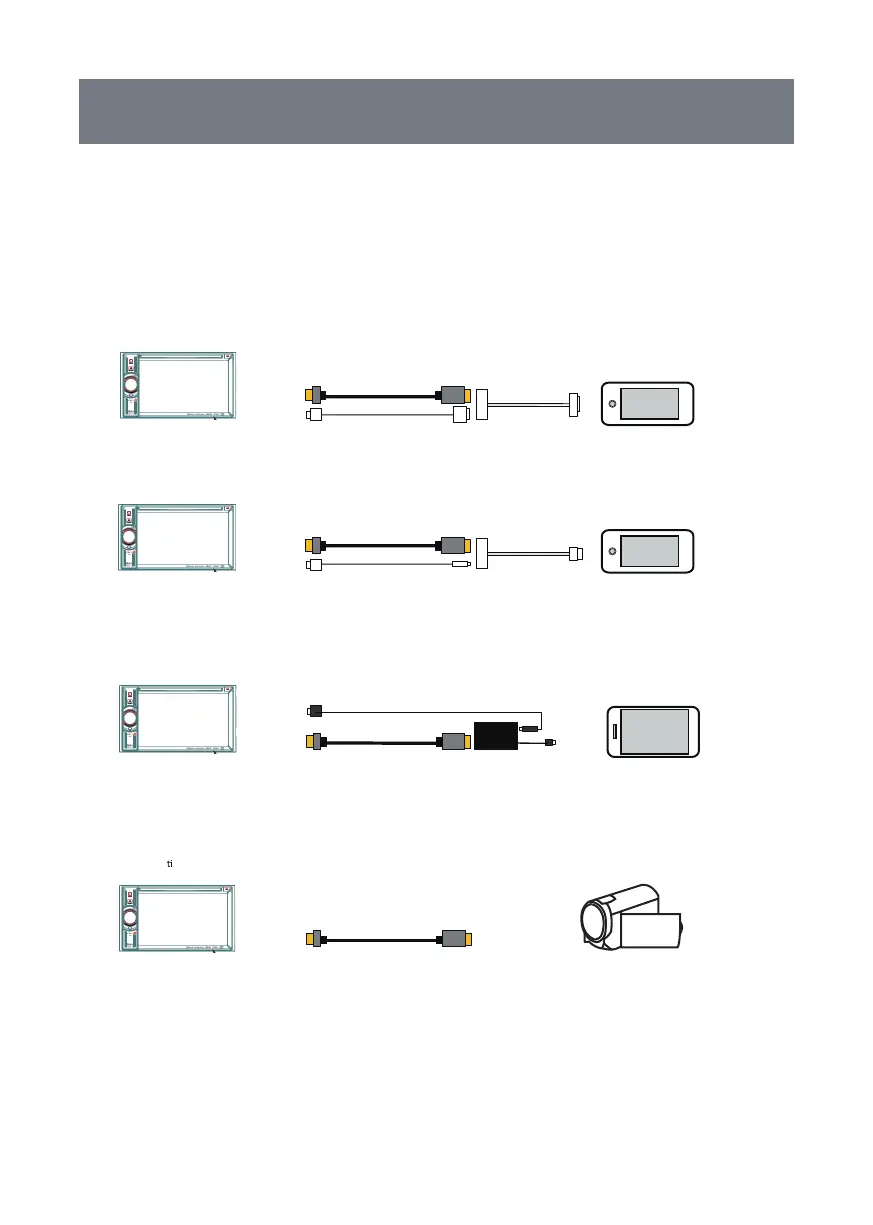

16. HDMI MODE
Wire
Connection
of HDMI
can be connected by using the connector cable suppliedwith
and HDMI cable (sold in the market)
and digital
Av adapter.
(1) Connection with the iPhone 4 and iPhone 4s
VX404E
iPhone 4 and iPhone 4s
Android phone
Apple Genuine
30pin-Digital AV adapter
(3) Connection with the Android phone
VX404E
Apple Genuine 30pin cable
Micro USB cable sold in the market
MHL adaptor sold
in the market
(2) Connection with the iPhone 5, iPhone 5s and iPhone 5c
VX404E
iPhone 5, iPhone 5s and iPhone 5c
Apple Genuine
Lightning-Digital AV adapter
Apple Genuine Lightning
TM
cable
HDMI cable sold in the market
HDMI cable sold in the market
HDMI cable sold in the
market
(4) Connec on with the equipment with HDMI output
Electronic devices with HDMI output
HDMI cable sold in the
market
iPhone 4, iPhone 4s, iPhone 5, iPhone 5s and iPhone 5c
iPhone 4, iPhone 4s, iPhone 5, iPhone 5s and iPhone 5c
Note:
The following is part of the wiring example.
Depending on the device, there is a case to connect to the device directly with the CCA-771.
Depending on the adapter or device, there is a case that the audio noise and video noise is generated.
