Clevo P870KM Service Manual

Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

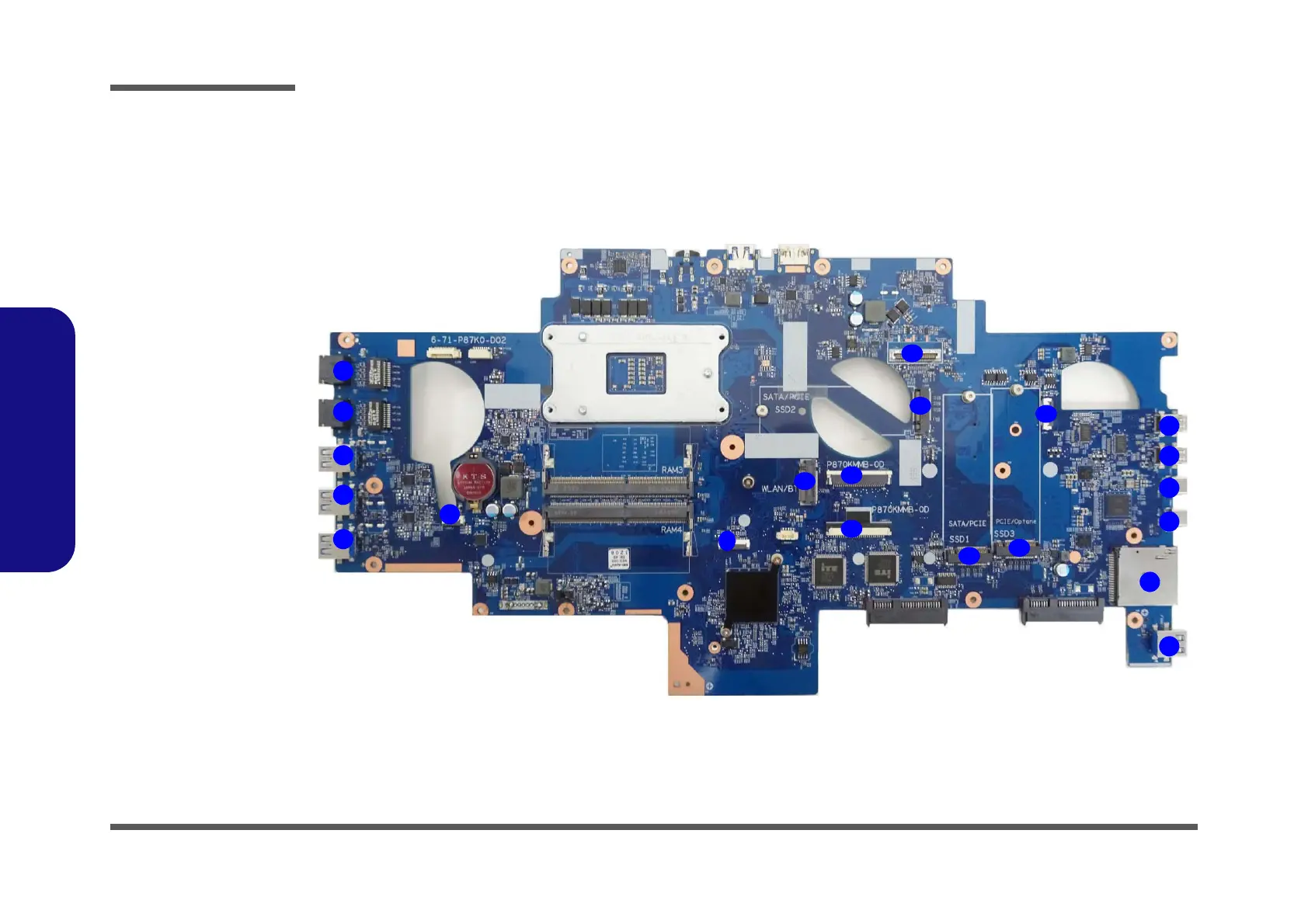

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. RJ-45 LAN Jacks
2. USB 3.0/3.1 Ports
3. Powered USB 3.0/
3.1 Port
4. Multi-in-1 Card
Reader
5. USB 3.1 Port
6. Mini Display Port 1
7. MIni Display Port 2
8. KB LED Connector
9. TP Connector
10.WLAN Card
Connector
11. Keyboard Cable
Connector
12.Panel Cable
Connector
13.M.2 Card
Connector
14.Button LED
Connector
1
2
4
5
7
8
11
13
3
5
9
10
1
2
12
13
2
11
14
6
13
