Clevo P870KM Service Manual

Disassembly
Removing the M.2 SSD Module 2 - 23
2.Disassembly
Removing the M.2 SSD Module
Removing the M.2 SSD-1 Module
1. Turn off the computer, remove the battery (page 2 - 5), and component bay cover (page 2 - 10).
2. Locate the module; it is visible at point
(Figure 17a).
3. Carefully remove the screw from the module
(Figure 17b).
4. The M.2 SSD module will pop-up (Figure 17c
).
5. Lift the M.2 SSD module up and off the computer (Figure 17d
).
6. Reverse the process to install a new module (make sure that the hexagonal screw
is in the correct location).

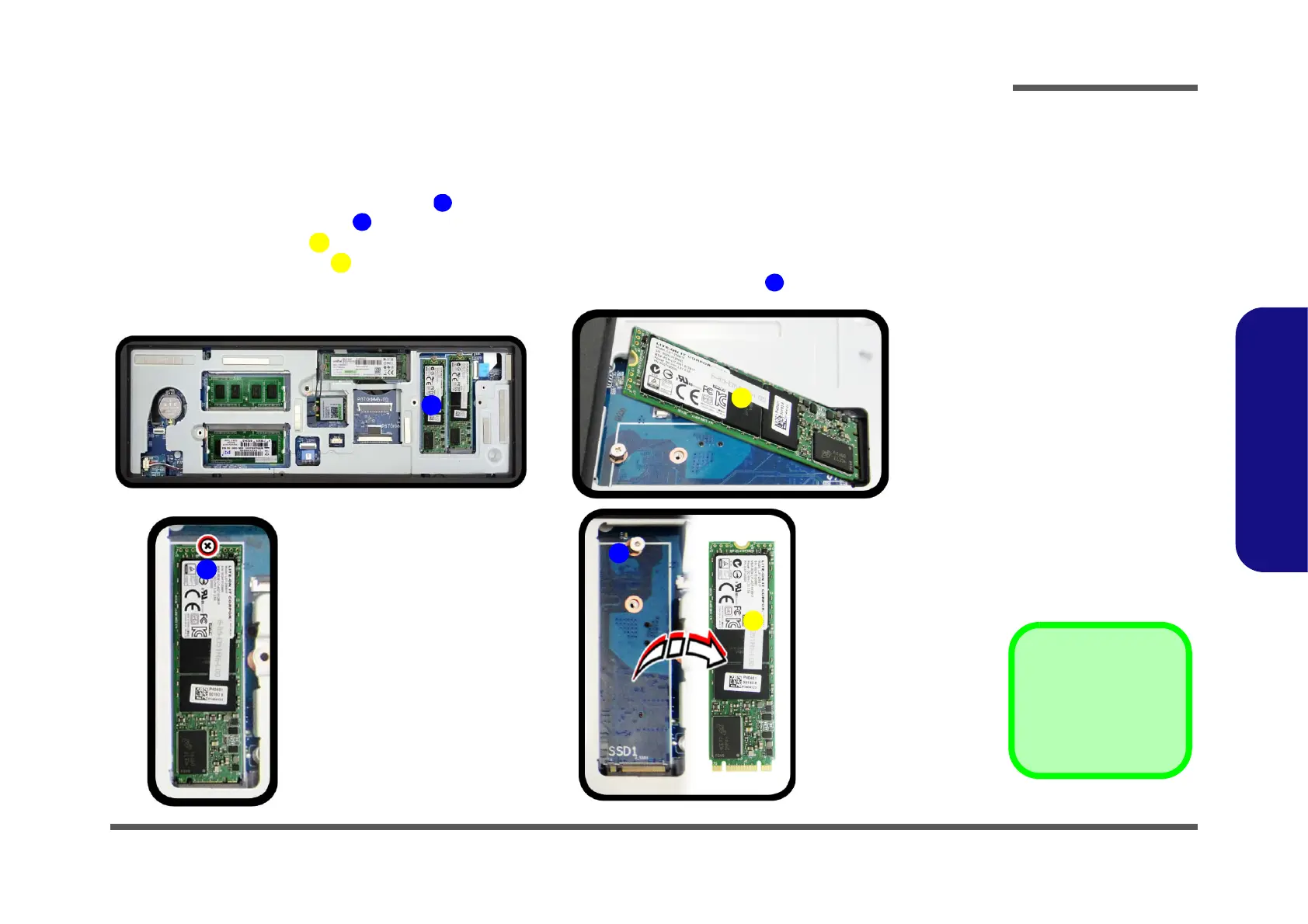

Figure 17
M.2 SSD-1 Module
Removal
a. Locate the module.
b. Remove the screw.
c. The module will pop-up.
d. Lift the module up off the
socket.
1
2
6
3
6
3
4
a.
b.
3
2
3
c.
d.
4
1

3. M.2 SSD Module
•1 Screw
