Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction

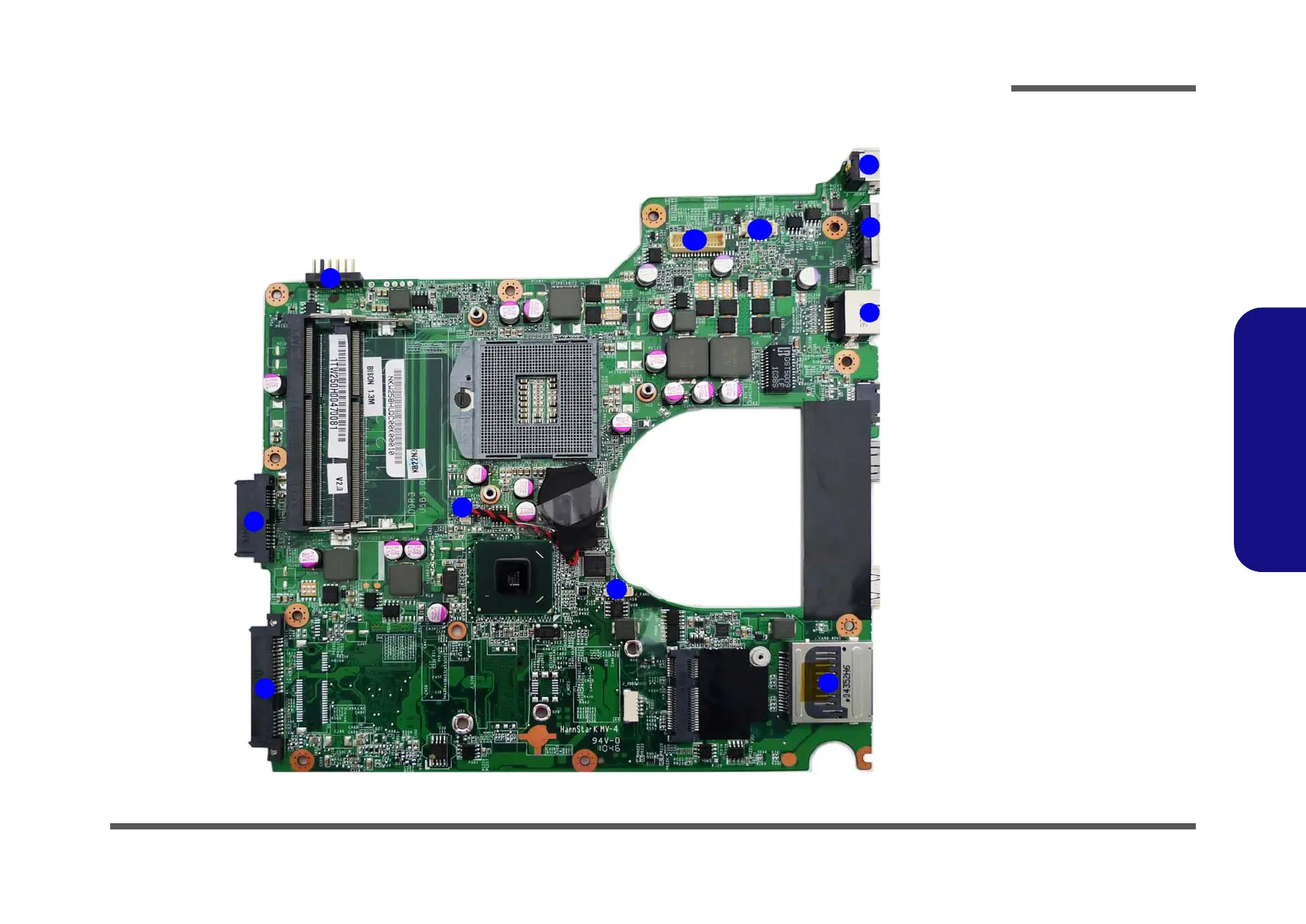

Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. Battery
Connector
2. ODD Connector
3. HDD Connector
4. CMOS Battery
Connector
5. CPU Fan Cable
Connector
6. Multi-in-1 Card
Reader
7. RJ-45 LAN Jack
8. External Monitor
Port
9. DC-In Jack
10.CCD Cable
Connector
11. LCD Cable
Connector
1
2
4
5
6
7
8
9
3
10
11
