2 - 14 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).
3. Carefully disconnect the cable , and then remove the screw
(Figure 10b).
4. The Wireless LAN module (Figure 10c) will pop-up, and you can remove it from the computer (Figure 10d).

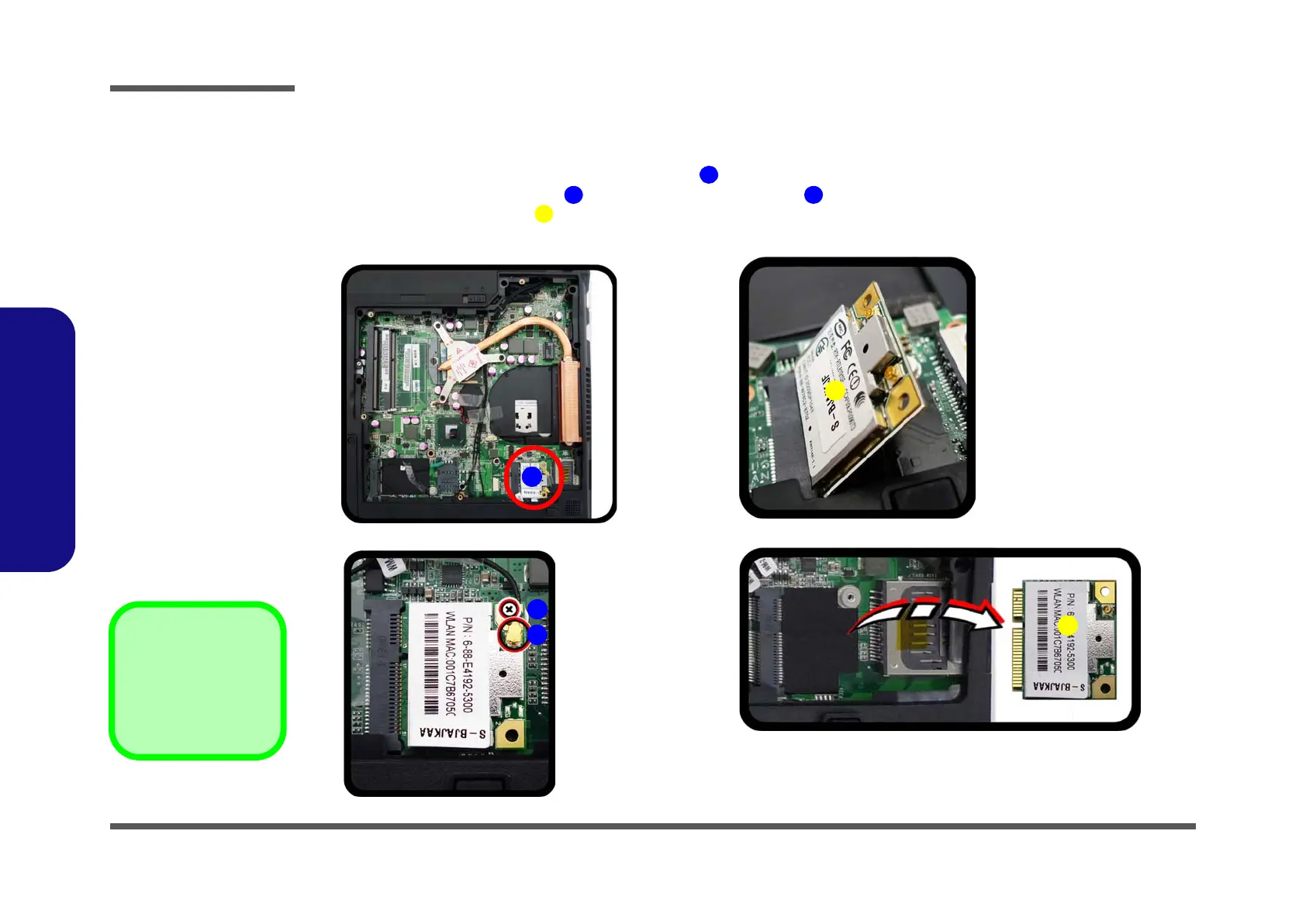

Figure 10
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cable
and remove the screw.
c. The WLAN module will
pop up.
d. Remove the Wireless
LAN module.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 10b).
1
2
3
4
b.
c.
a.
2
3
d.
4
4
1

4.Wireless LAN Module
•1 Screw
