Disassembly
Removing and Installing a Processor 2 - 11
2.Disassembly
Removing and Installing a Processor
Processor Removal Procedure
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).
2. The CPU heat sink will be visible at point (Figure 7a).
3. Loosen the CPU heat sink screws in the order
, & (the reverse order as indicated on the label Figure 7a).
4. Grip the heat sink tab and carefully lift the heat sink up and off the computer (Figure 7b).
A
3
2
1
4

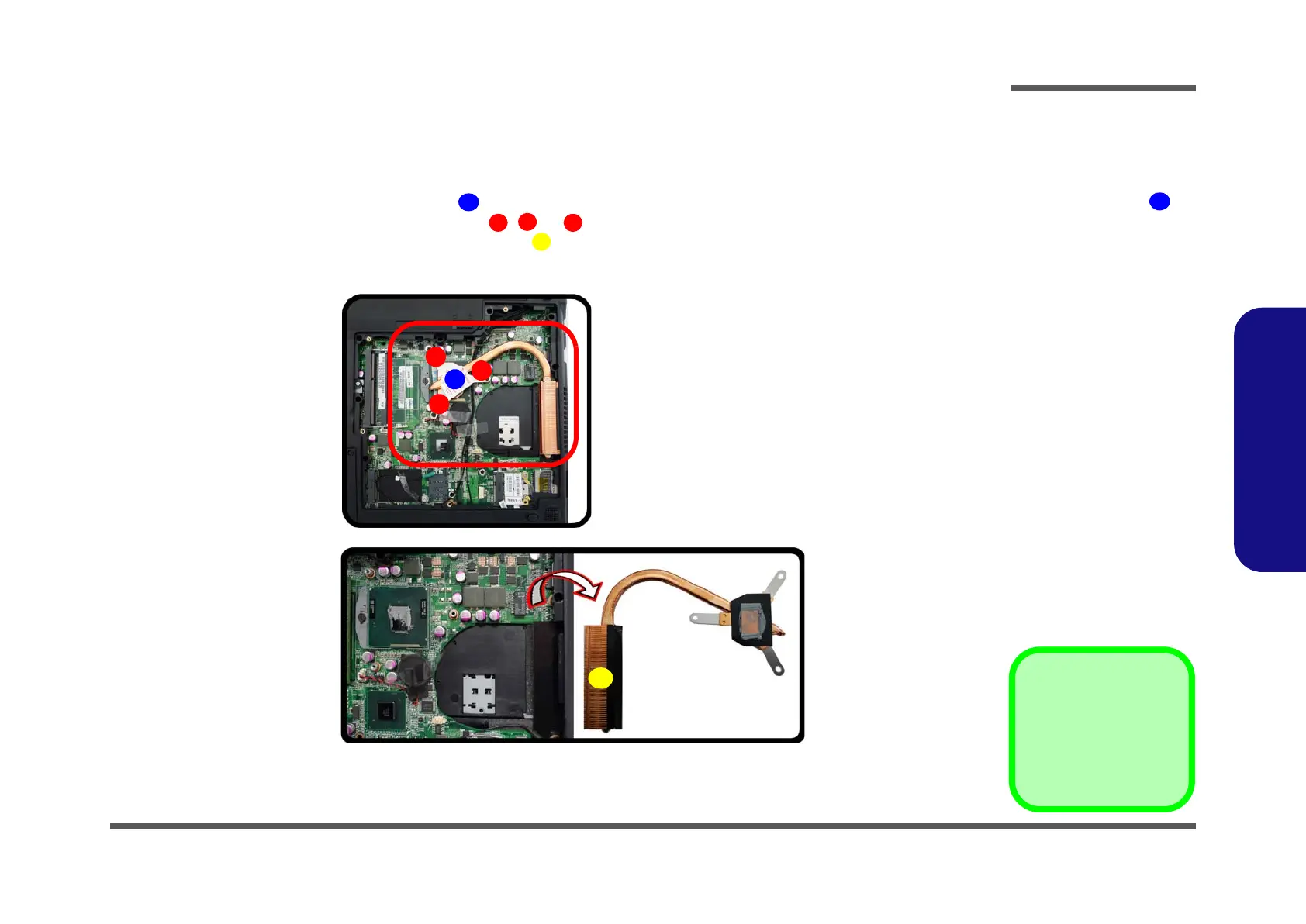

Figure 7
Processor Removal
a. The CPU heat sink will
be visible at point .
Remove the screws from
the CPU heatsink.
b. Grip the heat sink tab
and carefully lift the heat
sink up and off the com-
puter.
A

4. Heat Sink
•3 Screws
a.
b.
1
2
3
A
4
