Disassembly
2 - 16 Removing the 3G Module
2.Disassembly
Removing the 3G Module
1. Turn off the computer, turn it over to remove the battery (page 2 - 5) and bottom cover (page 2 - 6).
2. The 3G module will be visible at point on the mainboard (Figure 12a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 12b)
4. The 3G module (Figure 12c) will pop-up, and you can remove it from the computer.
5.Wireless LAN Module
•1 Screw

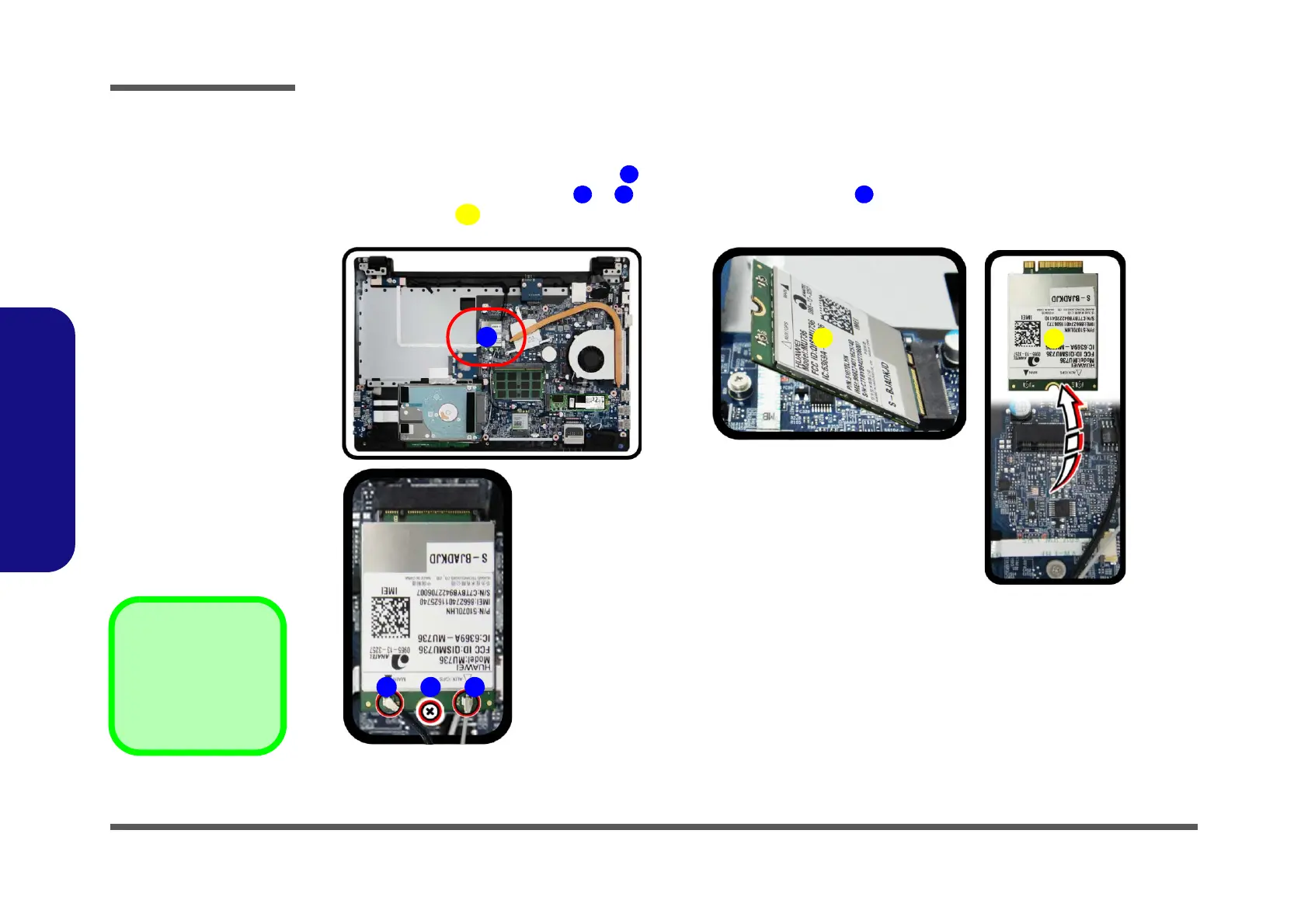

Figure 12
3G Module Removal
a. Locate the 3G.
b. Disconnect the cable
and remove the screw.
c. The 3G module will pop
up and lift it out of the
computer.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 13b).
To Next Page
