InteliLite
NT
– MRS10/11/15/16, SW version 1.5, ©ComAp – September 2009 11
IL-NT-MRS-1.5-Reference Guide.pdf

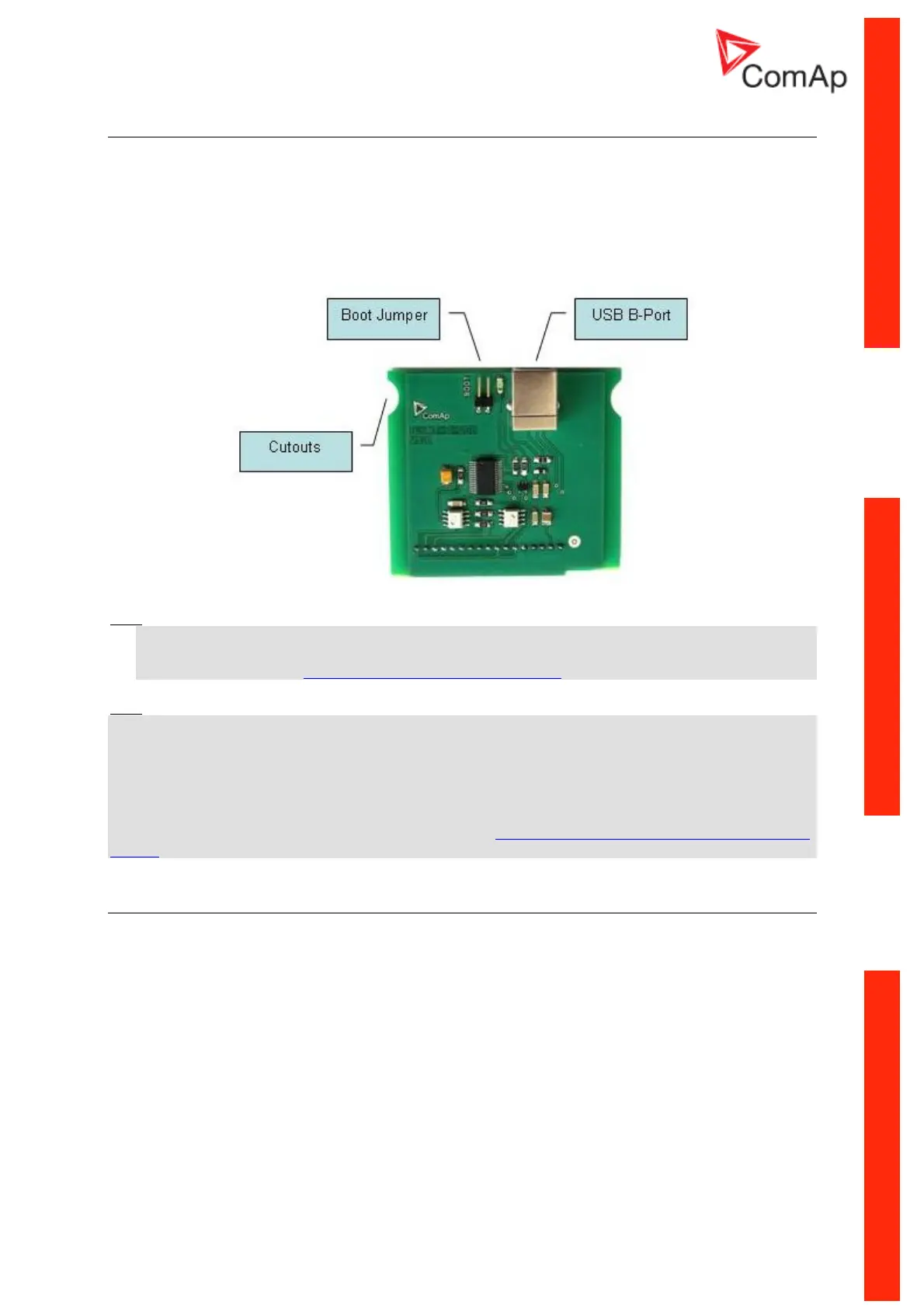

IL-NT S-USB Service USB communication plug-in card
IL-NT S-USB is optional plug-in card to enable InteliLite
NT
for communication via USB port. This is
required for computer or Modbus connecting. Card inserts into expansion slot back on the controller.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the
module into slot. Once you have inserted it, part of the module will remain over plastic box. It is
supposed to be used as a service tool. When you need to remove it, grab module in cutouts and pull it
up manually.
Hint:
- Use the shielded USB A-B cable with this module! Recommended is ComAp cable – Order
code: “USB-LINK CABLE 1.8M”.
- Please see chapter IL-NT S-USB interface (optional card) for technical details.
Hint:
Boot jumper programming – In case of interrupted programming or other software failure is possible to
use the boot jumper programing to restore controller to working order. Connect controller to PC, run
LiteEdit and wait until connection bar at bottom turns red. Than run programming process via menu
Controller -> Programming and cloning – Programming. Select correct firmware and confirm dialog.
Than follow instructions in LiteEdit.
Or follow video guide “Boot Jumper Programming“ at http://www.comap.cz/support/training/training-
videos/.
IB-Lite Ethernet communication plug-in card
IB-Lite is a plug-in card with Ethernet 10/100 Mbit interface in RJ45 connector. The card is internally
connected to both COM1 and COM2 serial channels and provides an interface for connecting a PC
with LiteEdit or InteliMonitor through ethernet/internet network, for sending active e-mails and for
integration of the controller into a building management (Modbus TCP protocol).
This card also enables to monitor and control the genset over web browser from any location with
internet access using appropriate security measures.
Card inserts into expansion slot back on the controller. To insert the module, please follow the
instructions for IL-NT RS232 module, procedure is analogous.
