Indicator LEDs
Power and Watchdog LEDs

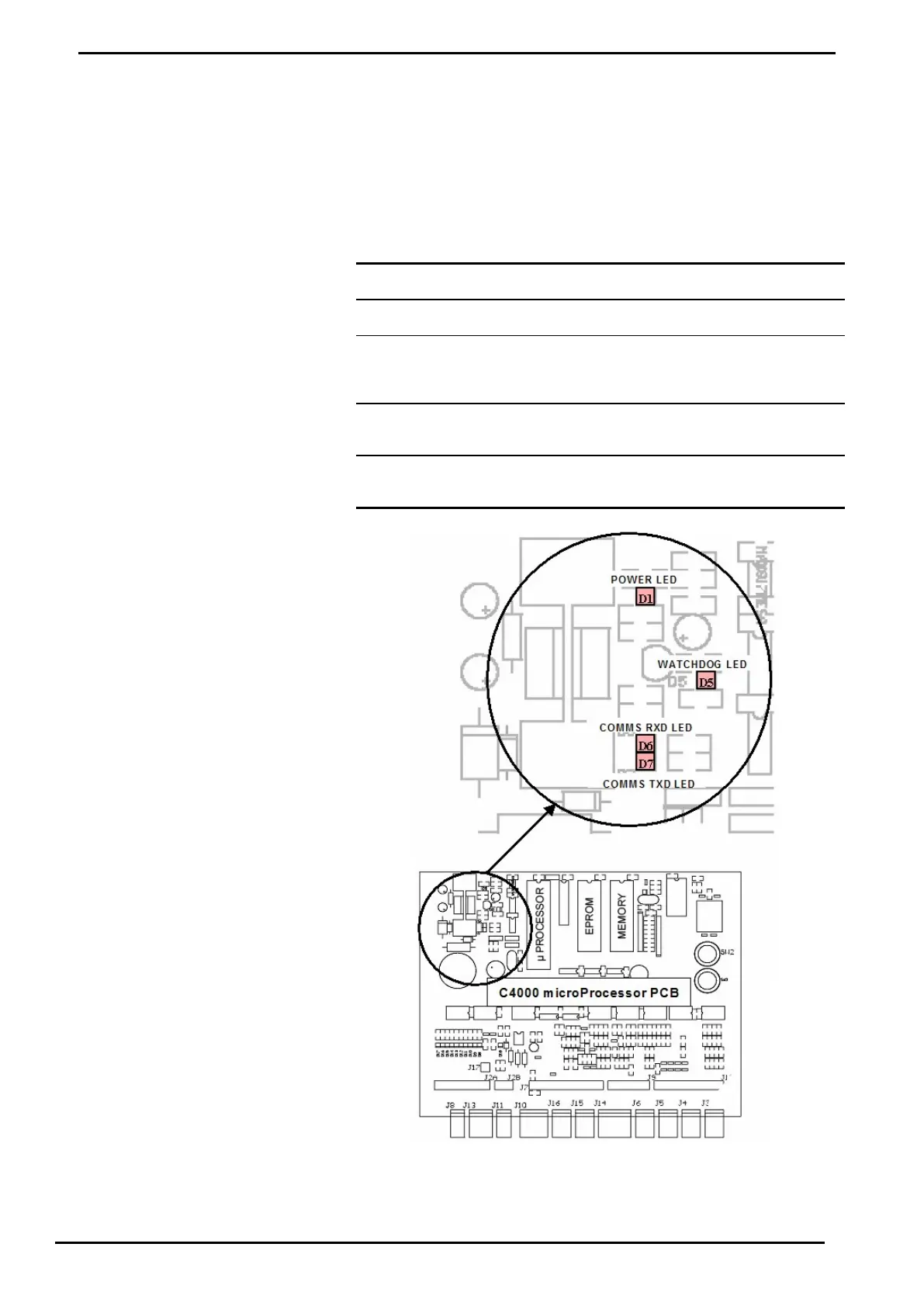

The power, watchdog, comms RXD and TXD LEDs indicate the
operational state of the loading post.
LED Indicators
LED
Reference
Lit When
Power
D1
The processor board has power.(on)
Watchdog
D5
The watchdog circuit has been triggered. This
indicates that there is a fault on the processor
board.(on)
RXD
D6
Polling information has been received. (flashes
on/off)
TXD
D7
The C4000 processor responds to polls for its
respective hose number(s).(flashes on/off)
