Cub Cadet 7304 Parts Manual

-11-
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.
1 603-0663 Link Assembly, Feedback ......... 1
2 603-04091 Link Assembly, Input ................. 1
3 603-04085 Link, HI-LO Shifter ..................... 1
4 703-3360 Link, Feedback .......................... 1
5 703-3610 Bracket, Lift Brace ..................... 1
6 703-04084 Bracket, Valve Mtg. ................... 1
7 703-3698A Handle, HI-LO Shifter ................ 1
8 703-3762 Bracket, Lift Mtg. ....................... 1
9 703-3763A Handle, Lift ................................ 1
10 710-0564 Screw, Hex Cap, .......................
1/4-20 x 2.75 GR5
3
11 710-0607 Screw, Hex Wash Hd. Tapp ......
5/16-18 x .5
7
12 710-3008 Screw, Hex Cap, .......................
5/16-18 x .75 GR5
2
13 711-1316 Ferrule, Feedback Adjustment .. 2
14 711-1612 Pin, .25 x 1.0 ............................. 1
15 711-1614 Link, Valve ................................. 1
16 712-0324 Nut, Hex Nylon Insert Lock .......
14-20 GR8
7
17 712-3004A Nut, Hex Flange Lock, ...............
5/16-18 GR5
2
18 712-3029 Nut, Hex Jam, 1/2-20 GR5 ........ 2
19 715-0120 Pin, Spirol, 3/16 x 1.0 ................ 1
20 718-3130 Valve, Hydaulic Lift .................... 1
21 723-3013 Washer, Friction, .515 x 1.5 x .12 1
22 731-3321 Grip, Handle .............................. 2
23 732-0330 Spring, Compression ................. 1
24 732-0499 Spring, Compression ................. 1
25 736-3019 Washer, Flat, .531 x 1.062 x .134 1
26 736-3022 Washer, Belleville, .....................
.53 x 1.375 x .06
2
27 719-3013 Clevis, Adjustment .................... 1
28 741-3084 Bearing, Nylon Flange .75 ID .... 2
29 747-3394 Rod, Feedback .......................... 1
30 747-04131 Rod, Hi-LO Connecting ............. 1
31 603-04086 Shaft, Hi-Lo Shifter .................... 1
32 712-3058 Nut, Hex Nylon Lock, 1/2-20 ..... 1
33 714-0104 Pin, Internal Cotter .................... 2
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.

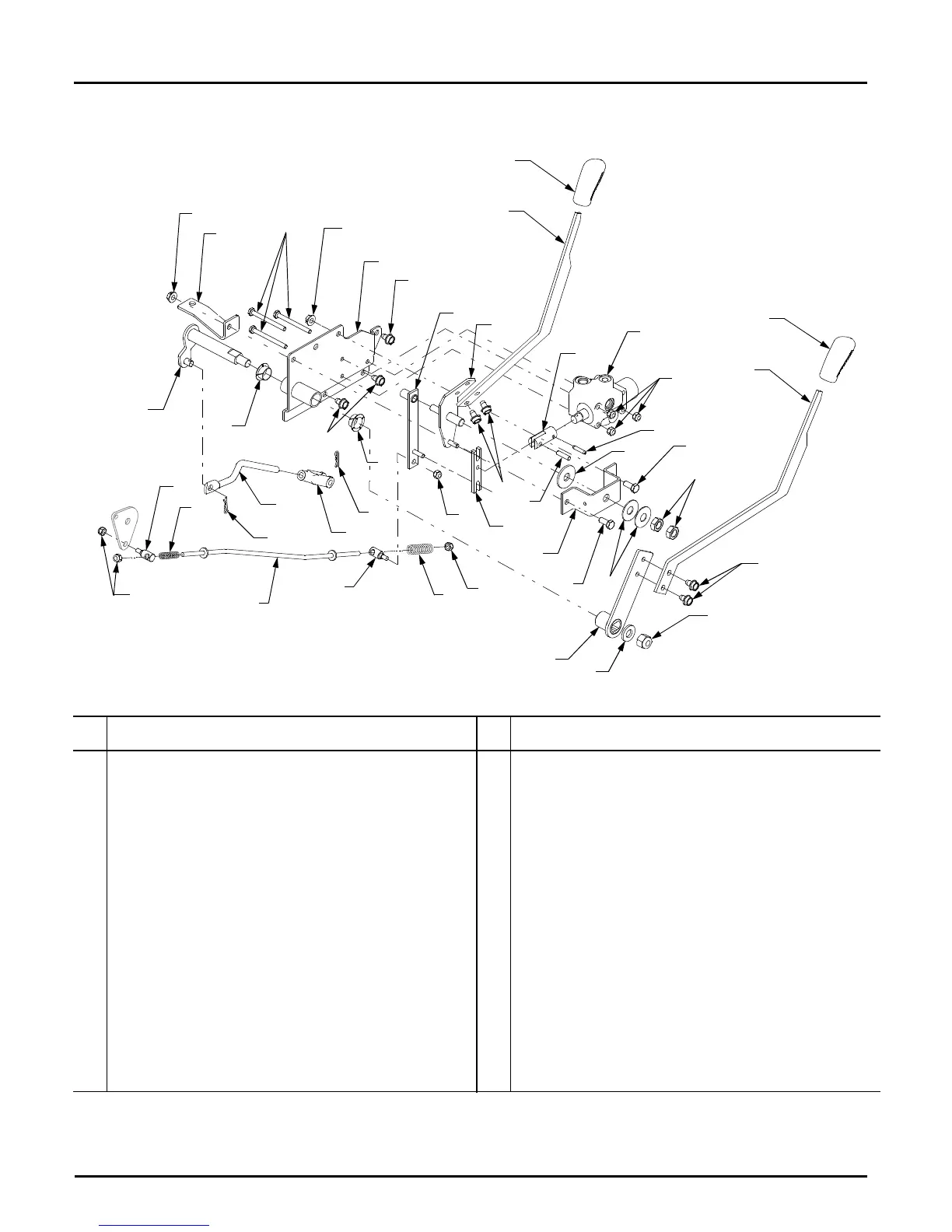

LIFT VALVE AND POSITION CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
29
11
11
11
12
13
17
16
16
16
22
28
30
27
31
32
33
33
