Cub Cadet 7304 Parts Manual

-28-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
8
8
8
12
12
13

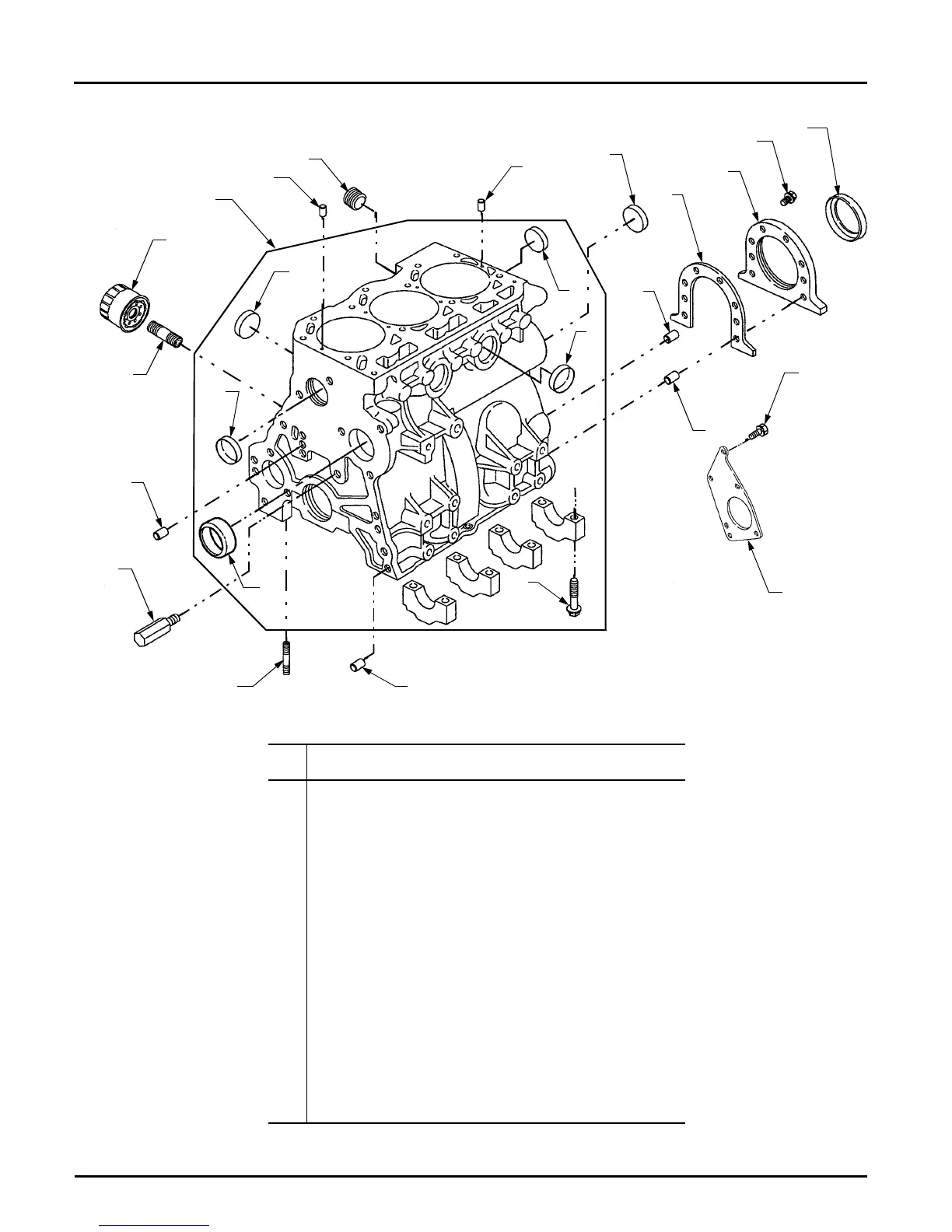

CYLINDER ASSEMBLY
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 BS-825496 Cylinder Assembly (Includes 2,6 & 8) 1
2 BS-820129 Bushing ............................................ 1
3 BS-820056 Seal, Oil ........................................... 1
4 BS-820031 Screw, Hex, 6mm ............................ 6
5 BS-820176 Screw, Hex, 10mm .......................... 5
6 BS-820042 Screw, Hex, 10mm .......................... 8
7 BS-820016 Stud, Metric ..................................... 1
8 BS-820004 Plug, Welch ..................................... 7
9 BS-821069 Plug, Welch Camshaft ..................... 1
10 BS-820375 Plug, Cylinder Block ........................ 1
11 BS-820147 Bracket, Mounting ............................ 1
12 BS-820063 Pin, Locating .................................... 4
13 BS-820264 Pin, Locating .................................... 3
14 BS-820061 Pin, Locating .................................... 2
15 BS-820314 Filter, Oil .......................................... 1
16 BS-820851 Adapter, Oil Filter ............................. 1
17 BS-820102 Nozzle, Oil ....................................... 1
18 BS-820145 Gasket, Retainer .............................. 1
19 BS-820146 Seal, Retainer .................................. 1
