Cub Cadet 7304 Parts Manual

-46-
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.
1 603-0860 0637 Support, Seat - Upper ..................... 1
2 603-0866 Track Ass’y., Seat w/Latch .............. 1
3 703-3208 Track Ass’y., Seat w/o Latch ........... 1
4 703-3681A Tray, Lower Seat ............................. 1
5 703-3711 Bracket, Seat Belt ........................... 2
6 710-0376 Screw, Hex Cap, 5/16-18 x 1.0 GR5 2
7 710-0451 Screw, Carriage, 5/16-18 x .75 4
8 710-0528 Screw, Hex Cap, 5/16-18 x 1.25 GR5 2
9 710-0759 Screw, Hex Flange, .........................
5/16-18 x .625 GR5
4
10 710-3250 Screw, Socket Hd Cap, 5/16-18 x 1.5 4
11 712-3004A Nut, Hex Flange Lock, 5/16-18 ........ 12
12 725-3167 Switch, Snap Mount (N.O.) .............. 1
13 732-3080A Spring, Compression, 1.28 x 3.5 ..... 2
14 738-0140 Screw, Shoulder, .435 x .178-5/16-18 4
15 750-0258 Spacer, .315 x .750 x .375 .............. 4
16 757-04006
777D04541
777D01782
Seat, High Back ..............................
Graphic, Cub Cadet .....................
Graphic, USA ...............................
1
1
1
17 757-3013 Belt Assembly, Seat ........................ 1

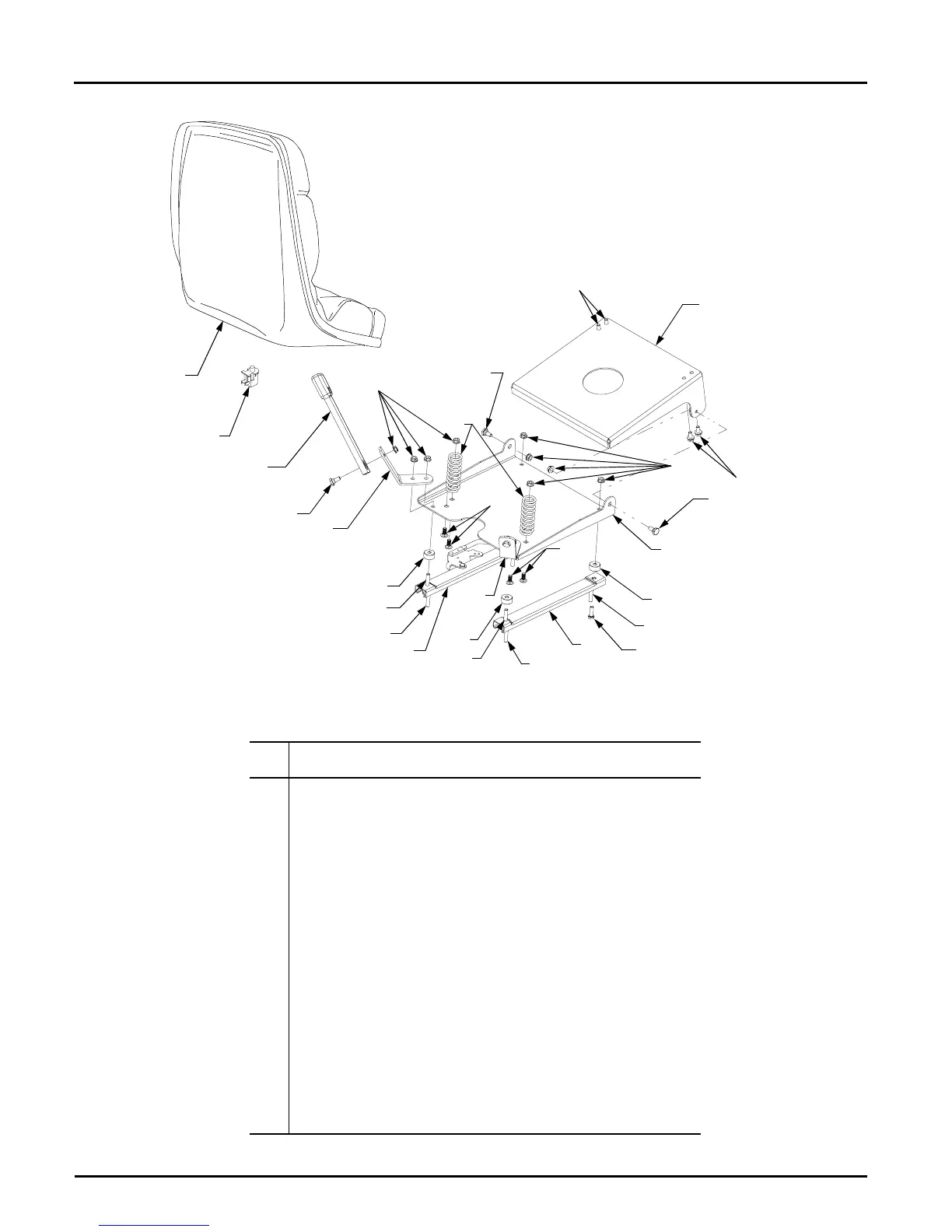

SEAT ASSEMBLY
13
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
5
8
10
10
11
14
15
15
14
7
9
