Cub Cadet 7304 Parts Manual

-31-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

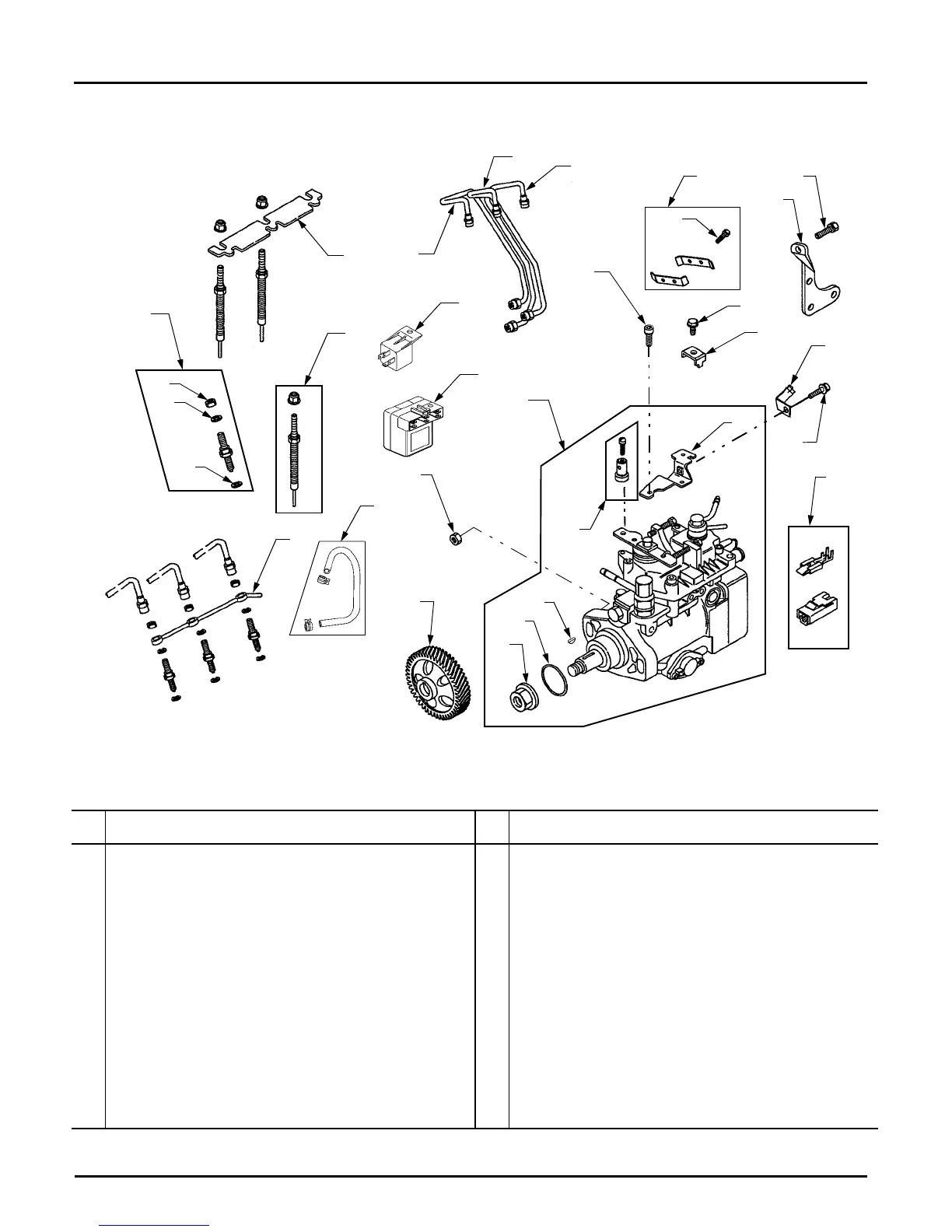

FUEL INJECTION SYSTEM
28
27
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 BS-820031 Screw, Hex, 6mm ............................ 2
2 BS-820414 Seal, O-Ring .................................... 1
3 BS-820417 Nut, Hex Metric ................................ 2
4 BS-820419 Nut, Hex Metric ................................ 1
5 BS-820634 Bracket, Casing Clamp .................... 1
6 BS-691024 Clamp, Casing ................................. 1
7 BS-820012 Screw, Casing Clamp ...................... 1
8 BS-820593 Screw, Support Bracket ................... 1
9 BS-820272 Screw, Support Bracket ................... 4
10 BS-820619 Gear, Drive ...................................... 1
11 BS-825197 Clamp .............................................. 1
12 BS-820415 Bracket, Support .............................. 1
13 BS-820479 Bracket, Support .............................. 1
14 BS-820640 Screw, Casing Clamp Bracket ......... 1
15 BS-820467 Clamp, Swivel .................................. 1
16 BS-825179 Hose/Clamp Ass’y., Fuel Return ..... 1
17 BS-825266 Connector, Injection Pump .............. 1
18 BS-825176 Plug, Glow ....................................... 3
19 BS-820409 Strap, Glow Plug .............................. 1
20 BS-825178 Nozzle, Injector ................................ 3
21 BS-820411 Seat, Injector ................................... 3
22 BS-825194 Pipe, Injector #1 ............................... 1
23 BS-825195 Pipe, Injector #2 ............................... 1
24 BS-825196 Pipe, Injector #3 ............................... 1
25 BS-825518 Pump, Injection ................................ 1
26 BS-820412 Pipe, Fuel Return ............................. 1
27 BS-820829 Nut, Hex Injector Nozzle .................. 3
28 BS-820831 Washer, Injector Nozzle .................. 3
29 BS-821064 Key, Woodruff .................................. 1
30 BS-820373 Module, Pre Heat ............................. 1
31 BS-820455 Relay ............................................... 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
29
30
31
