Flow Diagram

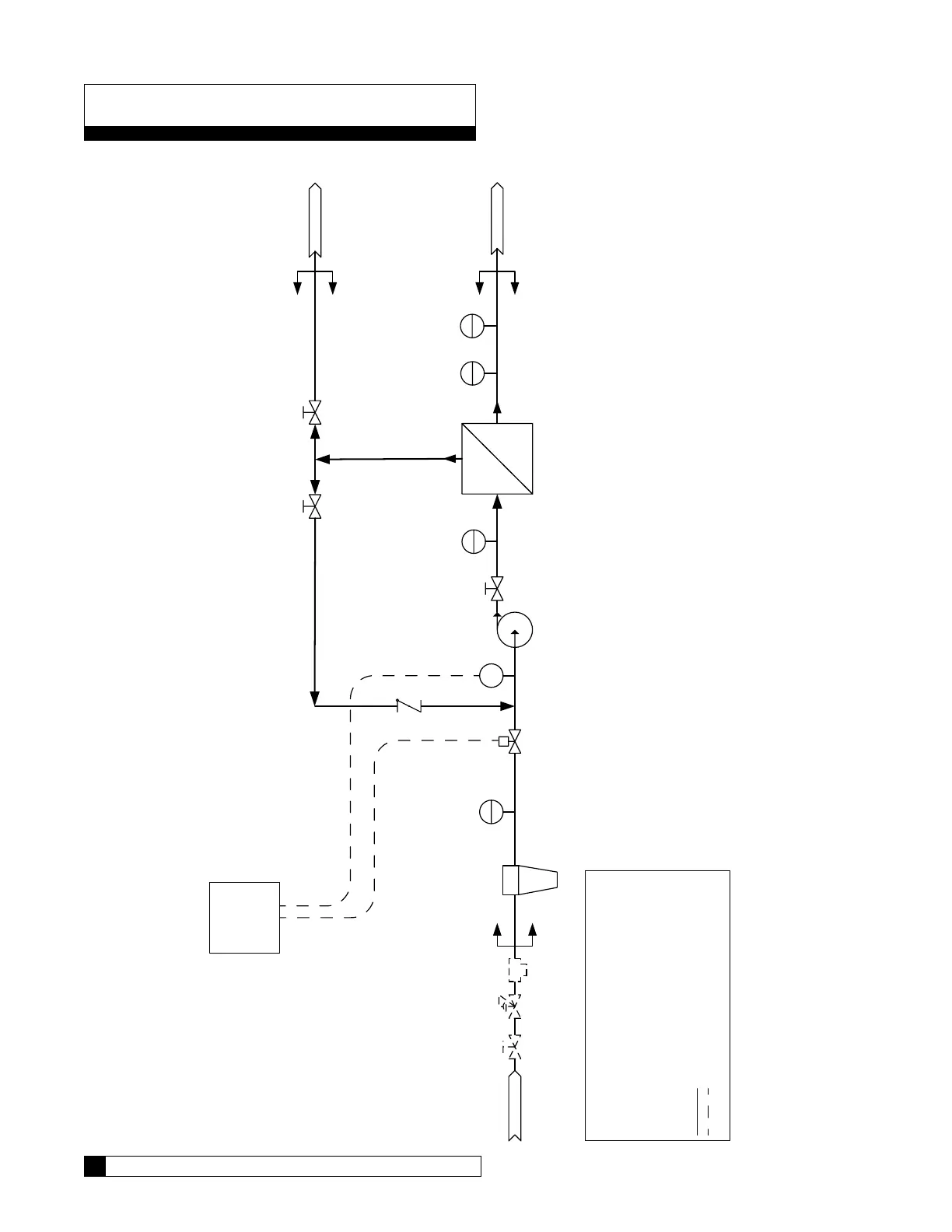

Process Flow Diagram
FEED
MANUAL
SHUTOFF
VALVE
(CUSTOMER
SUPPLIED)
UNIT
CONTROLLER
FI
MEMBRANEHOUSING(S)
PS
PUMP/MOTOR
PI
HCV-3 HCV-2
CONCENTRATE
FILTER
UNIT
PRODUCT
UNIT
FI
LEGEND PI PRESSURE INDICATOR PS PRESSURE SWITCH HCV HAND CONTROLVALVE SV SOLENOID VALVE TDSTDS PROBE FI FLOW INDICATOR FS FLOW SENSOR CV CHECKVALVE CIPCLEAN IN PLACE
CONNECTION TO PROCESS OR INSTRUMENTSUPPLY
ELECTRICAL
PRESSURE
REGULATOR
(CUSTOMER
SUPPLIED)
FI-1 SV-1 PS-1
PI-1
FI-2
CIP
HCV-1
S
CV-1
TDS
TDS
