E2 Plus RO Parts Diagrams and Lists
Series E2 Plus Major Components and Water Connections, 208-230V/ 60
Hz, U.S.
Pump
Waste and Recirculation
Control Valves
Feed and Product
Flow Meters
Pump Pressure
Gauge
Filter
Arrays
Front Panel
Assembly
Prefilter
Throttling
Valve
1
3
2
Filter
Arrays

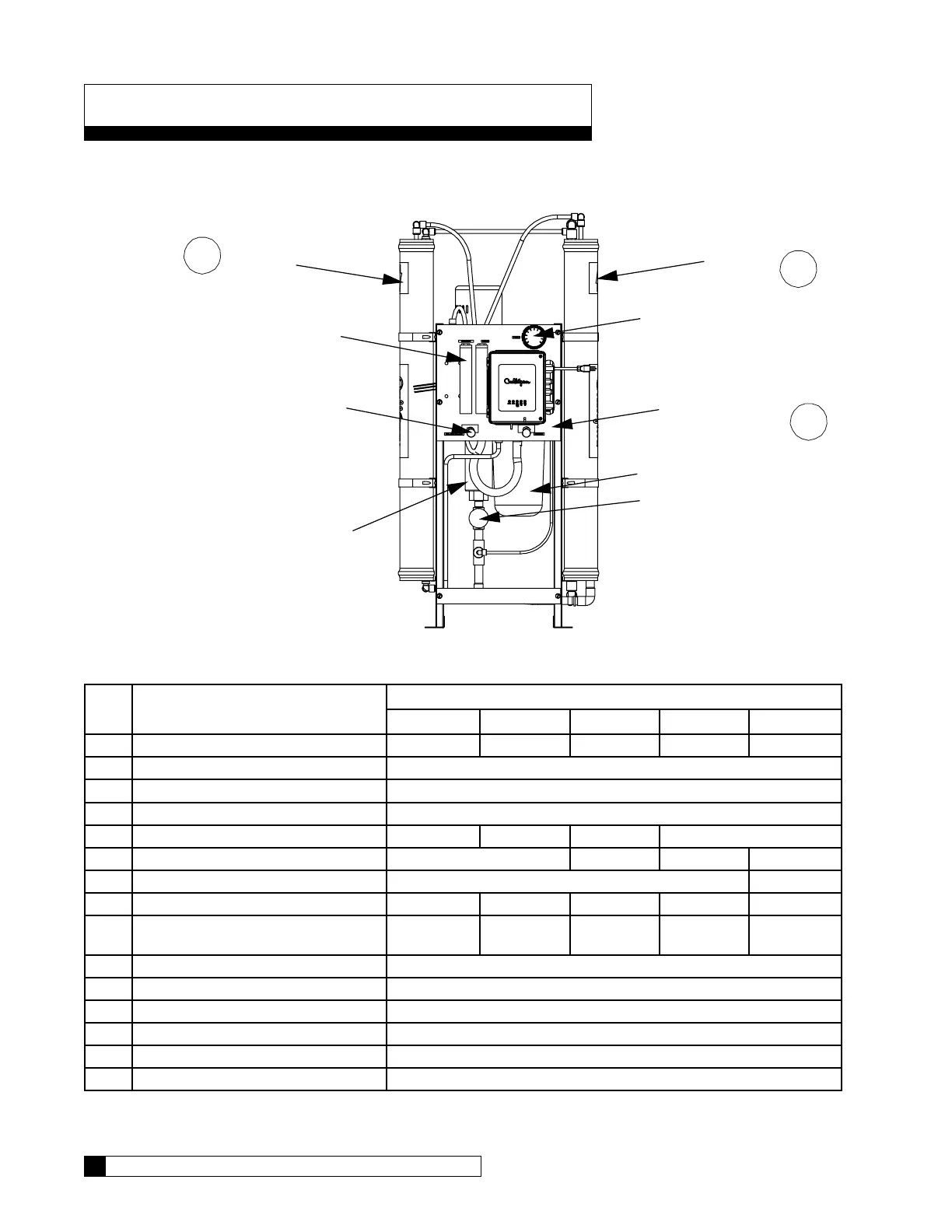

Figure 11. E2 Plus RO front view.
Item Description Part Number
E2-2 Plus E2-3 Plus E2-4 Plus E2-5 Plus E2-6 Plus
— RO System, E2 Plus 01022839 01022840 01022841 01022842 01022843
1 Assembly, Generic, E2 Plus 01023797
Assembly, Side, Pump, E2 Plus 01023794
Assembly, Side, Filter, E2 Plus 01023795
2 Filter Array, 2-2 01021963 01021963
3 Filter Array, 2-1 01021927 01021927
2 Filter Array, 3-2 01021962
3 Filter Array, 3-1 01021928 01021928 01021928
Membrane, 4”x40” 01024290
(2)
01024290
(3)
01024290
(4)
01024290
(5)
01024290
(6)
8 Cartridge Filter, 5 micron, 10” BB 00403232
18 Gate Valve 01021544
Controller 01024598
Piping Feed 01022959
Piping Concentrate 01022958
Piping Product 01021941
