D-Link AC1200 User Manual

DIR-842V2 AC1200 Wi-Fi Gigabit Router
User Manual
Installation and Connection
Page 35
6. Make sure that the Obtain an IP address automatically and Obtain DNS server
address automatically choices of the radio buttons are selected. Click the OK button.

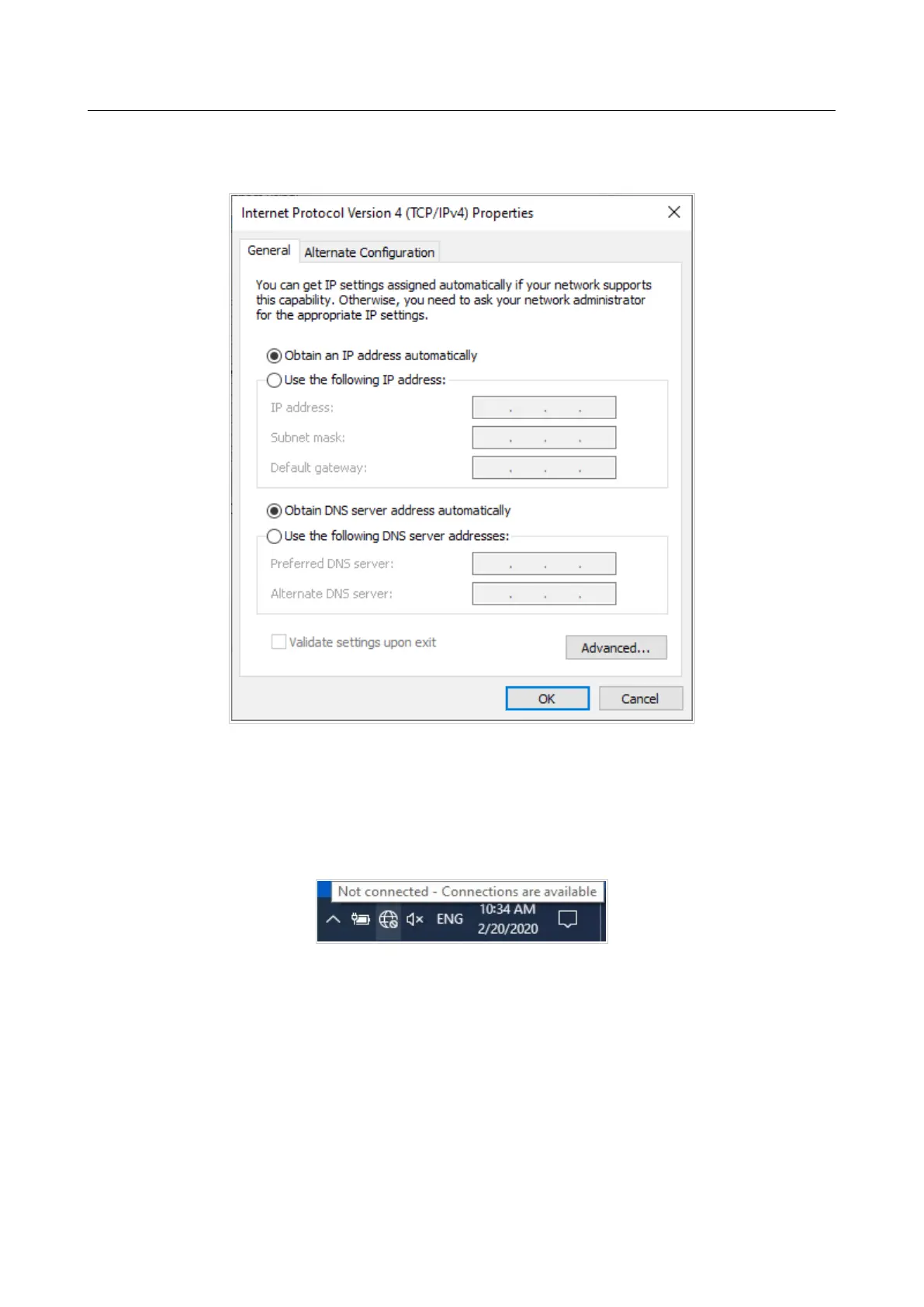

Figure 18. The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7. Click the Close button in the connection properties window.
8. To open the list of available wireless networks, select the icon of the wireless network
connection and click the Connect To button or left-click the network icon in the
notification area located on the right side of the taskbar.
Figure 19. The notification area of the taskbar.

D-Link AC1200 Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC B, IC
Product color	Black
LED indicators	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	867 Mbit/s
Output voltage	5 V
Power consumption	500 mA
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	138 mm
Package height	40 mm
Package weight	20 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	2025 mm
Pallet gross weight (air)	447400 g
Quantity per pallet (air)	1920 pc(s)
Harmonized System (HS) code	85176990
Shipping (inner) case width	292 mm
Shipping (inner) case height	300 mm
Shipping (inner) case length	425 mm
Shipping (inner) case weight	8800 g
Shipping (inner) case net weight	8000 g
Number of cartons per pallet (air)	48 pc(s)
Quantity per shipping (inner) case	40 pc(s)

Weight and Dimensions

Depth	97.3 mm
Width	29.1 mm
Height	13.5 mm
Weight	20.5 g
