D-Link DCH-M225 User Manual

33D-Link DCH-M225 User Manual
Section 3 - Conguration

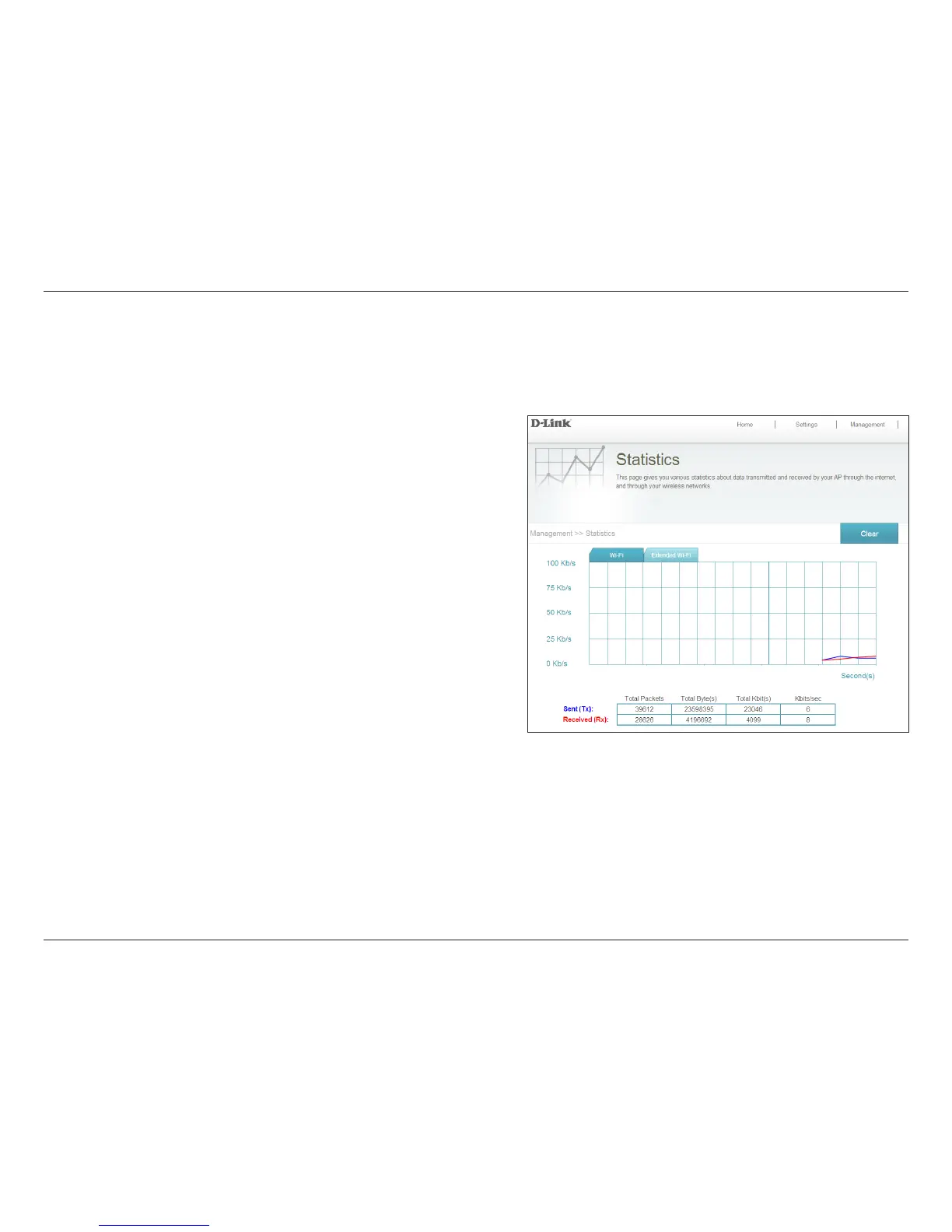

This page displays trac statistics about data transmitted and received. To access this page from the Home page, click on the
Management drop-down menu at the top of the page, and select Statistics.
Statistics
Wi-Fi:
Extended
Wi-Fi:
Clear:
Click on the Wi-Fi tab to display the statistics for the connection
between the DCH-M225 and the uplink router.
Click on the Extended Wi-Fi tab to display the statistics for the
connection between the DCH-M225 and any connected clients.
Click the Clear button to reset the statistics.

D-Link DCH-M225 Specifications

General

Type	AV transmitter
Antenna type	Internal
Certification	FCC\\r IC\\r Wi-Fi Certified\\r CE
Product color	White
LED indicators	Yes
Maximum resolution	- pixels
Compatible products	DLNA, AirPlay
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
Audio input	1
Frequency	2400 MHz
Connector(s)	3.5mm Audio
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	110-125 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Weight	81.6 g
Dimensions (WxDxH)	54.1 x 41.9 x 54.61 mm
