D-Link DCS-2332L User Manual

51D-Link DCS-2332L User Manual
Section 4: Conguration

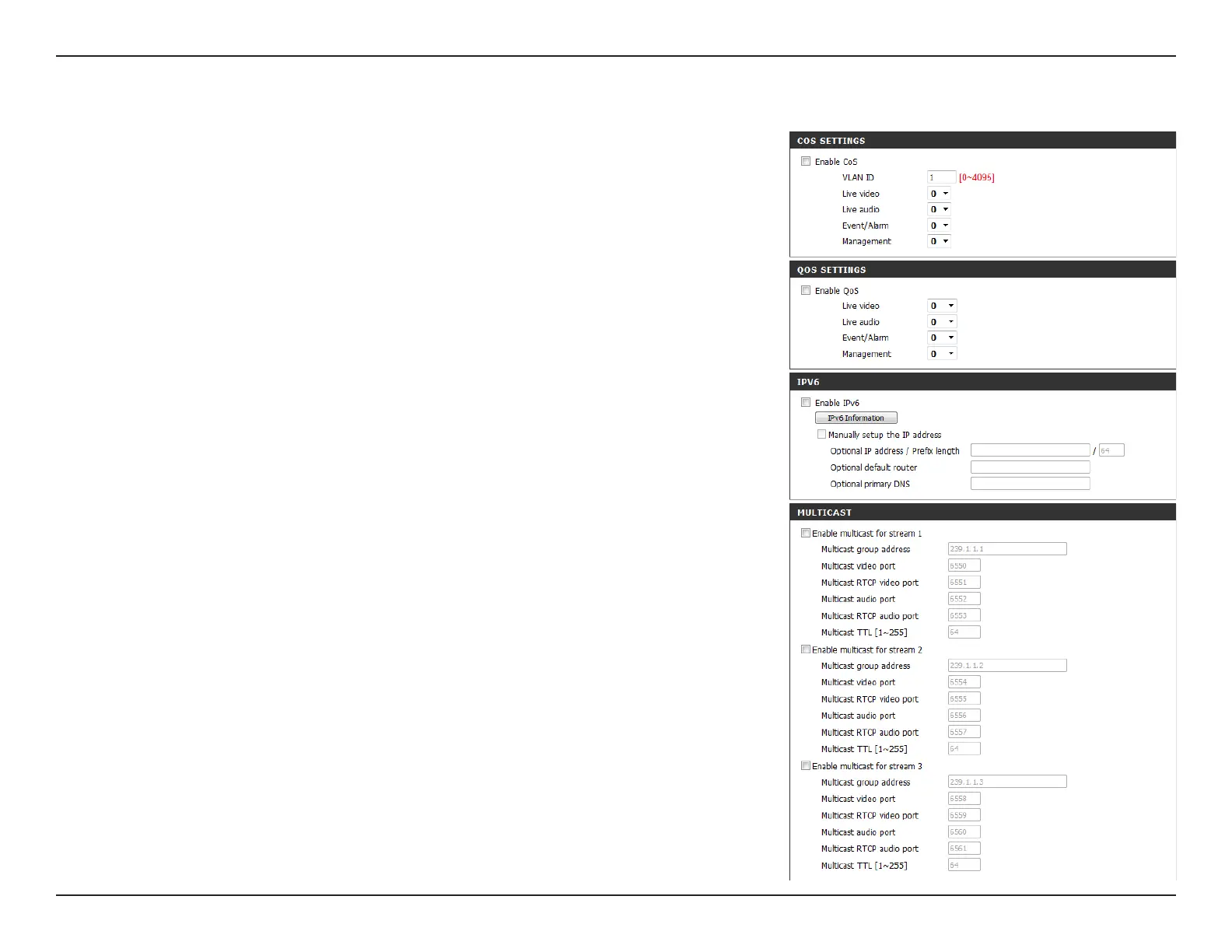

CoS Settings:
QoS Settings:
IPv6:
Multicast:
Enabling the Class of Service setting implements
a best-eort policy without making any bandwidth
reservations.
Enabling QoS allows you to specify a trac priority
policy to ensure a consistent Quality of Service during
busy periods. If the Network Camera is connected to a
router that itself implements QoS, the router's settings
will override the QoS settings of the camera.
Enable the IPv6 setting to use the IPv6 protocol. Enabling
the option allows you to manually set up the address,
specify an optional IP address, specify an optional router
and an optional primary DNS.
The DCS-2332L allows you to multicast each of the
available streams via group address and specify the TTL
value for each stream. Enter the port and TTL settings
you wish to use if you do not want to use the defaults.

D-Link DCS-2332L Specifications

General

Maximum resolution	1280 x 800 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Minimum illumination	- lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Video motion detection	Yes
Built-in HDD	No
Compatible memory cards	SD, SDHC
Type	IP security camera
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Outdoor
Connectivity technology	Wireless
Form factor	Box
Product color	Black, White
Protection features	Water resistant
International Protection (IP) code	IP65
Browser supported	Internet Explorer, Firefox, Chrome
Audio system	2-way
Supported network protocols	TCP/IP
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.3 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	45.7 mm
Width	66 mm
Height	105.1 mm
Weight	255 g
