Mounting the Switch on the Wall

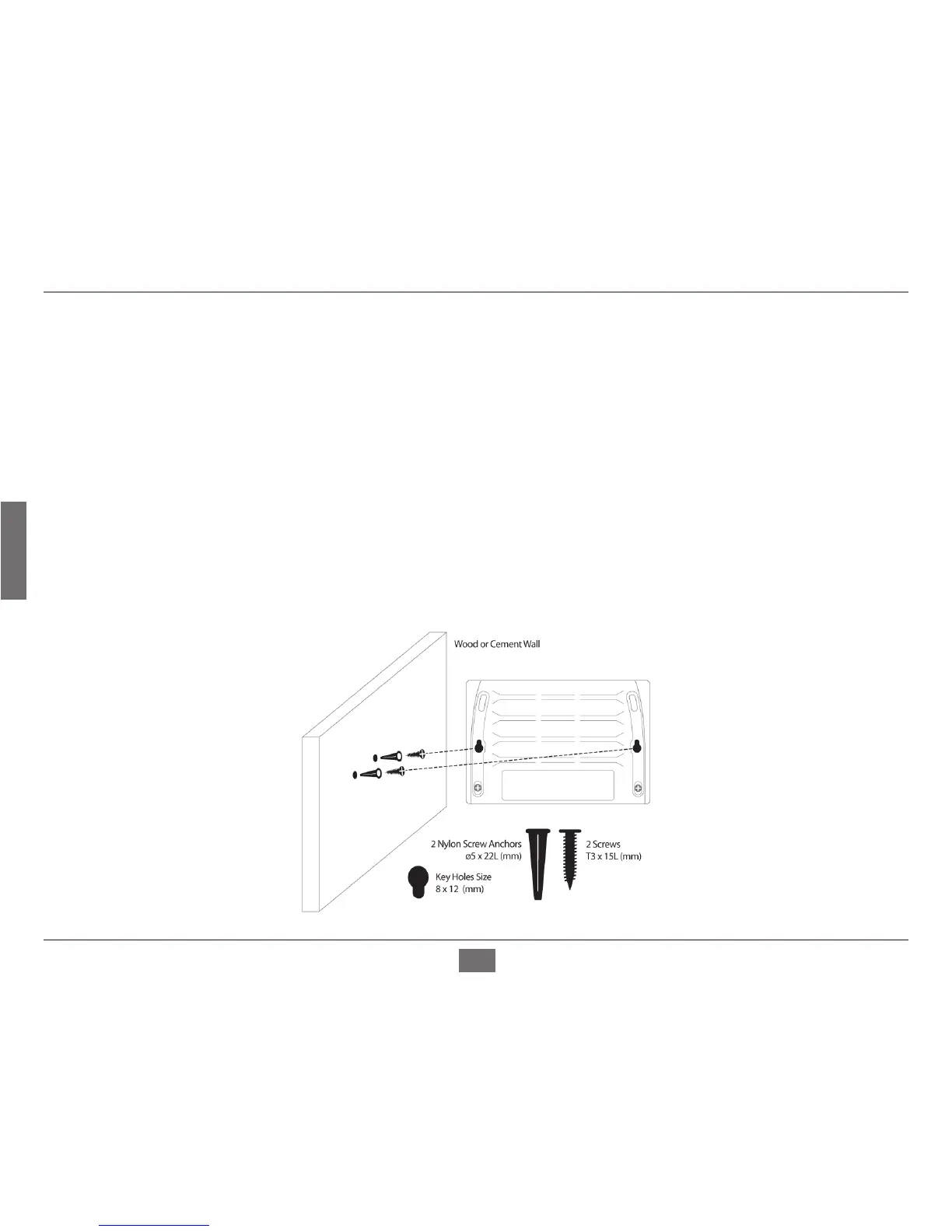

The DES-1005E can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this purpose. Please make sure
that the front panel is exposed in order to view the LEDs. Please refer to the illustration below:
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws.
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws.
(1) 3/4 inch minimum for wood wall
(2) 3 inch minimum for cement wall.
Mounting on a cement wall
Mounting on a wood wall

D-Link DES-1005E Specifications

Data Transfer Rates

Ethernet data transfer rate (half duplex)	10 Mbps
Ethernet data transfer rate (full duplex)	20 Mbps
Fast Ethernet data transfer rate (half duplex)	100 Mbps
Fast Ethernet data transfer rate (full duplex)	200 Mbps

Power

external power adapter	5V/1.2A
power consumption (standby, DC input)	0.6 watts
power consumption (standby, AC input)	1.4 watts
power consumption (maximum, DC input)	3.3 watts
power consumption (maximum, AC input)	5.2 watts

Heat Dissipation

heat dissipation (standby, AC input)	6.138 BTU/h
heat dissipation (maximum, AC input)	12.958 BTU/h

Operating Environment

operating temperature	0 to 50 ˚C (32 to 122 ˚F)
storage temperature	-10 to 70 ˚C (14 to 158 ˚F)
operating humidity	10% to 90% RH Non-Condensing
storage humidity	5% to 90% RH Non-Condensing

Weight and Dimensions

dimensions (W x D x H)	5.0” x 3.3” x 1.2” (125.3 x 83.4 x 29.1 mm)
