5 Configuration D-Link Web Smart Switch User Manual
Port: Enter a range of ports to be configured.
Press Apply for the settings to take effect.
NOTE: Once the ACL rules conflict, rules with
smaller rule ID will take higher priority.
NOTE: Be careful when configuring ACL rules, an
inappropriate may cause management access
failed.
ACL > ACL Profile List
The ACL Profile List provides information for configuring ACL Profiles manually. ACL profiles are attached to
interfaces, and define how packets are forwarded if they match the ACL criteria.

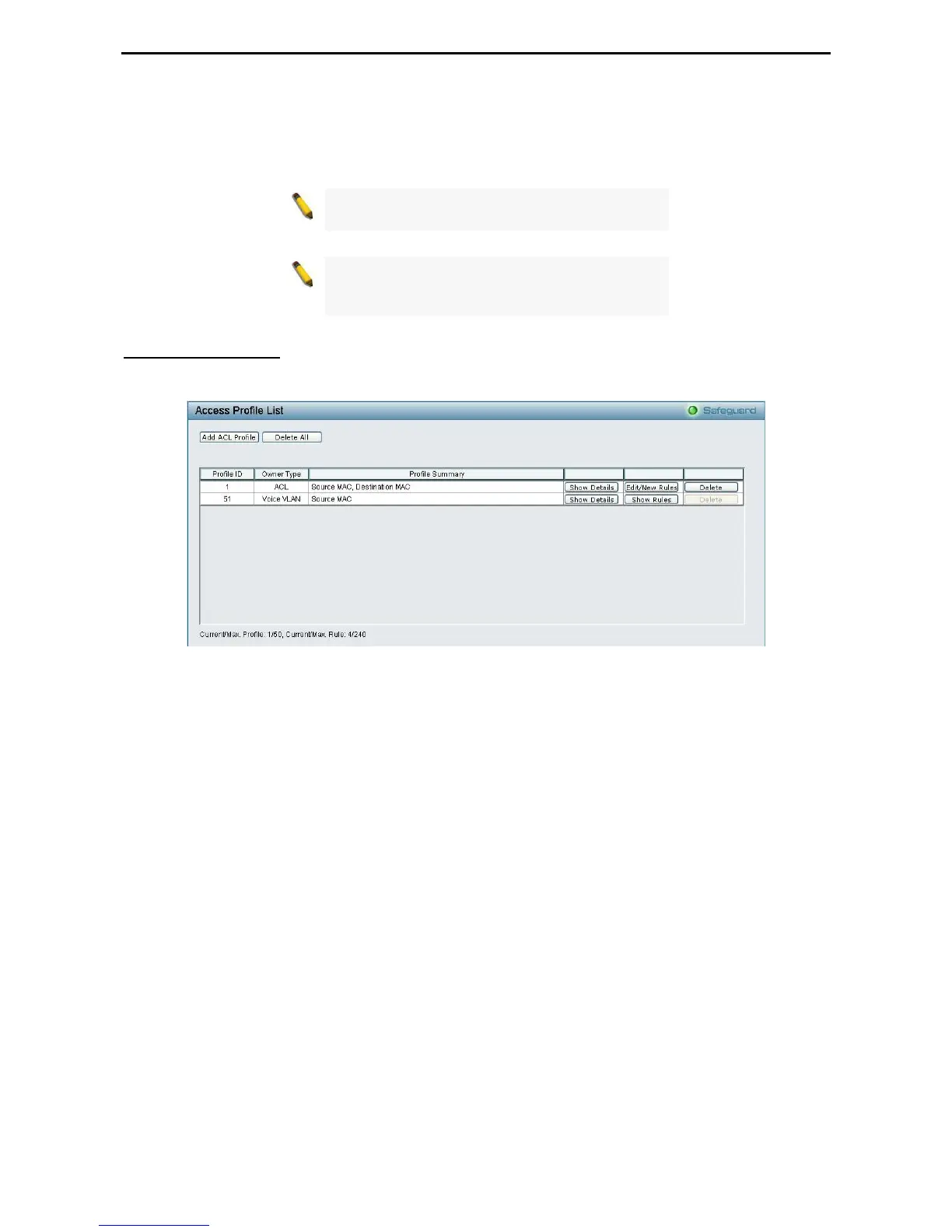

Figure 84 – ACL > ACL Profile List
The contents of Access Profile List table include:
Profile ID: Indicates the profile Identification number. The possible configured profile IDs are 1~50, and
profile ID 51 is reserved for Voice VLAN.
Owner Type: The owner type of ACL profile; it can be normal ACL or Voice VLAN.
Profile Summary: Displays the profile summary.
Show Details: To display an ACL’s profile details. The ACL profile details are displayed below the ACL table.
Show Rules: To show the access rule in this profile.
Edit / New Rules: To edit or create an access rule in this profile. To add a new rule, please see Access
Rule List in the next section.
Delete: To delete an access profile.
To manually add a profile, click Add ACL Profile:
52
To Next Page
