D-Link DIR-601 User Manual

67D-Link DIR-601 User Manual
Section 3 - Conguration

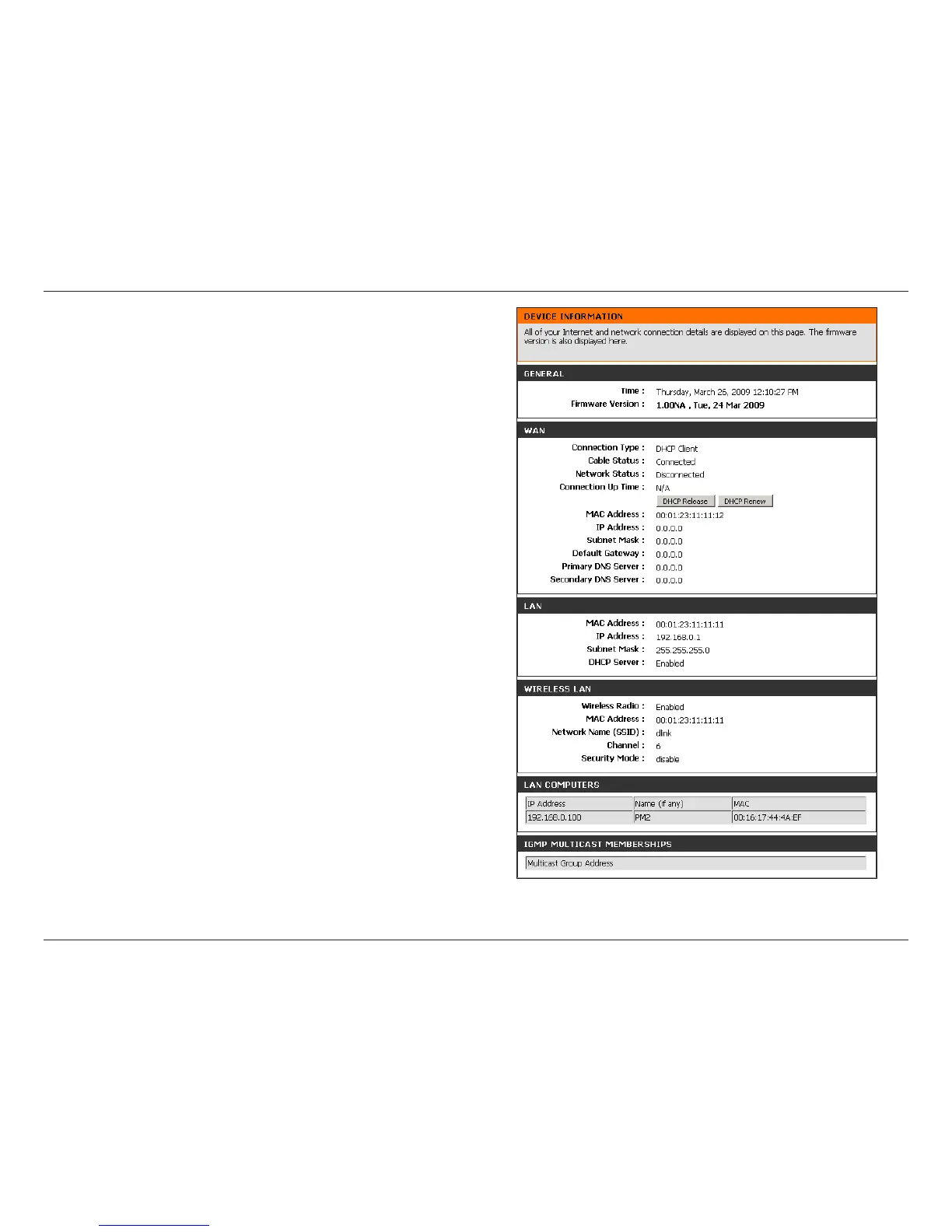

Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings
for the router.
Displays the MAC address and the private (local) IP
settings for the router.
Displays the wireless MAC address and your wireless
settings such as SSID and Channel.
Displays computers and devices that are connected
to the router via Ethernet and that are receiving an IP
address assigned by the router (DHCP).
Displays the Multicast Group IP Address.
General:
WAN:
LAN:
Wireless LAN:
LAN
Computers:
IGMP Multicast
Memberships:

D-Link DIR-601 Specifications

Ports & Interfaces

LAN ports	4 10/100 LAN Ports
WAN port	1 10/100 WAN Port
antenna type	External Antenna

Weight and Dimensions

item dimensions	4.4” x 5.7” x 1.2”
packaging dimensions	8.2” x 10.8” x 2.7”
item weight	0.1 lbs
packaging weight	1.5 lbs
