D-Link DIR-601 User Manual

77D-Link DIR-601 User Manual
Section 4 - Security

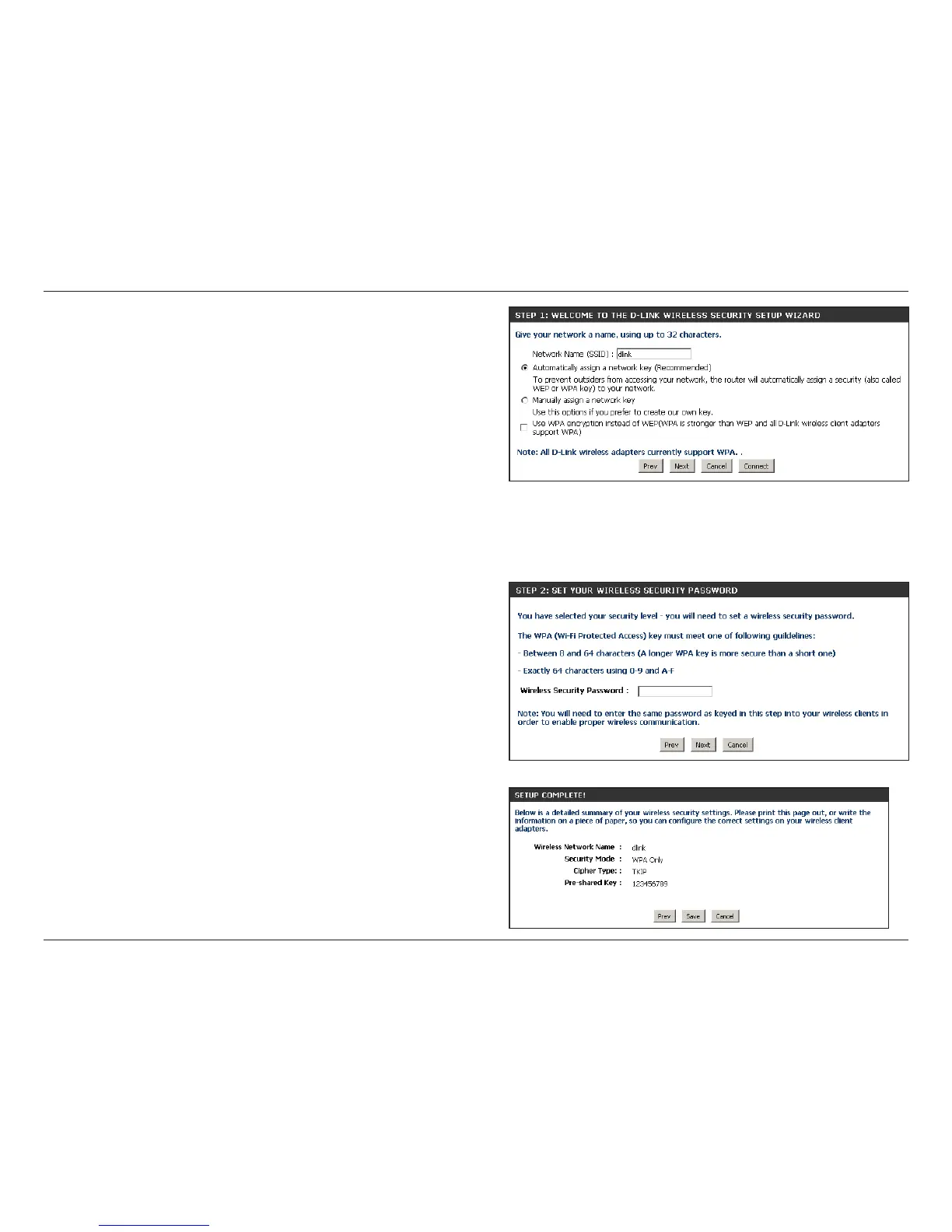

Enter the SSID (Service Set Identier). The SSID is the name of your wireless
network. Create a name using up to 32 characters. The SSID is case-
sensitive.
Select Automatically assign a network key to have the router create a
security key for you or select Manually assign a network key if you would
like to create your own security key or passphrase.
If you want to use WPA, check the Use WPA encryption instead of WEP
box.
If you select Manually assign a network key, enter your encryption key in
the box and click Next to continue. You will need to enter this key on your
wireless clients to connect to the router.
If you selected Automatically, the following screen will show you your
security key to enter on your wireless clients.
Click Save to nish the Security Wizard.

D-Link DIR-601 Specifications

Ports & Interfaces

LAN ports	4 10/100 LAN Ports
WAN port	1 10/100 WAN Port
antenna type	External Antenna

Weight and Dimensions

item dimensions	4.4” x 5.7” x 1.2”
packaging dimensions	8.2” x 10.8” x 2.7”
item weight	0.1 lbs
packaging weight	1.5 lbs
