D-Link DIR-850L User Manual

99D-Link DIR-850L User Manual
Section 3 - Conguration

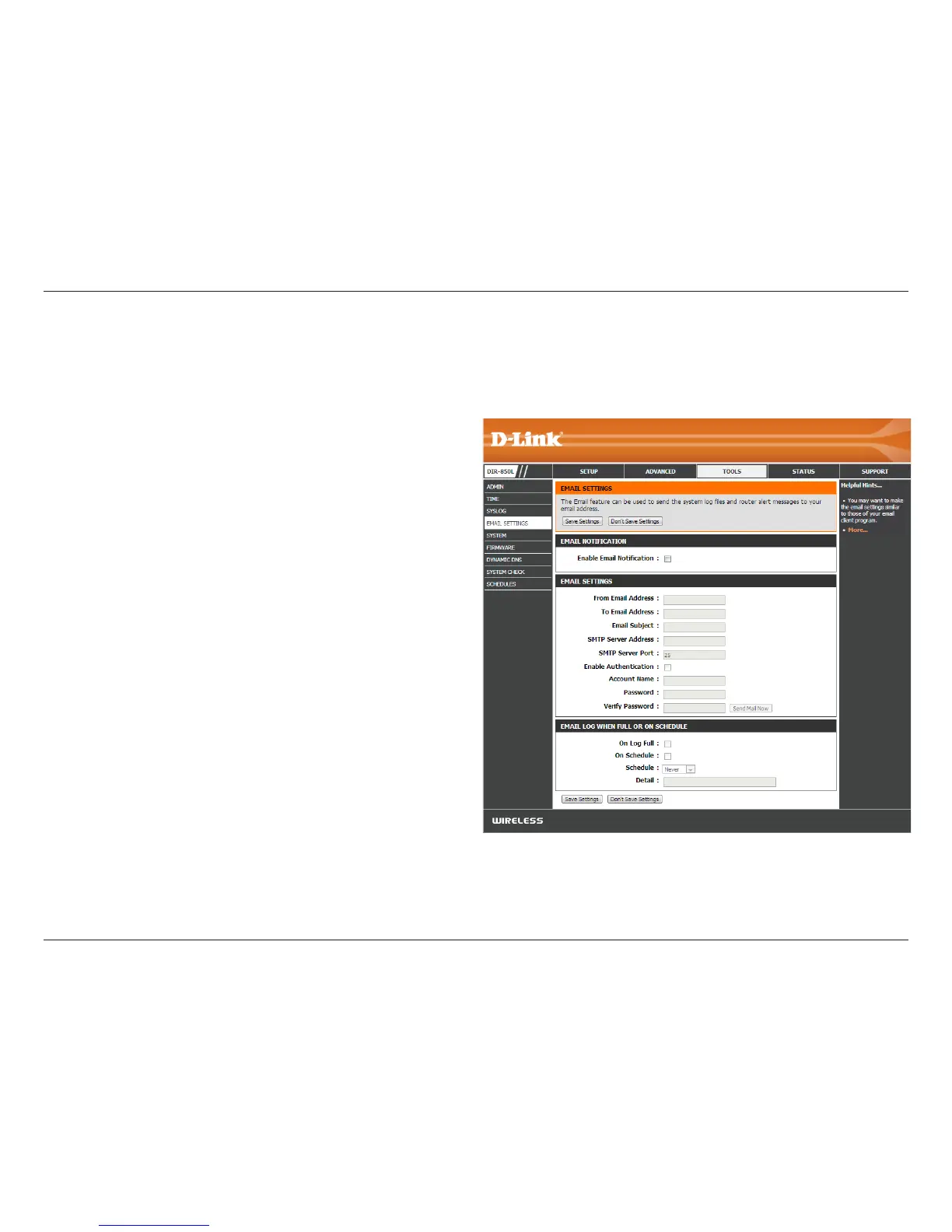

Email Settings
The Email feature can be used to send the system log les, router alert messages, and rmware update notication to your
email address.
Enable Email
Notication:
From Email Address:
To Email Address:
Email Subject:
SMTP Server Address:
SMTP Server Port:
Enable Authentication:
Account Name:
Password:
On Log Full:
On Schedule:
Schedule:
When this option is enabled, router activity logs are emailed to a
designated email address.
This email address will appear as the sender when you receive a log
le or rmware upgrade notication via email.
Enter the email address where you want the email sent.
Add a subject line to your email.
Enter the SMTP server address for sending email.
Enter the SMTP port used on the server.
Check this box if your SMTP server requires authentication.
Enter your account for sending email.
Enter the password associated with the account. Re-type the
password associated with the account.
When this option is selected, logs will be sent via email to your
account when the log is full.
Selecting this option will send the logs via email according to
schedule.
This option is enabled when On Schedule is selected. You can select
a schedule from the list of dened schedules. To create a schedule,
go to Tools > Schedules.

D-Link DIR-850L Specifications

Operating Environment

operating temperature	32 ~ 104 °F (0 ~ 40 °C)
non-operating temperature	-4 ~ 149 °F (-20 ~ 65 °C)
operating humidity	10% - 90% non-condensing

Power

input voltage	100~240 V (±20%), 50~60 Hz
output voltage	DC 12 V
output current	2 A

Wireless Specifications

wireless interface 2.4 GHz	IEEE 802.11b/g/n
wireless interface 5 GHz	IEEE 802.11a/n/ac
antenna type	Two dual-band internal antennas (2.4 GHz and 5 GHz)

Weight and Dimensions

dimensions	93 x 116 x 145 mm (3.7 x 4.6 x 5.76 inches)
weight	330 grams (11.6 ounces)
