D-Link DIR-850L User Manual

85D-Link DIR-850L User Manual
Section 3 - Conguration
Enter a name for the inbound lter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0
if you do not want to specify an IP range.
Enter the ending IP address. Enter
255.255.255.255 if you do not want to
specify and IP range.
Click the Add button to apply your settings.
You must click Save Settings at the top to
save the settings.
This section will list any rules that are
created. You may click the Edit icon to
change the settings or enable/disable the
rule, or click the Delete icon to remove
the rule.
Name:
Action:
Remote IP
Range: Enable:
Remote IP Start:
Remote IP End:
Add:
Inbound Filter
Rules List:

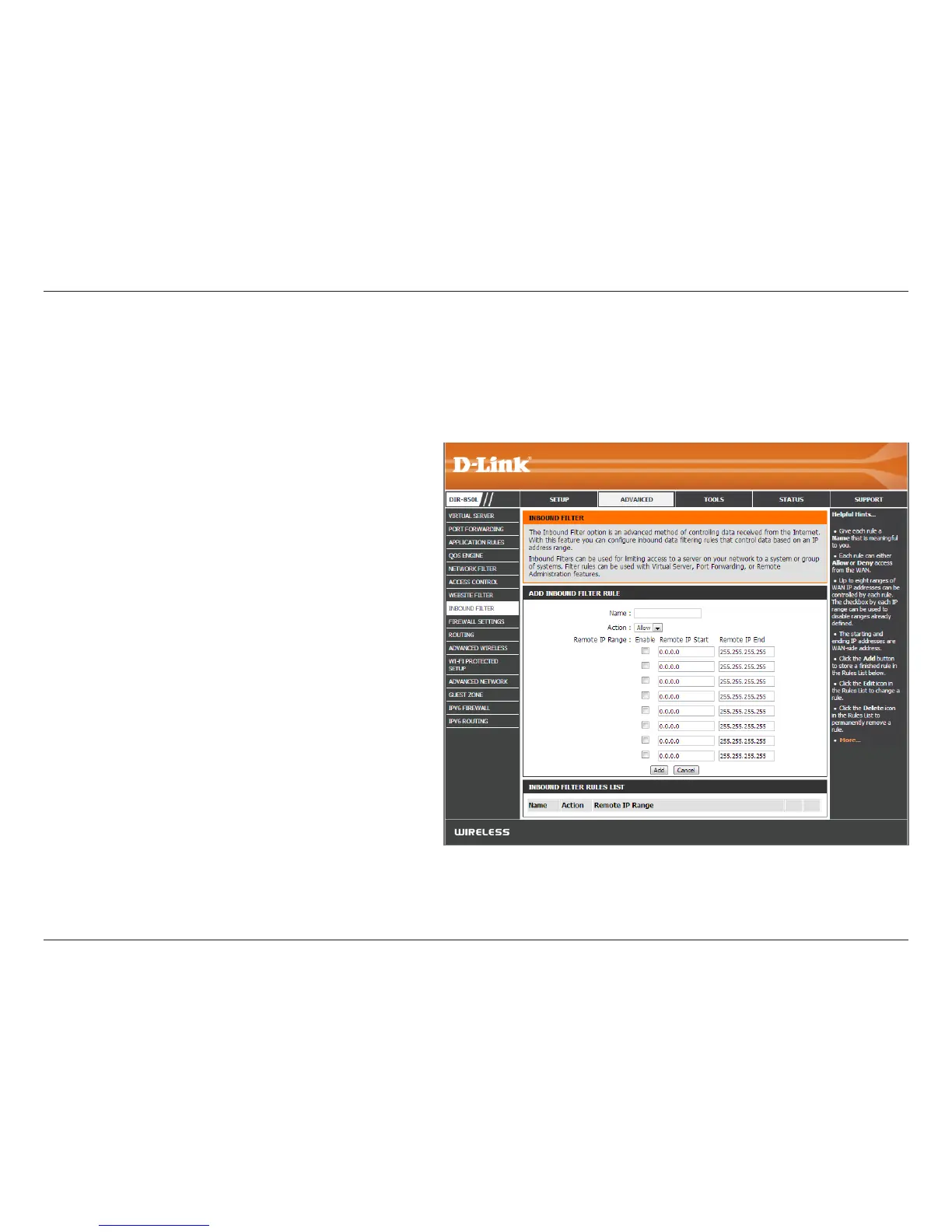

The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can
congure inbound data ltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual
Server, Port Forwarding, or Remote Administration features.
Inbound Filters

D-Link DIR-850L Specifications

Operating Environment

operating temperature	32 ~ 104 °F (0 ~ 40 °C)
non-operating temperature	-4 ~ 149 °F (-20 ~ 65 °C)
operating humidity	10% - 90% non-condensing

Power

input voltage	100~240 V (±20%), 50~60 Hz
output voltage	DC 12 V
output current	2 A

Wireless Specifications

wireless interface 2.4 GHz	IEEE 802.11b/g/n
wireless interface 5 GHz	IEEE 802.11a/n/ac
antenna type	Two dual-band internal antennas (2.4 GHz and 5 GHz)

Weight and Dimensions

dimensions	93 x 116 x 145 mm (3.7 x 4.6 x 5.76 inches)
weight	330 grams (11.6 ounces)
