D-Link DIR-850L User Manual

66D-Link DIR-850L User Manual
Section 3 - Conguration

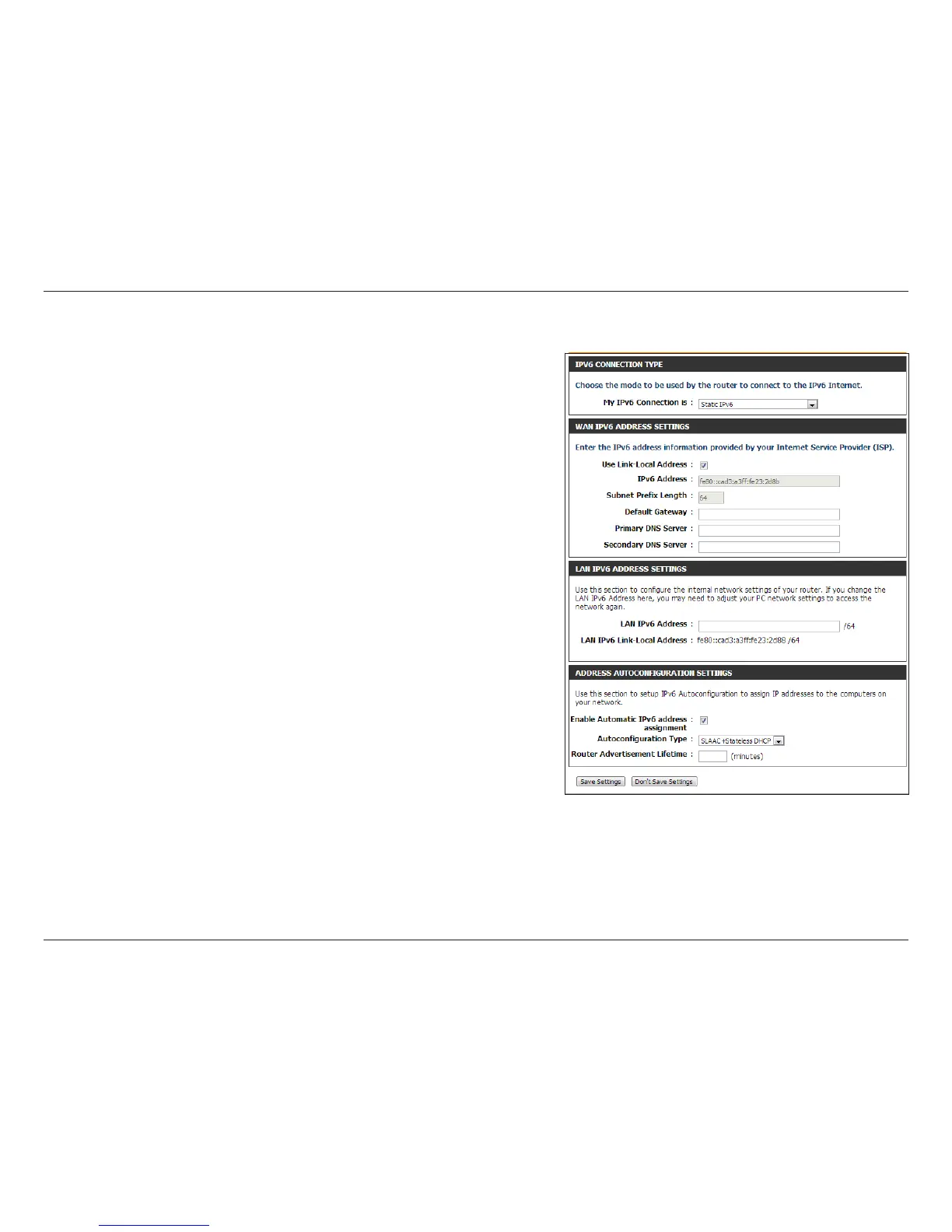

Static IPv6
Select Static IPv6 from the drop-down menu.
Enter the address settings supplied by your Internet provider
(ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC +
Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your
local computers.
Enter the end IPv6 Address for the DHCPv6 range for your
local computers.
Enter the Router Advertisement Lifetime (in minutes).
Click Save Settings.
My IPv6 Connection is:
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN IPv6 Link-Local
Address:
Enable Automatic IPv6
address assignment:
Autoconguration Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
Router Advertisement
Lifetime:

D-Link DIR-850L Specifications

Operating Environment

operating temperature	32 ~ 104 °F (0 ~ 40 °C)
non-operating temperature	-4 ~ 149 °F (-20 ~ 65 °C)
operating humidity	10% - 90% non-condensing

Power

input voltage	100~240 V (±20%), 50~60 Hz
output voltage	DC 12 V
output current	2 A

Wireless Specifications

wireless interface 2.4 GHz	IEEE 802.11b/g/n
wireless interface 5 GHz	IEEE 802.11a/n/ac
antenna type	Two dual-band internal antennas (2.4 GHz and 5 GHz)

Weight and Dimensions

dimensions	93 x 116 x 145 mm (3.7 x 4.6 x 5.76 inches)
weight	330 grams (11.6 ounces)
