D-Link DIR-850L User Manual

52D-Link DIR-850L User Manual
Section 3 - Conguration
This section will allow you to change the local network settings of the router and to congure the DHCP settings.

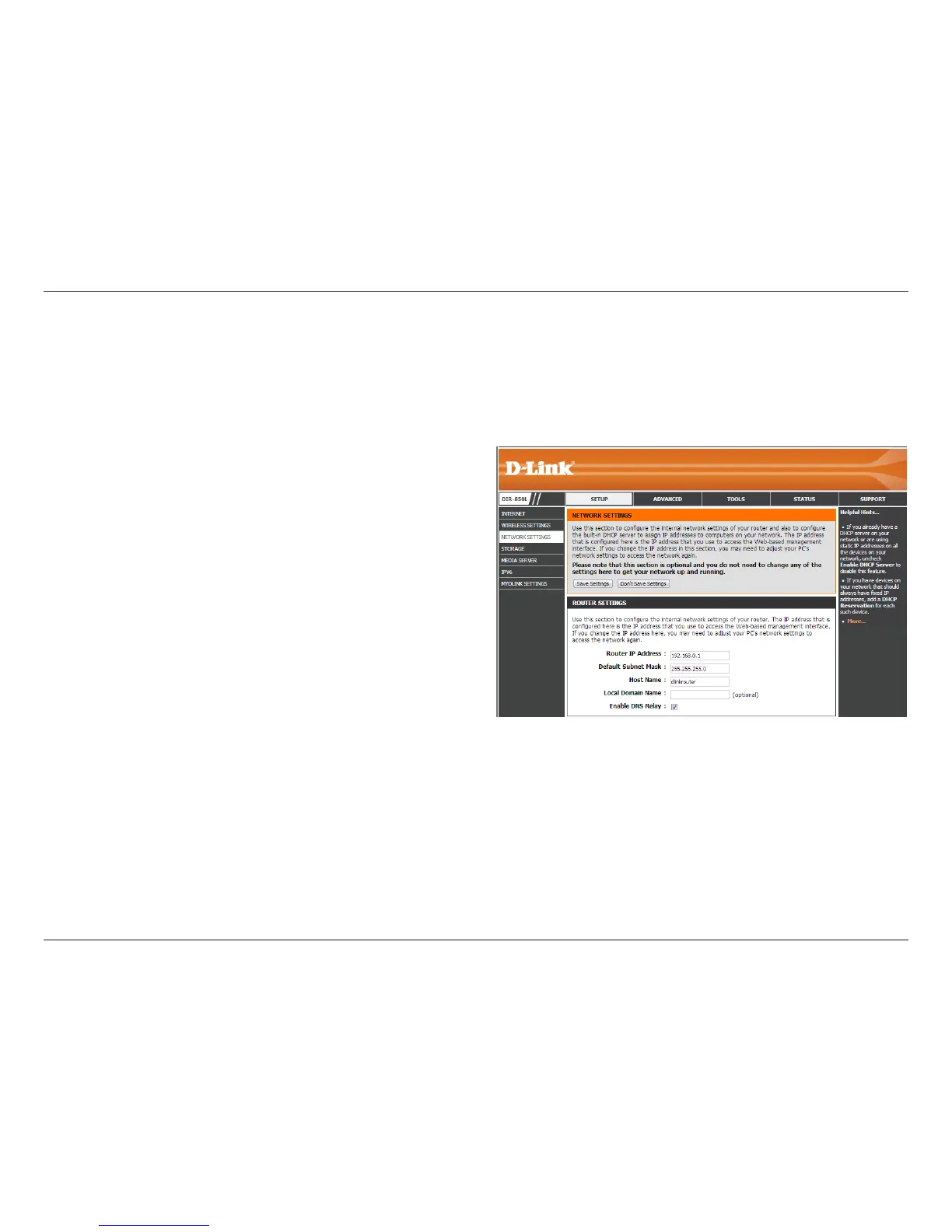

Network Settings
Enter the IP address of the router. The default IP address
is 192.168.0.1.
If you change the IP address, once you click Save Settings,
you will need to enter the new IP address in your browser
to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a name for the router.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information
from your ISP to your computers. If checked, your
computers will use the router for a DNS server.
Router IP Address:
Default Subnet
Mask:
Host Name:
Local Domain
Name:
Enable DNS Relay:
Router Settings

D-Link DIR-850L Specifications

Operating Environment

operating temperature	32 ~ 104 °F (0 ~ 40 °C)
non-operating temperature	-4 ~ 149 °F (-20 ~ 65 °C)
operating humidity	10% - 90% non-condensing

Power

input voltage	100~240 V (±20%), 50~60 Hz
output voltage	DC 12 V
output current	2 A

Wireless Specifications

wireless interface 2.4 GHz	IEEE 802.11b/g/n
wireless interface 5 GHz	IEEE 802.11a/n/ac
antenna type	Two dual-band internal antennas (2.4 GHz and 5 GHz)

Weight and Dimensions

dimensions	93 x 116 x 145 mm (3.7 x 4.6 x 5.76 inches)
weight	330 grams (11.6 ounces)
